Specifications
Brand Name :
Mingrui
Model Number :
Customized reqirement
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
intertional carton box
Material :
95% 97% 99 % Al2O3 ceramic
Feature :
high wear resistant
Custom :
acceptable
Function :
industrial ceramic
Shipping :
DHL EMS UPS FEDEX TNT
OEM :
yes and welcome
Delivery :
15 days
Color :
White, yellow,or customized
Description

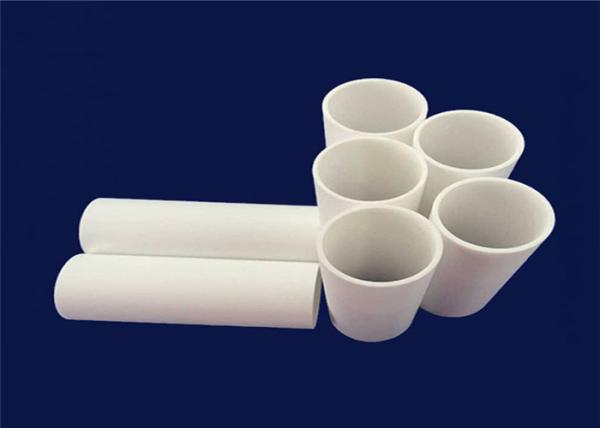

99% High Alumina Ceramic Tubes For Furnace Thermocouple Protection

Features:

1. High hardness.

2. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is

widely used in areas where resistance to high temperatures is essential.

3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.

4. High electrical resistivity : Alumina is an electrically insulating material.

5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and

alkaline solutions.

6 Good chemical stability of alumina leads to high corrosion resistance.

Performance:

Alumina Content Unit 90-96% > 99.5% 99%
General Application High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance Porous, Easily Degassed & Machinable
Porosity % 0-.05 0-.05 Variable
Density gm/cm3 3.55-3.75 3.75-3.95 2.4
Flexural Strength kpsi 40.0-50.0 50.0-55.0 -
Comprehensive Strength kpsi > 300.0 > 300.0 -
Tensile Strength kpsi 20.0-28.0 20.0-28.0 -
Linear Coefficient of Thermal Expansion (cm/cm/°C) 25-300°C 25-700°C 6.3X10-6 7.0X10-6 6.5X10-6 7.5X10-6 6.5X10-67.5X10-6
Dielecctric Constant at 25°C 1 MH 10 MH 9.2-9.8 9.0-9.6 9.5-9.9 9.3-9.7 -
Dielectric Strength Volt/mil 225 225 -
Te Value °F °C > 1832 > 1000 > 1832 > 1000 > 1832 > 1000
Thermal Conductivity at 25°C cal/sec/cm2/cm/°C .04-.06 .07-.08 -
Safe Use Temperature °F °C 3000-3100 1650-1700 3275 1800 3275 1800

Available Sizes

  • ID: 4mm-18mm
  • OD: 6mm-24mm
  • Length: 500mm-1500mm

Available Types

  • Single bore
  • Double bore
  • Closed & open ended
  • Extruded
  • Cast

Alumina Tube Applications

  • Furnace liner tubes
  • Protection tubes
  • Thermocouple protection tubes
  • RTD (resistive thermocouple devices)
  • Electrical stand off insulators
  • Gas laser tubes
  • High temperature electrical insulators
  • Abrasion resistant tube and elbow liners

■PRECISION MACHINED PRODUCTS

99% High Alumina Ceramic Tube For Furnace Thermocouple Protection

* Surface roughness depends on the material. The data shown hear indicates where alumina is used.

Company Introduction:

Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.


FAQ :


1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .

2.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to the product complexity .

3.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.

More photos :

99% High Alumina Ceramic Tube For Furnace Thermocouple Protection99% High Alumina Ceramic Tube For Furnace Thermocouple Protection
