High Precision Ceramic Components 99% Al2o3 Alumina Ceramic Tube Heater
High Precision Ceramic Components 99% Al2o3 Alumina Ceramic Tube Heater
High Precision Ceramic Components 99% Al2o3 Alumina Ceramic Tube Heater
High Precision Ceramic Components 99% Al2o3 Alumina Ceramic Tube Heater
Specifications
Brand Name :
Mingrui
Model Number :
Customized reqirement
Certification :
ISO9001:2015, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
USD 1-20/pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
4000 pieces month
Delivery Time :
10-15 working days after the order confirmed
Packaging Details :
intertional carton box
Material :
99.5% Al2O3 ceramic
Precision :
+- 0.001mm
characteristic :
Wear Resistant, Electrical Insulator, Resist High Temperature
Application :
Industrial Ceramic, Industrial Ceramic
life time :
Long service life
ceramic capstans :
high hardness
Description

High Purity 99.5% Al2O3 Piezo Ceramic Tube, Ceramic Tube Heater

Product Description

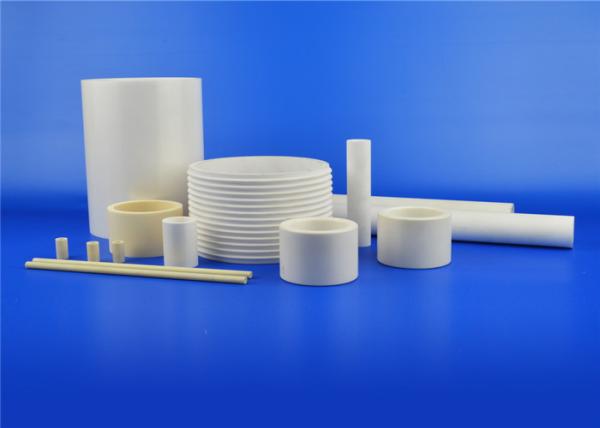

Our industrial ceramic parts include, tube, rod, plate, disc, wafer, ring, seal, bearing, valves, pump plunger,roller, shaft, screw, washer, sleeve, , spacer, holder, insulator, knife , nozzle, guide, frame, lining,,.
These precision toleranced ceramic components or assemblies are used in a wide range of semiconductor, electronic, electrical, mechanical, chemical, automotive, textile and the other industrial engineering applications, due to their extreme hardness, more resistances to wear, heat, corrosion, high electric insulation, and low thermal expansion.

We can supply the products according to customer's drawings, samples and performance requirement.

Application: for refractory furnace or kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings or other mechanical applications

Material data sheet

Properties Unit Alumina Zirconia
96%Al2O3 99%Al2O3 99.5%Al2O3 99.8%Al2O3 99.9%Al2O3 3Y-TZP
Colour - White White Ivory Ivory Translucent white/black
Bulk density g/cc 3.78 3.88 3.93 3.93 3.98 6.03
Water Absorption % 0 0 0 0 0 0
Grain size μm 5-10 2-5 2-5 2-5 2-4 0.4
Bending strength MPa 380 350 360 380 300 1000
KIC MPa.m1/2 3~4 4 3~4 3~4 3~4 5~8
Vickers Hardness GPa 13 14 14.5 14.5 15 13
Young's Modulus of Elasticity GPa 360 370 370 380 390 200
Thermal Conductivity W/m° K 24 28 32 32 34 2
Coefficient of Linear Expansion 10-6/°C 6.7 7.2 7.2 7.2 7.2 10.5
Dielectric Constant (1MHz) - 9.1 9.5 9.6 9.6 9.9 33
Dielectric Loss Angle (1MHz) - 0.0002 0.0001 0.0001 0.0001 0.0001 0.002
Dielectric Strength V/m 15×106 15×106 15×106 15×106 15×106 11×106
Volume Resistivity Ohm.cm >1014 >1014 >1014 >1014 >1014 1013

Quick Details

Place of Origin: ,Guangdong,China (Mainland)
Type: precision ceramic parts
Color: White or Ivory
MOQ: 1 piece
Material: Alumina(Al2O3)Ceramics/Zirconia(ZrO2)Ceramics
Testing Way: Quality Control
Including Shape: Tube, Rod, Plate, Ring and so on
Main products: Precision Alumina & Zirconia Ceramic Tube, Ceramic Rod, Ceramic Plate, Ceramic Ring
Main Properties: Wear Resistant, Electrical Insulator, Resist High Temperature
Practical Application: Semiconductor devices/Medical equipment/Electronics/LED
Main Forming Way: Molding/Sintering/Dry Press/high-temperature sintering/grinding/polishing etc
Samples: Custom-made is acceptable,we can provide free sample when we have the sample in stock
Payment: 30% deposit in advance, the balance paid before shipment.
Payment Terms: T/T, L/C, Paypal
Company Introduction:

Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.


FAQ :


1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .

2.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to the product complexity .

3.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.

More photos :
