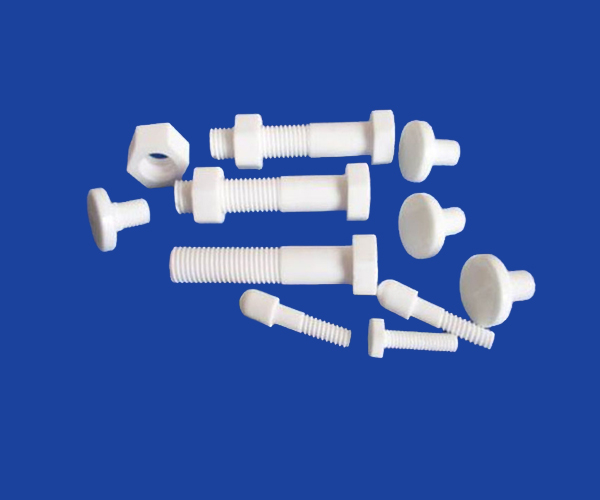

Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance
Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance
Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance
Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance
Specifications
Brand Name :
Mingrui
Model Number :
Customized
Certification :
ISO9001:2015,
Place of Origin :
China
MOQ :
20 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
15-20 working days after the order confirmed
Packaging Details :
wooden case or carton box with foam
standard :
as the drawings
Thermal Shock Resistance :
180 - 220 T(°C)
Tensile Strength :
Excellent
Color :
white
Tech :
hot pressing
Type :
Insulator
Keywords :
ceramic screw insulator
Rated Voltage :
220V
Description

Heat Resistance 95% Alumina Ceramic Screw Insulator Porcelain Parts

Performance
Item Index Unit Steatite ceramic 95 Al2O3 96 Al2O3
Physical Characteristics Bulk density g/cm3 2.7 3.6 3.6
Water absorption % 0 0 0

Mechanical Characteristics		 Flexural strength Mpa 145 320 340
Hardness Vickers Gpa 5.7 12.2 13.5
Elastic modulus Gpa 120 280 320
Poisson’s ratio - 0.21 0.22 0.23
Thermal Characteristics Linear expansion coefficient 20-5000C 10-6/0C 7.9 7.1 7.2
Thermal conductivity w/(m.k) 2.5 16 24
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78
Electrical Characteristics Dielectric constant(1MHZ) - 6.2 9 9.4
Dielectric loss angle *10-4 18 15 5
Dielectric strength *106V/m 18 12 15

Advantage:

1). Excellent insulation, security.

2). Excellent high pressure resistance

3). Corrosion resistance

Main Applications:

1). Shaft, Plunger

2). High-pressure cleaning machines

3). Sealing structure

4). Auto mobile industry

5). Oil drilling equipment

6). Insulation parts in electrical equipment

7). Ceramic knife

8). Ceramic hair clipper spare parts

Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance

Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance

Factory Shows:

Screw Insulator Porcelain 95% Alumina Ceramic Parts Heat Resistance

Company Introduction:

Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.


In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.


Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question, pls feel free to contact us .
