Specifications
Brand Name :
Mingrui
Model Number :
Customer Requirement
Certification :
ISO9001-2015,
Place of Origin :
China
MOQ :
1 pieces
Price :
USD1.21-5.16
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
intertional carton box
Type :
Insulating ceramics
material :
alumina , zirconia , silicone nitride
corrosion resistant :
high
Density :
3.65- 6.0 g/cm3
Water Absorption :
0%
Size :
Customers' Requests
application :
auto welding
Description

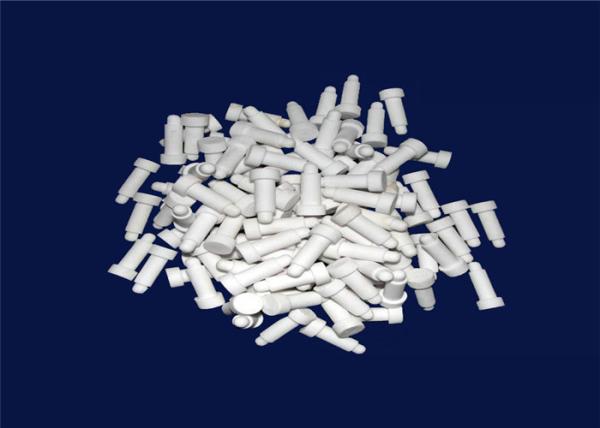

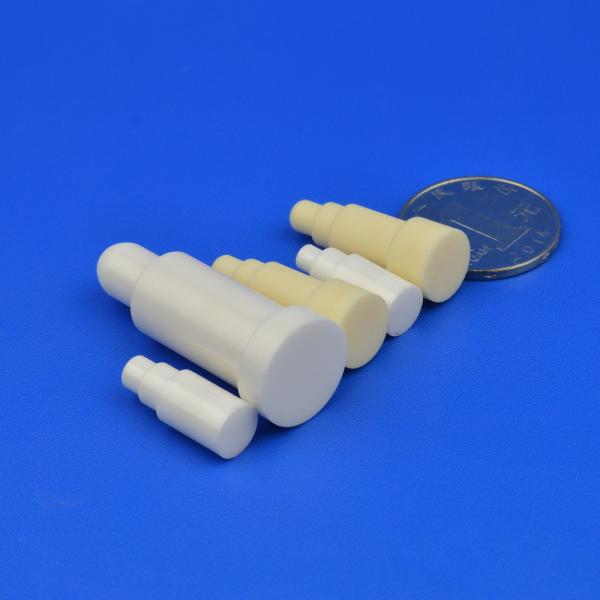

High Hardness Zro2 Ceramic Zirconia Guiding Ceramic Needle Welding Pins

Product Description

Features

zro2 ceramic zirconia guiding welding pins

1.Use temperatures up to 2400°

2. High density

3. High hardness

4. Low thermal conductivity

5. Chemical inertness

6. Resistance to molten metals

7. Good Wear resistance

8. High fracture toughness

zro2 ceramic zirconia guiding welding pins

Zirconia ceramic are used in shaft , plunger, sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.

Performance For Industrial Ceramic
Item Unit Zirconia
Physical Characteristics Heat resistance 0C 2200
Bulk density g/cm3 6.05

Water

absorption

% 0

Mechanical Characteristics
Flexural strength Mpa 1000
Hardness vickers Gpa 89
Elastic modulus Gpa 200
Poisson’s ratio 0.31
Thermal Characteristics Linear expansion coefficient (20-5000C) 10-6/0C 10
Thermal conductivity w/(m.k) 2.5
Specific Heat *10-3J/(kg*K) 0.5
Electrical Characteristics Dielectric constant (1MHZ) - N.A.
Dielectric loss angle *10-4 N.A.
Dielectric strength *106V/m N.A.
Processing technology
Process range (mm)
Outside Diameter 1---300
Inside Diameter 0.5---300
Length 0.5---1200
Accuracy of working (mm)
Perpendicularity 0.01
Concentricity 0.01
Roundness 0.005
Straightness 0.005
Parallelism 0.01
Planeness 0.005
Roughness 0.05
Fit clearance 0.005

We can supply the products according to customer's drawings, samples and performance requirement.

precison ceramic, precision ziconia ceramic, zirconia, ceramic part, ceramic structure, zirconia ceramic shaft sleeve pipe roller tube, zirconia ceramic shaft piston and gear, Zirconia ceramic rod, machinable ceramic rod for industry

zro2 ceramic zirconia guiding welding pins

Typically, locating pins are used for controlled, fine tolerance positioning of a work piece. For example, a pallet that is moved along one axis, where the drive mechanism is not accurate and stable enough to place it in a position sufficiently accurate to execute a particular process, the use of locating pins may be the best solution. Usually two locating pins are enough to properly locate the work piece on one plane.

Mingrui Ceramic now offers a full line of standard and custom-made ceramic locating and welding pins. Advanced ceramics, which ensure a perfect fit for sheet metal and nuts and are subjected to temperatures of up to 600 °c, have long replaced metal in the production of welding pins. Metal cannot compete with ceramics with regard to insulating properties, resistance to temperature change, and minimal wear and tear due to the high degree of hardness and durability. Yet another advantage of ceramics is their smooth polished surface, which prevents welding spatter from adhering.


Company Introduction:
Mingrui ceramic manufacture and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.

Mingrui Ceramics has years of experience designing and developing technical ceramic solutions for a wide variety of applications and industries.Wear And Corrosion Resistant Ceramic Shaft Chemical Stirring Rod. We offer this expertise to all of our customers to ensure the best design and materials are chosen for their specific application and needs.Wear And Corrosion Resistant Ceramic Shaft Chemical Stirring Rod,Typically, our custom technical ceramic components and parts we supply are used for one of three main reasons:
FAQ :
Q1: What are advanced ceramics?

>>> Advanced ceramics - also referred to as engineering, structural or technical ceramics - have been processed to be very pure and, in general, have superior properties to unrefined ceramics. Many are man-made, i.e. they do not occur naturally, e.g. silicon nitride, and their properties can be enhanced to produce very high strength at high temperatures, good corrosion resistance, etc.

Q2: What types of ceramic do you supply?
>>> Alumina in purity from 90% to 99.7%, yttria stabilized zirconia (Y-PSZ), hot pressed boron nitride, machinable glass ceramic, boron carbide, silicon nitride, mullite and cordierite.

Q3: Can I machine the ceramics myself?
>>> The harder ceramics like alumna and zirconia will require diamond tooling but other materials like Machinable Glass Ceramic and Hot Pressed Boron Nitride can be machined. To get the right result it does take time, experience and semi-specialised tooling but it can be done and many of our customers take advantage of this when they need extremely fast solutions in-house.

Q4: Can I get a sample or purchase a small quantity?
>>> Yes, we are happy to supply small samples of material for you to test. We can also supply prototype quantities through to volume production to suit your needs.

Q5: How long will it take for you to send me a quote?
>>> This depends totally on the complexity of your requirements. For simple items such as bars and rods, we can generally supply a quotation within 24 hours.

Q6: What's the delivery time?
>>> For our standard products, like ceramic protection tubes and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30 working days.

MORE PRODUCTS:

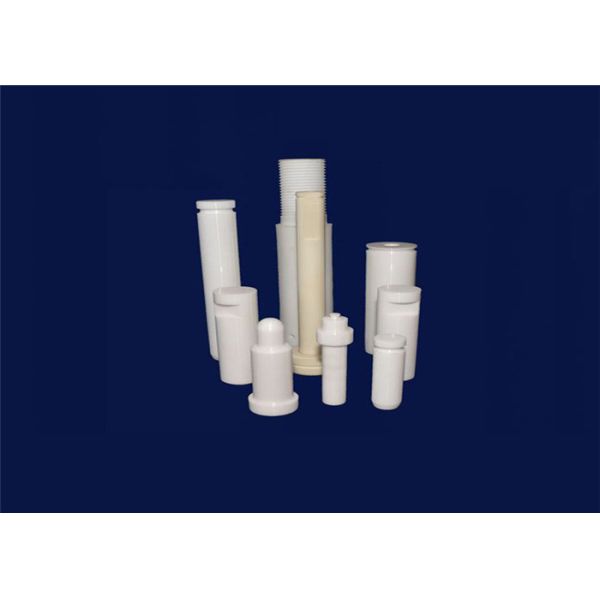

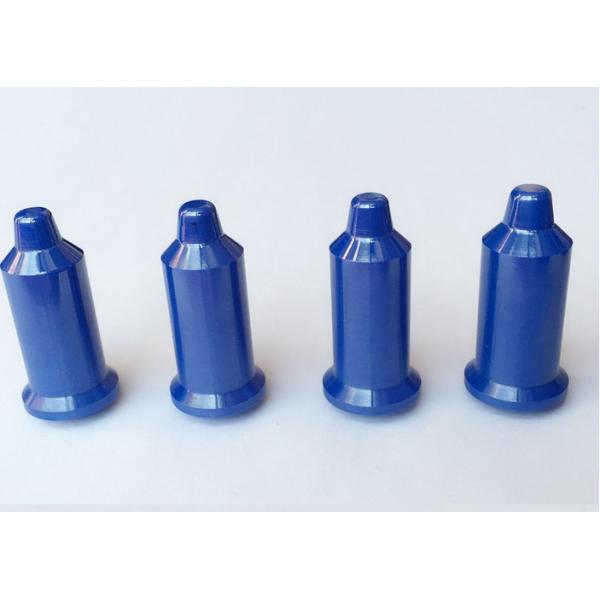

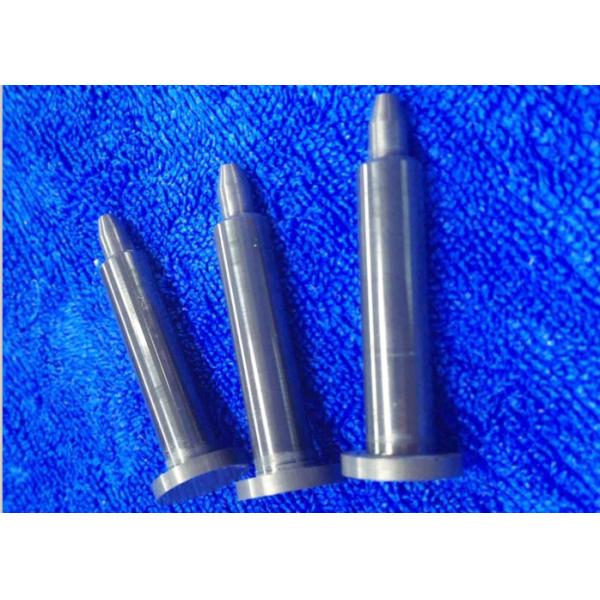

High Hardness Zro2 Ceramic Zirconia Guiding Needle Welding Pin 3.65 - 6.0 g/cm3 Density
