Specifications
Brand Name :
Mingrui
Model Number :
XF-315
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
intertional carton box
Name :
ceramic Disc Plates
Application :
ceramic disc
Material :
99 alumina ceramic
Feature :
High Purity Alumina Ceramic Plate
Size :
Custom according to your drawings
MOQ :
1PCS
Shipping :
DHL EMS UPS FEDEX TNT
Type :
alumina ceramic plate
OEM :
yes and welcome
Delivery :
10 days
Description

Machinable Zirconia And Custom High Purity Alumina Ceramic Disc Plates With Hole

Description:
Alumina ceramic plates can withstand high temperature and maintain high strength and hardness. Alumina plates also have superb performances in electrical insulation, high chemical resistance and low thermal expansion. We have various sizes of semi finished shapes in stock and are able to conduct custom manufacturing for all kinds of alumina components.

Applications:
• Alumina plates are hard enough to become armor for personnel or vehicles.
• The corrosion resistivity of alumina plates makes them a great material for chemical industry.
• Used as a material for industrial furnaces due to its ability to maintain its hardness at high temperatures.
• Used for making parts for CVD, ion implants, photolithography, and semiconductor parts.
• In traditional industries, alumina ceramics are ideal for products such as injector tubes, gas nozzles and insulators.

Machinable Zirconia And Custom High Purity Alumina Ceramic Disc Plates With Hole

Typical properties for common materials of alumina plates

Composition UNIT AL60 AL95 AL98
AL2O3 content % 96 99.5 99.8
Color White Ivory Ivory
Tensile strength Kpsi 32 38 36
Flexural strength Kpsi 52 55 54
Compressive strength Kpsi 300 377 350
Density g/cc 3.70 3.90 3.92
Hardness HV, GPa 13.8 17.2 18
Thermal Conductivity W/(m K) 25 30 30
C.O.T.E. In / In°C (x10^-6) 7.7 7.8 7.8
Working temperature °C 1500 1650 1750
Dielectric Constant 9.5 9.7 9.8
Volume Resistivity (25°C) Ohm-cm >10^14 >10^14 >10^14

*This chart just demonstrates the typical properties of common alumina materials we use to produce our alumina parts. Please notice that the property for customized alumina parts could vary due to different process. Stanford Advanced Materials could provide alumina products produced under your specified instruction, or do the best to meet customers’ requirements.

Machinable Zirconia And Custom High Purity Alumina Ceramic Disc Plates With Hole

​Alumina Ceramic Plate Specifications
1. alumina
2. Very small and very large size can be made
3. High temperature, good abrasive.

Refractory alumina ceramic substrate/ceramic plate is our main product.Misson can supply high quality alumina plates with competitive prices.

Very small and very large sized plates can be made.

Fine grinding can made tight tolerance.

High temperature and abrasive resistance is good

Machinable Zirconia And Custom High Purity Alumina Ceramic Disc Plates With Hole

Properties of Alumina and Zirconia Ceramic :
Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252

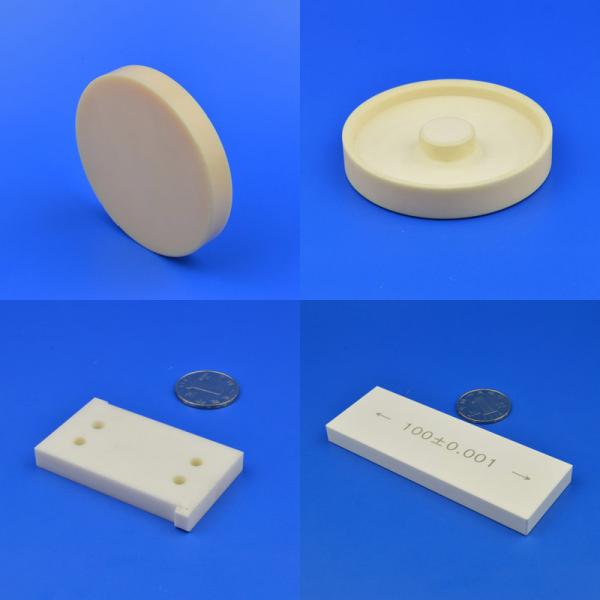

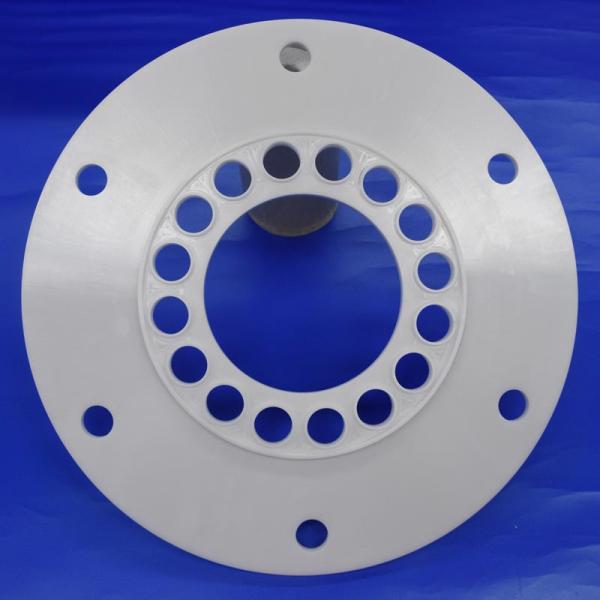

photos of ceramic sheet :
Machinable Zirconia And Custom High Purity Alumina Ceramic Disc Plates With Hole
Machinable Zirconia And Custom High Purity Alumina Ceramic Disc Plates With Hole

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
