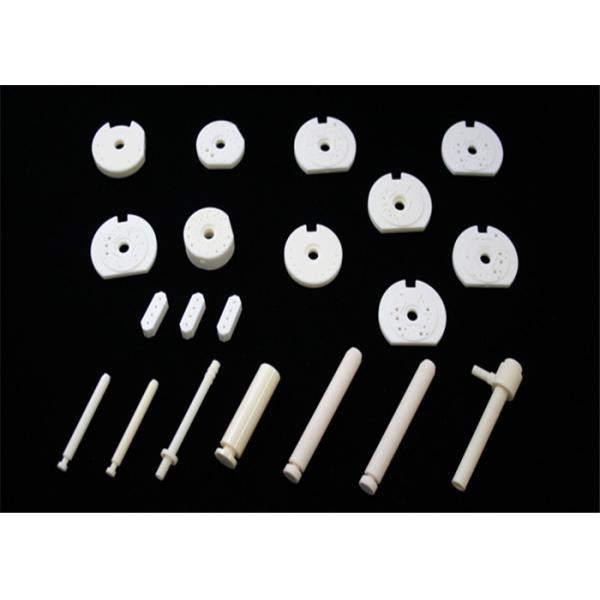

Precision Ceramic Valve Components Shear Valve with High Flatness
Precision Ceramic Valve Components Shear Valve with High Flatness
Specifications
Brand Name :
Mingrui
Model Number :
XF-323
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces per month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
Export protective packing
Name :
ceramic shear valve
Application :
ceramic valve components
Material :
zirconia or alumina
Feature :
high flatness
Size :
Custom
MOQ :
1 PCS
Shipping :
DHL EMS UPS FEDEX TNT
Type :
Industrial Ceramics
OEM :
yes and welcome
Delivery :
10 days
Description

Precision Ceramic Valve Components Ceramic Shear Valve with High Flatness

Name Material Color Application Characteristics Machining Difficulty
Shear valve

high

purity

alumina

 yellow

wear resistant,anti-corrosion,

tightness,water resistant

Requires high flatness,parallelism,

roughness, and small hole position,

high precision
Sample needle zirconia white

biocompatibility,wear resistant,

anti corrosion, water resistant

long&thin hole,inner hole roughness,

requires high concentricity
Jet Pipe zirconia white
Piston

zirconia

,

alumina

white,

yellow

tightness,wear resistant,anti

corrosion, water resistant

requires high surface roughness

and cylindricity
Syringe zirconia white

requires high inner hole cylindricity

and roughness
Ceramic knife zirconia white

wear resistant, high hardness,

sharp edge

 small size,high precision

Unique chosen material,high wear resistance and corrosion resistance aluminum oxide ceramic.Surface shape machining micro waveness strictly controlled. Hole diameter is small but many,the smallest one is 0.4mm. The depth of thin hole reaches 5mm. Postion tolerance requirement is high,the accuracy reaches 0.02mm.

With consummate production technique and advanced equipment, Suntech Advanced Ceramics is able to offer you high quality and high precision alumina or zirconia ceramic shear valve products which are heat-resistant, hard-wearing and anti-corrosion. They are all on sale now. Come and wholesale cheap ceramic shear valve from our factory.

Hot Tags: ceramic shear valve China, manufacturers, factory, wholesale, cheap, zirconia, alumina

For medical equipment and analyzers, Nishimura Advanced Ceramics uses highly refined, highly pure fine alumina powder. Using the advanced processing facilities in its environmentally controlled processing rooms, we manufacture ceramic products under a thorough quality control system. These products satisfy all requirements for medical equipment and analyzers.

Mingrui Advanced Ceramics guarantees the quality of delivered products with strict requirements on high precision, no impurities, surface roughness control, abrasion resistance, etc.

Mingrui Advanced Ceramics proposes the use of zircon ceramics, zircon cordierite ceramics, and cordierite ceramics for power supply devices and insulators because these ceramics have high insulation, heat shock resistance, and pressure capacity.

Zircon cordierite is a self-glazing ceramic, and one of the ceramic materials developed by Nishimura Advanced Ceramics to satisfy the requirements for power supply devices and insulators, by blending cordierite with a low thermal expansion rate with highly heat-resistant zircon according to Nishimura Advanced Ceramic’s original formula.

It is strong and resistant to quick heating and cooling.

Industrial Ceramics include:

  • Ceramic Wafer Lift Pins
  • End Effectors
  • Ceramic Orings & Liners
  • Ceramic Rods & Tubes

Ceramic Machining Capabilities:

  • Reverse Engineering
  • Product Design and Redesign
  • Repair of Ceramic Components
  • Quick Turnaround

Our technical ceramic capabilities include precision grinding and lapping for high-performance semiconductor grade ceramic materials such as: aluminum oxide ceramic (99.5% or 99.8% alumina), silicon carbide (CVD, sintered, or hot pressed SiC), aluminum nitride (AlN), and electrostatic discharge safe (ESD) ceramics.

Technical ceramic materials offer:

  • Superior wear and durability
  • Corrosion resistance
  • Extraordinary rigidity
  • Outstanding electrical and thermal industrial properties

Properties sheet of Alumina and zirconia :

Characteristics Unit 95 Al2O3 99 Al2O3 ZrO2
Crystal Structure - hexagonal hexagonal tetragonal
Color - white ivory white
Density g/cm3 3.65 3.88 5.95
Water Absorption % 0 0 0
Young's Modulus Gpa 280 350 205
Vickers Hardness Gpa 14 20 12
Flexural Strength Mpa 280 300 900
Compressive Strength Mpa 2000 2500 2200
Thermal Conductivity W/(m·k) 18-25 30 2.2
Thermal shock resistance Δ(℃) 220 180-200 280-350
Max. Working Temperature ℃ 1500 1700 850
Volume Resistivity Ω·cm >10^15 >10^14 >10^12
Dielectric Constant (1 MHz ) - 9.5 9.8 26
Dielectric Strength kV/mm 16 22 -

Mingrui Ceramics provide advanced ceramics on critical wear surfaces of valve plugs to maximize service life.

Company Introduction :

Dongguan Mingrui Ceramic Technology Co., Ltd. is a professional manufacturer specialized in high precision zirconia and alumina ceramic parts. Our main products include ceramic rod, tube, plunger, ceramic valve, ceramic plate, ceramic shaft and bearing, ceramic nozzle etc.. They are mainly used in industrial fields of machinery components, petrochemical oil and gas, photo-voltaic equipment, valves, automotive, fluid handling, E-cigarette, etc.. Our service includes mold design and development, ceramic forming, sintering, precision machining and precision detection technology. Our products have been widely exported to many countries in Europe, America, Middle East, Southeast Asia, South Asia, etc..

FAQ :

1. What kind of industry ceramics do you have?

We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts.

2. What kind of molding method can you supply?

Dry Pressing, isostatic pressing, grouting, hot-chamber die casting, tape casting, injection molding, etc, injection molding and isostatic molding is the most commonly used.

3.What stabilizer do you use when processing?

Yttria stabilizer is the most commonly used in our industrial ceramic parts.

4.Can you produce free samples for me?

Yes usually, we can produce free samples for you but it is up to the product complexity .

5.What terms can you accept for payment?

T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small-sum payment.

More Product Photos :

Precision Ceramic Valve Components Shear Valve with High Flatness

Our factory Machinery show :

Precision Ceramic Valve Components Shear Valve with High Flatness
