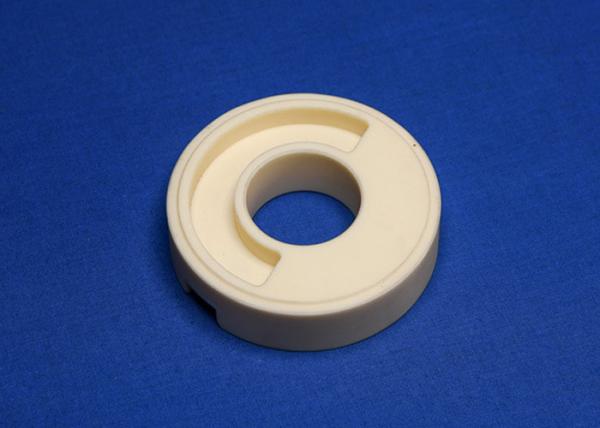

High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
High Voltage Insulating 0.02mm Alumina Ceramic Insulator
Specifications
Brand Name :
Mingrui
Model Number :
MR-IN-0667
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces month
Delivery Time :
23 working days after the order confirmed
Packaging Details :
intertional carton box
Material :
Ceramic
Dimension :
according your request
technology :
machining oem
standard :
International Standard or as your request
MOQ :
5PCS
Shipping :
DHL EMS UPS FEDEX TNT
Item :
Chemically Resistant Industrial Ceramic Parts Petroleum Industry Equipment
Description

High voltage insulating Ceramic Parts alumina 99 ceramic insulator polishing ceramics


Customization & Machining Service:
As a ceramic plates manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL.

Our Custom Capabilities:
1.High Purity Martoxid Powder
2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
3.35000 ㎡workshop, annual output could reach hundred million pieces.
4.All crafts are inspected strictly based on drawings,checked each month.
5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.

zppd_Company_Profile-_Dongguan_Mingrui_Ceramic_1-a...

Technical reference of manufacture
Dimensional accuracy Up to 0.001mm
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum 0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Precision process CNC maching,grinding,lapping
Surface finish Glazed,polishing or metallized

High Voltage Insulating 0.02mm Alumina Ceramic InsulatorHigh Voltage Insulating 0.02mm Alumina Ceramic InsulatorHigh Voltage Insulating 0.02mm Alumina Ceramic InsulatorHigh Voltage Insulating 0.02mm Alumina Ceramic Insulator

Do not find similar ceramic products on this page?
For more detail of ceramic products like price,shipping,samples...
Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

Feature:
1). High hardness and High density
2). Low thermal conductivity
3). Chemical inertness
4). Good Wear resistance
5). High fracture toughness
6). Good insulation performance
7). High temperature resistance

8)A variety of specifications available.

9) Satisfy various technical request

10) Lower medium spoilage

11) Good insulation performance and high temperature resistance

12) Stiffness texture

13) Used in all electric products and electric heating products

14) OEM, ODM and OBM are welcomed

Name of the materials 99% aluminium oxide 95% aluminium oxide Zirconia
Main ingredients 99% Al2O3 95% Al2O3 ZrO2
The material properties Density g/cm3 3.9 3.6 6
sintering temperature ℃ 1700 1680 1600
physical property Hardness HV 1700 1500 1300
rupture strength kgf/cm2 3500 3000 11000
compressive strength kgf/cm2 30000 25000 25000
fracture toughness Mpa.m3/2 4 3-4 3-4
thermodynamic property maximum servise temperature ℃ 1500 1450 1300
Heat resisting impact T(℃) 200 220 360
pyroconductivity w/m.k 31.4 25 3
(25℃-300℃) 15.9 14 14
Appliance property Volume Resistance /20℃ Ω/cm2 >1012 >1012 >1012
Volume Resistance /100℃ 1012-1013 1012-1013 1012-1013
Volume Resistance /300℃ >1012 >1012 5x109
Dielectric Strength kv/mm 18 18 18
Dielectric constant(100MHZ) (E) 10 9.5 9.5
Dielectric tangent (tgδ) 0.4x10-3 0.4x10-3 0.4x10-3
We can supply the products according to customer's drawings, samples and performance requirement.

All our products are manufactured with precision.

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
