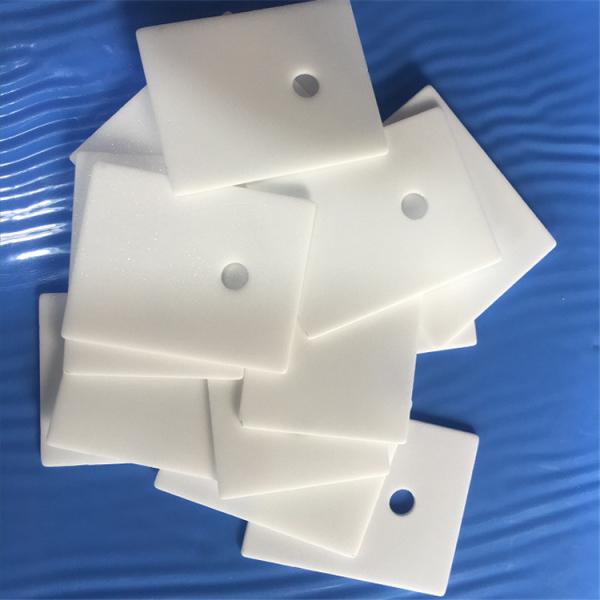

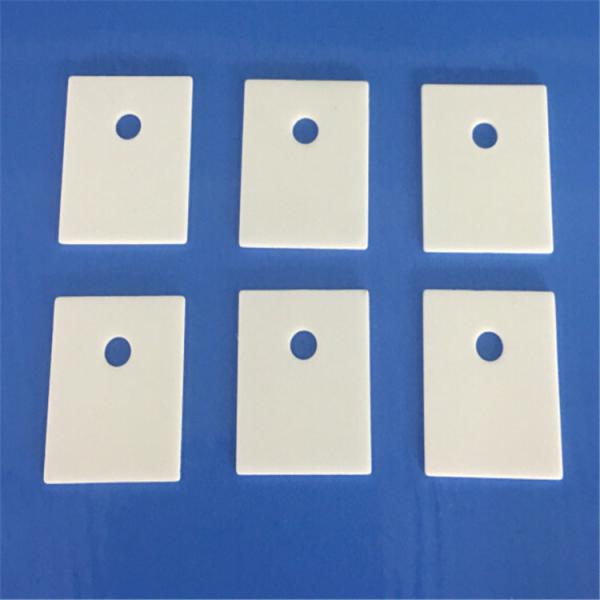

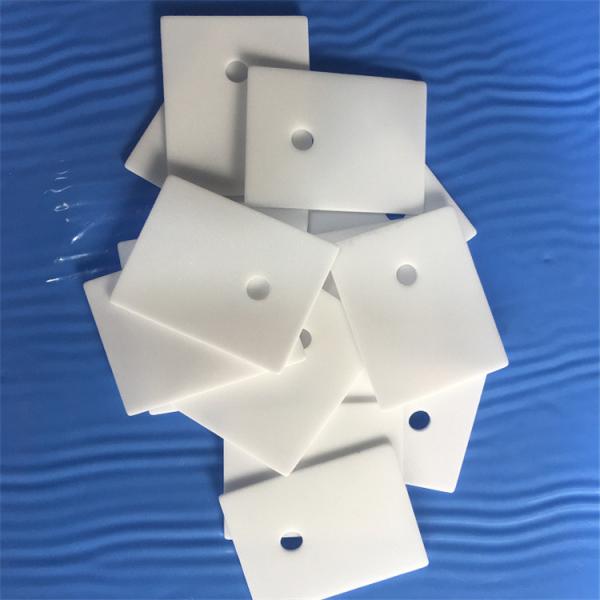

Thermal Shock Insulating 99.99% Alumina Ceramic Plate
Thermal Shock Insulating 99.99% Alumina Ceramic Plate
Thermal Shock Insulating 99.99% Alumina Ceramic Plate
Thermal Shock Insulating 99.99% Alumina Ceramic Plate
Thermal Shock Insulating 99.99% Alumina Ceramic Plate
Thermal Shock Insulating 99.99% Alumina Ceramic Plate
Specifications
Brand Name :
Mingrui
Model Number :
XF-145
Certification :
ISO9001-2005
Place of Origin :
China
MOQ :
1 pieces
Price :
USD1.21-5.16
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
intertional carton box
Material :
custom high Alumina
function :
thermal shock
material :
alumina ceramic
MOQ :
1 PCS
Delivery :
7 days
Shipping :
DHL EMS UPS FEDEX TNT
OEM :
welcome
Machinable :
yes
Description

Customized alumina plate thermal shock insulating 95%--99.99% alumina ceramic plate sheet piece

Description:

Alumina ceramic sheet is mainly used in high-power equipment, IC MOS tube, IGBT SMT thermal insulation, high-frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other products that need thermal thermal insulation.

Thermal Shock Insulating 99.99% Alumina Ceramic Plate

Do not find similar ceramic products on this page?
For more detail of ceramic products like price,shipping,samples...
Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

Alumina can be produced in a range of purities with additives designed to enhance properties. A wide variety of ceramic processing methods can be applied including machining or net shape forming to produce a wide variety of sizes and shapes of component. In addition, it can be readily joined to metals or other ceramics using metallising and brazing techniques.

Typical alumina characteristics include:

Good strength and stiffness

Good hardness and wear resistance

Good corrosion resistance

Good thermal stability

Excellent dielectric properties (from DC to GHz frequencies)

Low dielectric constant

Low loss tangent

Typical alumina applications include:

Seal rings

Medical prostheses

Laser tubes

Electronic substrates

Ballistic armour

Thermocouple tubes

Electrical insulators

Grinding media

Threadguides

Wear components

Thermal Shock Insulating 99.99% Alumina Ceramic PlateThermal Shock Insulating 99.99% Alumina Ceramic PlateThermal Shock Insulating 99.99% Alumina Ceramic Plate
Properties of Alumina Ceramic tubes :
Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252

Features & Benefits:

The best electronic insulation and avoid the breeding of EMI problems Light weight book, high surface area, good heat radiation, no heat, heat fast Resistant to cold and heat shock, easy to install, no long-term preservation of the quality problem.

Typical Applications:

1. LED: backlight module
2. TV: Thin LCD TV set top box
3. Network equipment: AP, Router, ADSL, Modern, S / W, STB Information Technology: M / B, NB, Video, Card
4. Memory: DDR3-DIMM, SO-DIMM, SSD
5. Power: Power module, power transistor

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
