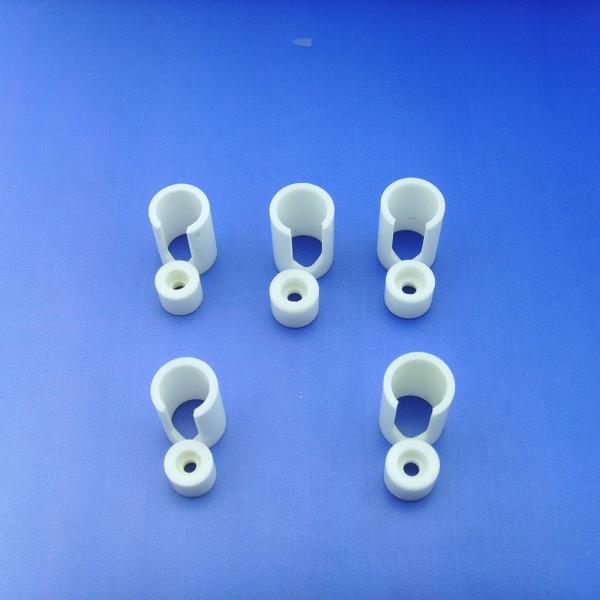

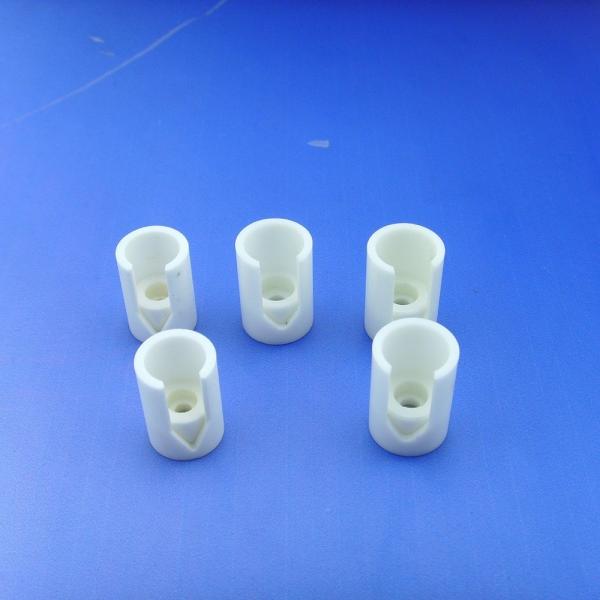

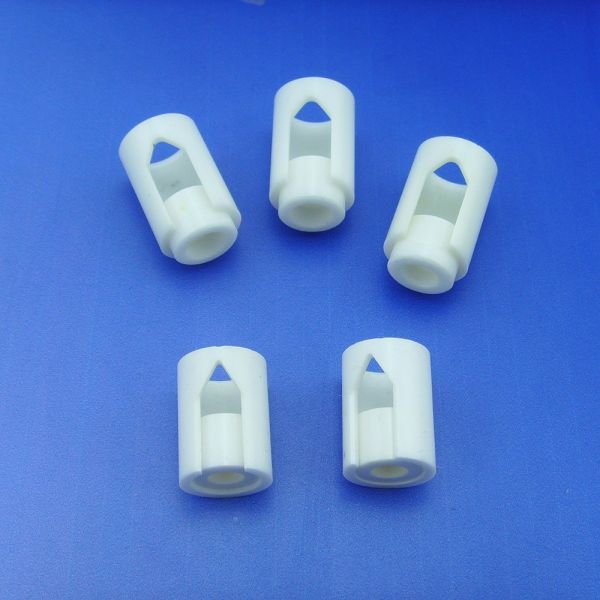

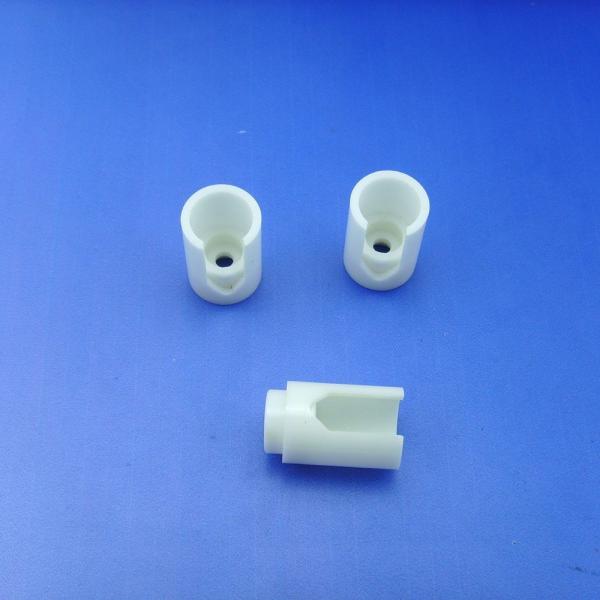

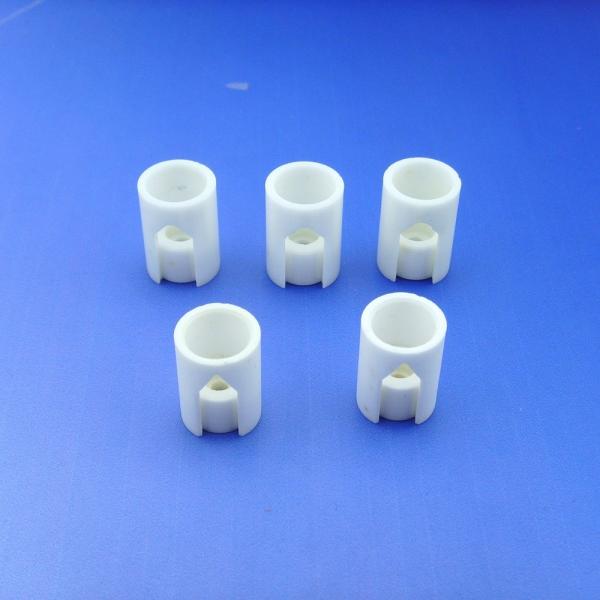

Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve
Specifications
Brand Name :
oem
Certification :
DIN43724/DIN43725/DIN40680
Place of Origin :
china
MOQ :
1 qty
Price :
dollar 2-6
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 per/month
Delivery Time :
5-8 working day
Packaging Details :
wooden box
Features :
Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Material :
Zirconia Ceramic, Zirconia
Application :
Industrial Ceramic,Structure Ceramic,thermocouple protection tube,Wear resistant,Knitting Spare Part
Shape :
square,oval,rectangular,Round
Tolerance :
±0.05mm,can be polished,As customer's drawing
Description

Zirconia Bushing Parts Custom Yttria Stabilized Zirconia Ceramic Bushing/Sleeves

Zirconium oxide is mainly composed of zirconium dioxide. At room temperature, it is a material with high mechanical strength and strong fracture toughness among all major precision ceramics. It can be used to make cutting blades, scissors and knives. Thanks to its excellent surface smoothness, the material can also be applied to pump components. Compared to alumina, zirconia has superior mechanical properties, strength and fracture toughness. It can also be used in milling machines, sliding parts and cutting blades. Zirconium oxide has excellent heat insulation and its thermal conductivity is less than one tenth of the thermal conductivity of other ceramics
zppd_Company_Profile-_Dongguan_Mingrui_Ceramic_1-a...
Zirconia ceramic properties:
• Low thermal conductivity
• High density
• Chemical inertness
• Resistance to molten metals
• Wear resistance
• High fracture toughness

Typical Uses
• Precision ball valve balls and seats
• Deep well down-hole valves and seats
• Rollers and guides for metal tube forming
• Hot metal extrusion dies
• Marine pump seals and shaft guides
• Oxygen sensors
• Fuel cell membranes Ballistic armor

Laser Machining Stabilized Yttria Zirconia Ceramic Sleeve

Do not find similar ceramic products on this page?

For more detail of ceramic products like price,shipping,samples...

Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks


Manufacturing Options		 Advanced Finishing Services

Injection molding
Precision grinding and lapping
Roll compacting Laser machining
Extruding Engineering design and support
Co-firing Metallizing
Isostatic pressing Ceramic-to-metal brazing
Dry pressing Specialized coatings
Hot pressing Threaded components
Tape casting Precision motion components
Slip casting Complex clean room assemblies

Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252

Laser Machining Stabilized Yttria Zirconia Ceramic SleeveLaser Machining Stabilized Yttria Zirconia Ceramic SleeveLaser Machining Stabilized Yttria Zirconia Ceramic SleeveLaser Machining Stabilized Yttria Zirconia Ceramic Sleeve

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
