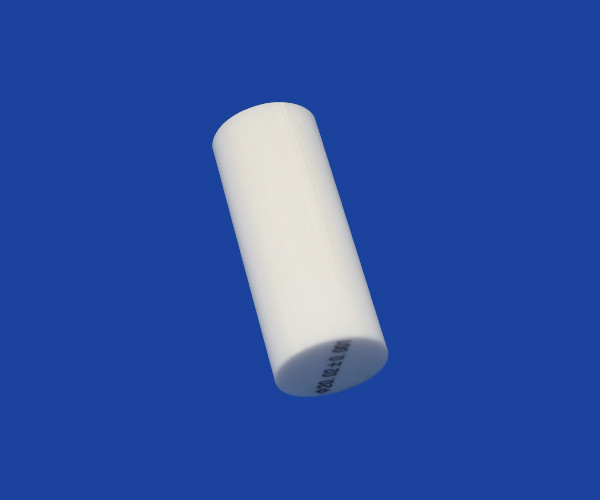

Insulating Caps 2500mm 95% Alumina Ceramic Parts
Insulating Caps 2500mm 95% Alumina Ceramic Parts
Insulating Caps 2500mm 95% Alumina Ceramic Parts
Insulating Caps 2500mm 95% Alumina Ceramic Parts
Insulating Caps 2500mm 95% Alumina Ceramic Parts
Insulating Caps 2500mm 95% Alumina Ceramic Parts
Specifications
Brand Name :
oem
Certification :
iso
Place of Origin :
china
MOQ :
1 qty
Price :
dollar 2-6
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 per/month
Delivery Time :
5-8 working day
Packaging Details :
wooden box
Material :
95%-99.99% Alumina(Al2O3)
Features :
Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Precision :
Ra 0.1um tolerance: 0.001mm... etc
User industries :
all industry
Description

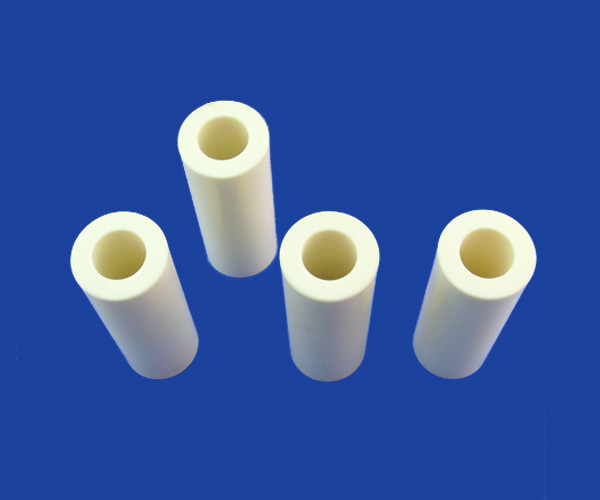

high precision insulating ceramic caps 95% alumina ceramic for ignitor pin

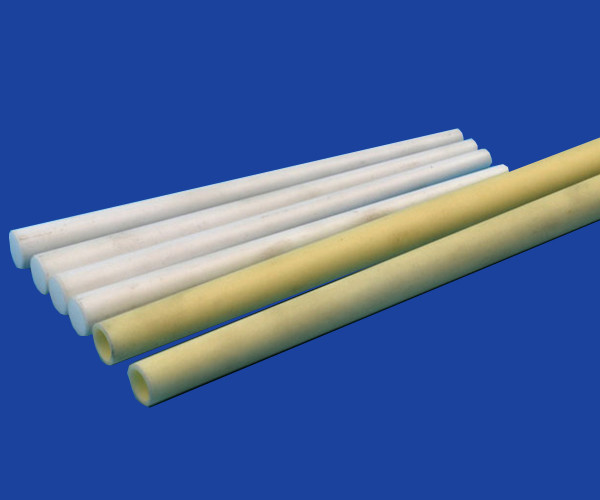

Ceramic alumina tube , alumina content 60%- 99.7%,White or Ivory ,Wear-resisting and acidproof alkali corrosion , High temperature (1600-1700 degree centigrade). Good chemical stability,high insulation, strong adsorption capacity, is a nice electrical insulation and wear-resisting material.

Application : Widely used in lamps and lanterns, electronic appliances, blast nozzle, auto parts, wear-resistant parts of insulating material, etc

Do not find similar ceramic products on this page?

For more detail of ceramic products like price,shipping,samples...

Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

zppd_Company_Profile-_Dongguan_Mingrui_Ceramic_1-a...

Product Inf.:

Al2O3 content

%

 70-75 85 95 99.7

Density

(g/cm3)

 3.0 3.4 3.7 3.9

Bending Strength

(Mpa)

 85N/MM2 300 364 450

Hot coefficient of expansion

(20O°C-80O°C)

 6 7 7.6 8

Thermal Conductivity

(W/(m.R))

 17 18 20 35

Dielectric Strength

(kv/mm)

 9 10 11 12

Working Temperature

℃ (Long time use)

 1300 1400 1600 1750

Water Absorption

%

 5 <0.2 <0.2 <0.1-0.2

Specification:

Dimension Outer dia. mm Inner dia.mm Length mm Remark
Item
Thermocouple protection tube 7-120 1-110 10-2500

If you need others,we can

customize for you.
Insulated tube Single hole 2-120 1-110 10-3900
(inner core) Double holes 1-10 0.4-2 10-2500
Four holes 2-10 0.5-2 10-2500

Insulating Caps 2500mm 95% Alumina Ceramic Parts

Typical properties

●Good strength and stiffness

●Good hardness and wear resistance

●Good corrosion resistance

●High thermal conductivity

●High temperature resistance

●Electrical insulation

●Low dielectric constant

Application examples

●Mechanical seal rings

●Plungers or pistons for valves

●Electronic substrates

●High temperature thermocouple tubes

●Textile eyelets or guides

●Electrical insulators

●Wear resistant nozzles

●Ceramic parts for high temperature furnace

Insulating Caps 2500mm 95% Alumina Ceramic PartsInsulating Caps 2500mm 95% Alumina Ceramic Parts

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
