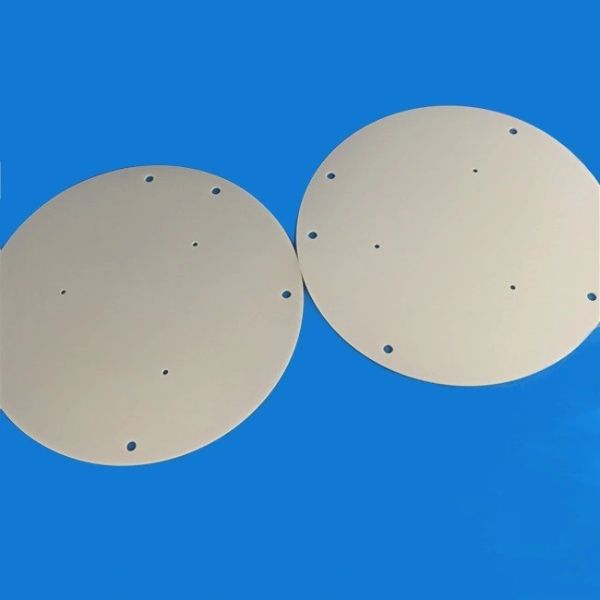

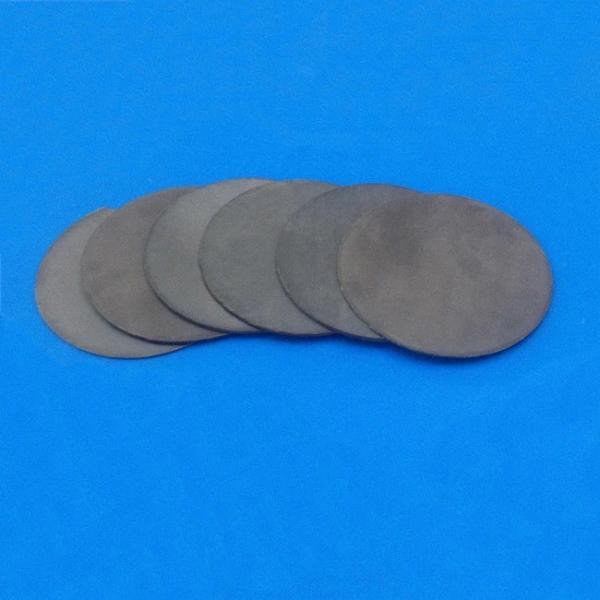

Round Ceramic Plate Industrial High Alumina Substrate In Electrical Ceramics

Industrial High Alumina Substrate In Electrical Ceramics

Main characteristics of alumina ceramic substrate
1. Good thermal shock resistance, greater than 220 T(ºC)
2. High thermal conductivity of high purity alumina, up to 30 W/m.k at 25ºC
3. Good surface roughness, flatness to be 0.05mm with min. warpage, deformation
4. High dielectric strength, low dielectric constant, and dielectric loss.
5. Laser cutting or precision machining cutting makes tight tolerance.

The specification of the ceramic substrate
1. Materials: 96% alumina, 99% alumina, 99.5% alumina, zirconia, silicon nitride, silicon carbide optional
2. Dimensional capability: the side length to be 500mm x 600mm, the thickness can be 0.15mm to 30mm

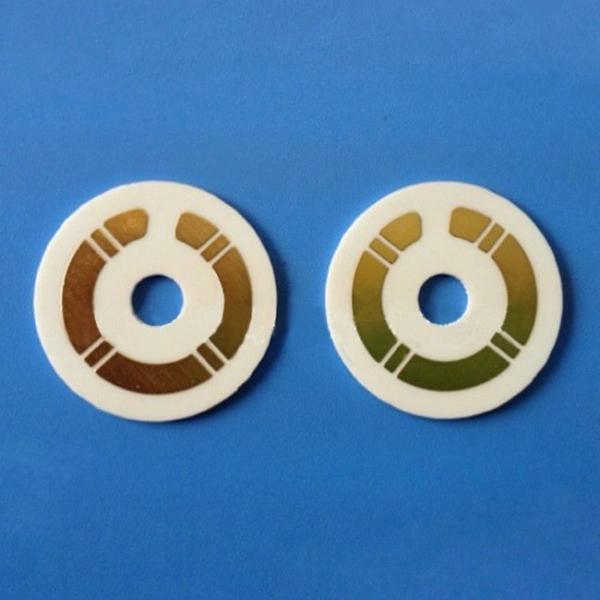

3. Surface treatment: lapping, fine ground, diamond-like polished to be Ra0.05, metallization, glazed

The description of alumina ceramic substrate
We have been making alumina (Aluminum oxide, Al2O3) ceramic substrate for over 12 years under rigorous quality control with carefully selected high purity ceramic materials ranging from 95% to 99.8%.
All these alumina sheets offer extraordinary properties of electrical insulation, thermal conductivity, breaking strength, and high-temperature resistance. Furthermore, one of the unique properties is its superb surface roughness to be Ra0.2 which results in excellent adhesion strength with a thin film and thick film metallization due to fine particles, also it can play a very important role in the sintering process which work as alumina ceramic setter.
The regular forming methods we use include tape-casting, isostatic pressing, dry pressing. We are dealing with a variety of selection of thicknesses from small-size to large-size capability. With our comprehensive types of manufacturing types of equipment, we have the capability from prototyping to mass production in the short term.

The checklist of alumina ceramic sheets in stock

Remark:
All the above ceramic sheets can be cut as per customers' detailed specifications.
