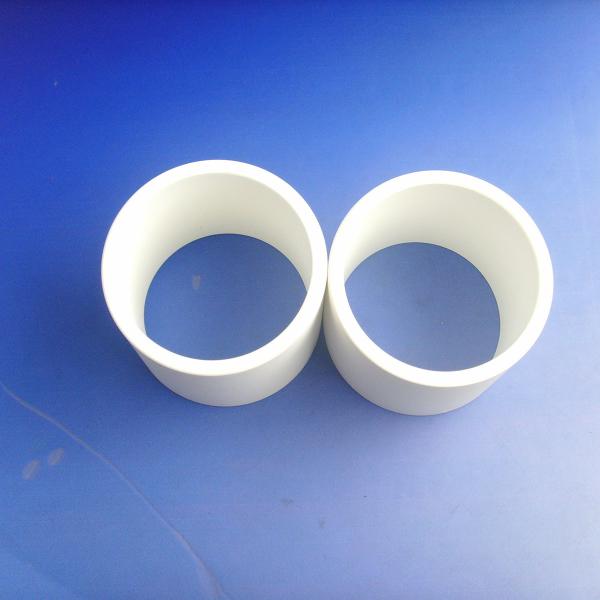

OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing
OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing
OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing
OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing
OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing
OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing
Specifications
Brand Name :
OEM
Model Number :
Customized
Certification :
ISO
Place of Origin :
Guangdong, China(mainland)
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
5 - 25 working days after order confirmed
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Product name :
Alumina Ceramic
Material :
Zirconia / alumina ceramic / Si3N4, SiC, ALN
Density :
3.9 - 5.9g / cm3
Size and Shape :
Customized
Diameter range :
0.3mm - 150mm
Length rangehardness :
0.5mm - 400mm
Description

Barrel And Cylindrical Ceramic Bushings Ceramic Anti-Corrosion Tubular Bushings Sleeve Tube

Ceramic Bushing Wear Friction Insulator Resistance Technical Ceramic Bushing

Ceramic bushing types:

Multiple fluted and capped bushings

Re-entrant bushings

Tubular bushings

Barrel and cylindrical bushings

Cable terminations

Function of bushing

The flexibility of the use of bushing is relatively high, it can play a lot of role, generally speaking, bushing is a kind of parts to protect the equipment.The use of bushing can reduce wear, vibration and noise of equipment, and has the effect of anti-corrosion.The use of bushing can also facilitate the maintenance of mechanical equipment, simplify the structure of equipment and manufacturing process.

The function that bushing plays in actual work has a lot to do with its application environment and purpose.In valve applications, bushing is fitted to cover the stem to reduce valve leakage and seal.In the field of bearing application, the use of bushing can reduce the wear between bearing and shaft seat and avoid the increase of clearance between shaft and hole.

ID (mm) OD (mm) LENGTH (mm) F DIA (mm) G (mm)
0.35 4 6 7 2
0.4 4 6 7 2
0.8 4 6 7 2
1.75 4 6 7 2
1.95 5 9 8 2
2.55 5 6 8 2
3.2 6 8 9 2.5
4.5 8 12 11 2.5
5.9 10 20 13 3
6.9 12 10 15 3
8.4 15 12 18 3
10.8 18 12 22 4
14.5 22 28 26 4
17.5 26 36 30 4
22 30 45 34 5
26 35 20 39 5

Properties Sheet:

Properties Units 95 Alumina Alumina AL2O3 ZrO2 Silicone Carbide Silicone Nitride
Density g/cm3 3.65 3.95 5.95-6.0 3.12 3.23
Water absorption 0 0 0 0 0
Coefficientof thermal expansion 10-16/k 7.9 7.9-8.5 10.5 3 3.2
Modulus of elasticity young`s mod GPa 280 280-340 210 440 300
poission`s ratio / 0.21 0.21-0.22 0.3 0.17 0.26
HV hardness hv MPa 1400 1650 1300-1365 2800 1500
Flexural strength(room temperature) MPa 280 310 950 390 720
Flexural strength(700℃) MPa 220 230 210 380 450
compressive strength(room temperature) MPa 2000 2200 2000 1800 2300
Fracture toughness MPa*m1/2 3.8 4.2 10 3.9 6.2
Heat conductivity(room temperature) W/m*k 18-25 26-30 2-2.2 120 25
Electrical resistivity(room temperature) Ω*mm2/m >1015 >1016 >1015 >103 >1013
Max use temperature ℃ 1500 1750 1050 1550 1050
Resistance to acid alkaline / high high high high high
Dielectric constant / 9 9.6 29 9.66-10.03 /


Detailed Images

OEM Anti Corrosion Cylindrical Alumina Ceramic BushingOEM Anti Corrosion Cylindrical Alumina Ceramic BushingOEM Anti Corrosion Cylindrical Alumina Ceramic Bushing

Company Introduction:
We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high precision zirconia and alumina ceramic parts, ceramic thread tube . Our main products include ceramic rod , ceramic tube, ceramic plunger, ceramic valve, ceramic plate, ceramic shaft and bearing , ceramic nozzle etc , which are mainly used in industrial fields of Machinery, Petrochemical oil and gas, Valves, Automotive, Food Processing, Fluid Handling, Process Control, Thermal Processing, Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical, Engineering, Mineral Processing, etc.
We have a full service include mold design and development , ceramic forming , precision machining
and precision detection technology. We have achieved great successes in particular requirements
which is based on cooperating with Tsinghua University and getting rich experience by our professional technical engineer teams . Our factory have an unique technical called mirror polishing which improve
our products more smooth , bright than other competitors.
OEM Anti Corrosion Cylindrical Alumina Ceramic Bushing

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
