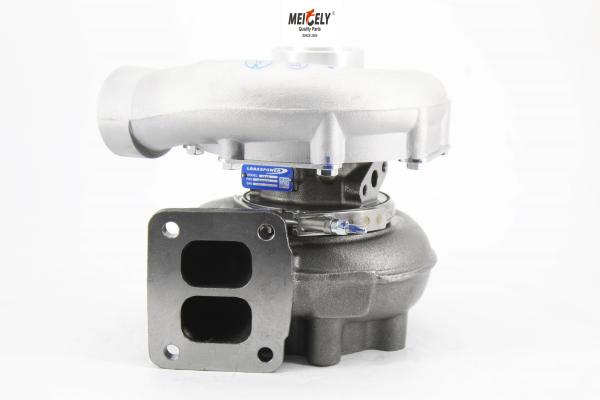

DG290 Truck TA4505 Diesel Engine Turbocharger 466200-0015
DG290 Truck TA4505 Diesel Engine Turbocharger 466200-0015
Specifications
Brand Name :
Meicely
Model Number :
DG290
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000pcs/month
Delivery Time :
10-45 days
Packaging Details :
Carton Packing
OE Number :
466200-0015
Material :
Steel
Turbo Model :
TA4505
Engine :
MIDR-062045
Displacement :
9.8L, 9840 ccm, 6 Cylinder
RPM :
2200
KW :
291
Angle α (compressor housing) :
246º
Angle β (turbine housing) :
156º
Turbine Housing AR :
1.05
Description

Use for rvi DG290 Truck TA4505 Diesel Engine Turbocharger 466200-0015

Specification:

Specification As Follows
OE No. 466200-0015
Material Steel
Turbo Model TA4505
Engine MIDR-062045
Displacement 9.8L, 9840 ccm, 6 Cylinder
RPM 2200
KW 291
Angle α (compressor housing) 246º
Angle β (turbine housing) 156º
Turbine Housing AR 1.05

Description:

Part Number 466200-5015S
Previous Version 466200-0015, 466200-0014, 466200-0019
OE number 5000670625, 5000670626
Description Truck
CHRA 441398-0021 (441398-5021S)
Turbo Model TA4505
Engine MIDR-062045
Displacement 9.8L, 9840 ccm, 6 Cylinder
RPM Max 2200
Fuel Diesel
KW 291
Angle α (compressor housing) 246º
Angle β (turbine housing) 156º
Bearing Housing 410310-0001 (410310-0004, 311548)(Oil Cooled)(1900011222) IN STOCK
Turbine Wheel 441064-0001 (Ind. 82. mm, Exd. 71.60 mm, Trm 11.88, 11 Blades)(1100016046) IN STOCK
Comp. Wheel 441029-0005 (Ind. 58.15 mm, Exd. 84. mm, Trm 48, 8+8 Blades, Superback) IN STOCK
Back plate 442752-0001 (1300016014) IN STOCK
Heat shield Number 410366-0003 (410366-0004, 410366-0007, 410310-0001)(2030016005) IN STOCK
Repair Kit 468132-0000(5000010045B) IN STOCK
Turbine Housing 441041-0004
Compressor Cover 443211-0005
Turbine Housing AR 1.05
Gasket (turbine inlet) 409123-0002(310694)
Gasket oil inlet 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)
Gasket (oil outlet) 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Replaced By 312250, 311785, 43289886602, 312294, 352469S, 312233, 312583, 212232
Manufacturer Meicely

Applications

Use for rvi DG290 Truck G260 with MIDR-062045 Engine

Warranty
This part comes with ONE YEAR unlimited mileage warranty.

Other OE No.

Other OE No. As Follows
OE Number Other OE No.
466200-0015 5000670625
466200-0015 5000670626
466200-0015 466200-0014
466200-0015 466200-0019
