Specifications
Brand Name :
Macylab
Model Number :
AA-1800EL
Certification :
CE ISO ROHS FCC FAD
Place of Origin :
China
MOQ :
1pcs
Price :
USD16376-USD24558/Set
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
5000Set / year
Delivery Time :
5-10days
Packaging Details :
Wood Box
Name :
Macylab Flame AAS Atomic Absorption Spectrometer With Graphite Furnace AA-1800EL Automatic Analysis
application :
Laboratory Apparatus
key words :
Macylab Flame AAS Atomic Absorption Spectrometer With Graphite Furnace AA-1800EL Automatic Analysis
Wavelength range :
large 185nm-900nm
Wavelength Accuracy :
±0.15nm
Wavelength Repeatability :
<0.10nm
Spectral Bandwidth :
0.1、0.2、0.4、0.7、1.0、1.4、2.0nm
Absorbance Range :
0-4A
Detector :
imported photomultiplier tube
Description

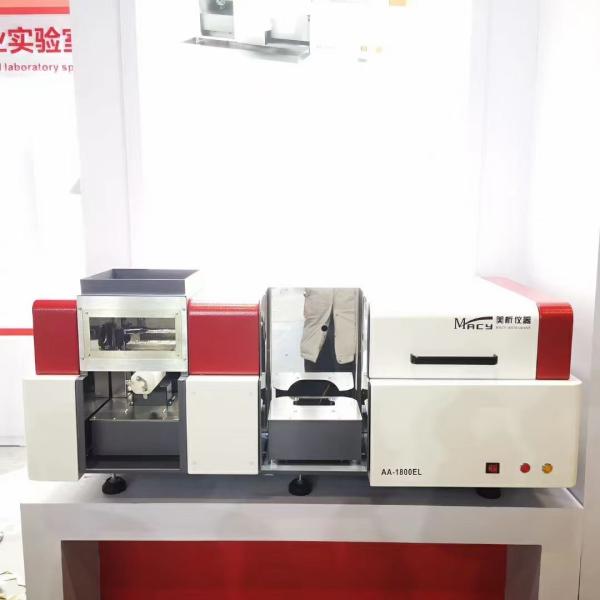

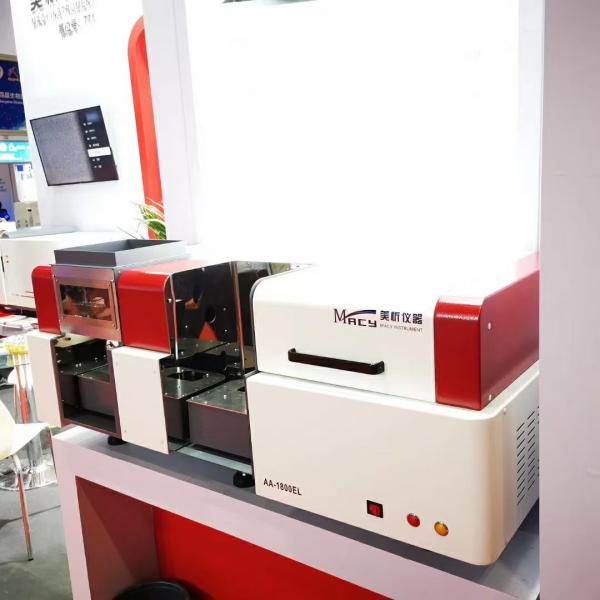

AA-1800EL Atomic Absorption Spectrophotometer

AA-1800EL atomic absorption spectrophotometer is absorted the latest international technology and famous universities jointly complete R & D, application experience with decades of spectral instrument. The products include the flame , graphite furnace and hydride generation system, can be equipped with various accessories, flexible configuration program can meet different customer demand. AA-1800 atomic absorption spectrometer can be used for analysis of complex samples ,full automatic multifunctional, various analysis methods can automatically switch, unmanned automatic analysis.

AA-1800EL atomic absorption spectrophotometer is now widely used in scientific research,quality control, disease control, environmental protection, metallurgy, agriculture,chemical industry .Hardware and software design of innovation to ensure the accuracy,safety, ease of use in the analysis of samples, equipment maintenance, simple and convenient.

Main features


High precision automatic optical system
1800 / mm reticle (dispersion rate) large area grating monochromator, a new type self collimation, all lenses are quartz coating, the detection range and the stability of optical broad to ensure the precision of analysis. Automatic 8 socket configuration 8 independent lamp power supply, can be respectively preheating



Titanium burner
Titanium burner, the optional 50mm and 100mm burner, air cooling pre mixed type,corrosion resistant, resistant to high salt, greatly improve the analysis efficiency andaccuracy of the flame

Automatic analysis
It can automatically accomplish safety ignition, extinction and switching, reliable structure,low fault rate, thus ensuring the sensitivity and reproducibility of the flame method.
The light source system 8 lamp automatic conversion, can be directly used high performance hollow cathode lamp, improve the sensitivity analysis of the flame, the automatic adjustment of the power supply parameters and the beam position, automaticwavelength scanning and searching peak



Graphite furnace temperature control
Gas dual temperature control inside and outside, 20 order linear or nonlinear heating, to ensure that the measured elements has the highest sensitivity; furnaceenriched up to 20 times, the longitudinal optically monitoring the graphite tube wall temperature, maximum temperature to 3000 degrees centigrade.




Technical parameters

Mainframe

Light Source

≤8 lamps automatic turret, automatic alignment
Power Supply

110/220V (+5% ~ -10%), 60/50Hz; 5000VA
Lamp Current

pulsed power supply
Optical System

large 1800 /mm grating ruling, full closed optical system
Wavelength Range

185nm-900nm Automatically peak find,a key opticaloptimization function
Wavelength Accuracy

±0.15nm
Wavelength Repeatability

<0.1nm
Spectral Bandwidth

0.1,0.2,0.4,0.7,1.0,1.4,2.0nm (7 steps with automatic changeover)
Baseline Stability

≤±0.002A/30 min (Static) ≤±0.004A/30min (Dynamic)
Absorbance Range

0-4A


Flame Analytical System

Detector

imported photomultiplier tube
Burner Head

full titanium combustion head, 50mm or 100mm generalcombustion head
Atomization Chamber

polymer explosion-proof spray chamber
Nebulizer

atomizer efficient glass atomizer, can also be customized
Ignition Type

microcomputer control, automatic ignition
Gas Control

automatic gas control system
Detection Limits(Cu)

0.002μg/mL
Precision

RSD≤0.5%


Graphite Furnace Analytical System

Heating Mode

vertical heating
Temperature Control Method

vertical optical temperature monitoring graphite tube wall temperature
Temperature Range

room temperature to 3000ºC
The Program

automatic temperature control up to 20 order
Temperature Control

the furnace enriched up to 20 times
Characteristics Volume

0.4 × 10-12g (Cd)
Detection Limit

0.4 × 10-12g (Cd)
Precision

RSD≤2%
The Cooling Water

can choose cooling water circulation system
Safety

the graphite tube damage, water flow air pressure and other alarmtemperature overheating protection
