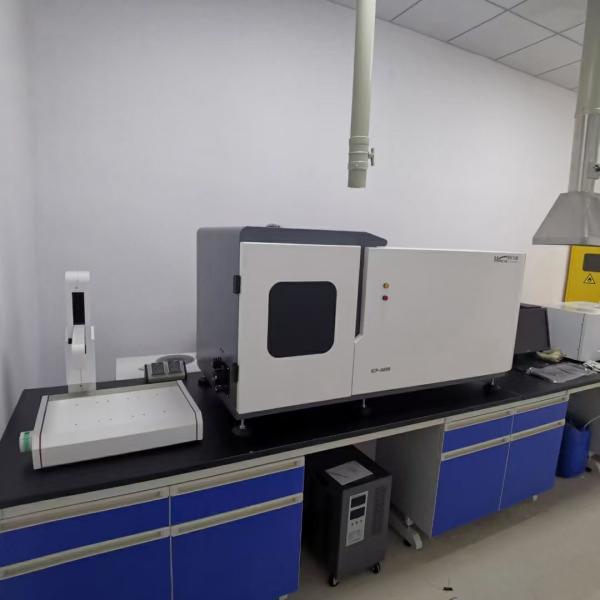

0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer
0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer
Specifications
Brand Name :
Macylab
Model Number :
ICP-6800
Certification :
ROSH, FCC, CE, ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
$31341-$34823
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pc
Delivery Time :
7 work day
Packaging Details :
container
Product Name :
ICP-6800
Keyword :
Inductively Coupled Plasma Emission Spectrometer
Circuit type :
Solid-state Rf Power Supply, With Function Of Automatch
Frequency :
27.12MHz±0.05%
Power Output :
800W—1200W
Power Output Stability :
<0.3%
Escaped RF radiation :
30cm Away From The Instrument,
Optical path :
Czerny- Turner
The wavelength range to scan :
195nm-500nm(3600L/mm) 195-800nm(2400L/mm)
Output power stability :
<0.3%
Description

Inductiveiy Coupled Plasma Optical Emission Spectrometer-ICP6800

Product Description

1

Plasma emission spectrometer (ICP

OES) is used to determine the content of major, trace and trace elements in various substances (soluble in hydrochloric acid, nitric acid, hydrofluoric acid, strong alkali, etc.).
2

the instrument has the characteristics of high efficiency, strong anti-interference type, high degree of automation, simple operation, stable and reliable, wide test range, fast analysis speed, low detection limit.
3

widely used in rare earth, geology, metallurgy, chemical industry, environmental protection, clinical medicine, petroleum products, semiconductor, food, biological samples, criminal science, agricultural research and other fields.

0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer

Main features

1

RFPower technical parameter

Circuit type solid-state RF power supply, with function of automatch

Frequency 27.12MHz±0.05%

Frequency Stability <0.1%

Power Output 800W-1200W

Power Output Stability <0.3%

Escaped RF radiation 30cm away from the instrument, electric field: E<2V/m

2

Sampling System Technical Parameter

Output working coil inner diameter 25mm

Torque tube Three concentric, external diameter 20mm

Coaxial nebulizer Outer diameter 6mm

Double barrel atomizing chamber Outer diameter 34mm

3

Gas Flow Controls

Plasma Argon Flowmeter (100-1000)L/h (1.6-16L/min)

Auxiliary Argon Flowmeter (10-100)L/h (0.16-1.66L/min)

Carrier Argon Flowmeter (10-100)L/h (0.16-1.66L/min)

Pressure Maintaining Valve (0-0.4MPa)

Cooling Water:Temperature 20-25ºC, Rate of Flow>5L/min, Hydraulic Pressure>0.1MPa

Spectrometer

Optics Czerny-Turner type

Focal length 1000 mm

Grating Ion Beam Etching Holographic Grating, 3600L/mm or 2400L/mm

Reciprocal linear dispersion 0.26nm/mm

Resolution ≤ 0.007nm (3600 line grating);≤0.015nm (2400line grating)

Element WL(nm) Limit Element WL(nm) Limit
La 408.672 <3.0 Cr 267.716 <5.0
Ce 413.765 <5.0 Al 396.152 <5.0
Pr 414.311 <5.0 Zr 343.823 <5.0
Nd 401.225 <5.0 Ag 328.068 <3.0
Sm 360.946 <10.0 Sr 407.771 <1.0
Eu 381.967 <1.0 Au 242.795 <5.0
Gd 342.247 <10.0 Pt 265.945 <5.0
Tb 350.917 <3.0 Pd 340.458 <5.0
Dy 353.170 <3.0 Ir 224.268 <10.0
Ho 345.600 <3.0 Rh 343.489 <10.0
Er 337.271 <3.0 Ru 240.272 <5.0
Tm 313.126 <3.0 Ba 455.403 <1.0
Yb 369.419 <1.0 As 228.812 ≤15
Lu 261.541 <3.0 Sb 206.833 ≤15
Y 371.030 <1.0 Bi 223.061 ≤10
Sc 335.373 <1.0 Hg 253.652 ≤15
Ta 226.230 <5.0 Pb 220.353 ≤15
Nb 313.340 <5.0 Ga 294.364 ≤10
Mn 257.610 <3.0 Se 203.985 ≤10
Mg 279.553 <1.0 Sn 242.949 ≤20
B 249.773 <10.0 Te 214.281 ≤10
Zn 213.856 <3.0 Ta 226.230 ≤5.0
Co 228.616 <3.0 Th 283.730 ≤10
Si 251.611 <10.0 Tl 276.787 ≤30
Ni 232.003 <5.0 Re 227.525 ≤5
Cd 226.502 <3.0 Ge 209.426 ≤15
Fe 239.562 <3.0 Os 225.585 ≤1
Ca 393.366 <1.0 W 207.911 ≤10
Mo 281.615 <5.0 Cu 324.754 <3.0
V 310.230 <5.0 Li 670.784 ≤3
Be 313.041 <1.0 Na 588.995 ≤20
Ti 334.941 <3.0 K 766.490 ≤60
Our Company
Macy Lab attaches great importance to the introduction and training of talents, so that it has established a strong training team, to provide all-round training for on-the-job employees, to help employees to make career planning, in order to the common development of the company and employees. At the same time, Macy Lab inspires the staffs with the professional ethics of "family, dedication and learning". Each of Macy employee perfectly presents every instrument and serves every customer with full enthusiasm and professional skills.

0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer

Our Factory

With more than 200 domestic employees, 26 senior RESEARCH and development engineers, three domestic research and development bases, customized application solutions that meet your needs, we has also established deep cooperation with more than 50 countries around the world to serve the world


0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer

Certificate:

Macylab instruments has been certified as a high-tech enterprise in China, with more than 30 patent certificates for its products

0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer

Exhibition

0.8kw Laboratory Spectrophotometer / Inductively Coupled Plasma Optical Emission Spectrometer

FAQ

1. Are you a factory or a trading company?
We are professional manufacturer of UV/Vis Spectrophotometers, Atomic Absorption Spectrophotometer, Micro-volume UV/VIS spectrophotometers , ICP item and Nucleic Acid Automatic Extraction System. And we have three R&D and production bases in Shanghai, Beijing and Jiangsu, and three wholly-owned subsidiaries.

2. What about the after-sale service?
Our spectrophotometer consumables are fully equipped, good after-sales service system and one-year warranty commitment, which can solve customer’s worries.
We can ensure our customers to purchase the components and parts within 5 years. And the product updates and replacement will not be affected.

3. What areas and applications can it be used?
It can be used for qualitative or quantitative meansurements for water solution in the following areas: metallurgy, pharmacy, food, health, institutes, biological chemistry,life science, petrochemical industry, mining, quality control, environmental protection, etc.


4. Why the reading is red and reach its maximum value 3.00Abs?
Probably you use the glass cuvette in UV range.

5. Why the wavelength calibration or self checking fail?
The deuterium lamp is turned off or there is something wrong with the D2 lamp, like the fuse, triode or the lamp itself.

6. Why is the reading is not as accurate as before?

Do the wavelength calibration before testing or restore the device to its default factory settings.
