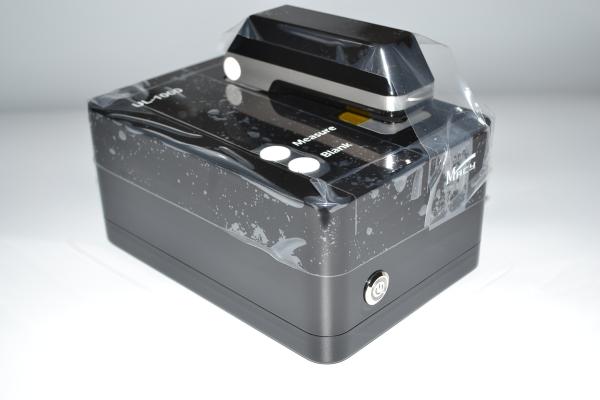

Compact Portable Package 190nm Ultraviolet Spectrophotometer For On Site Test
Compact Portable Package 190nm Ultraviolet Spectrophotometer For On Site Test
Specifications
Brand Name :
Macy
Model Number :
UL1000
Certification :
Rosh/ISO/CE/FDA
Place of Origin :
China
MOQ :
10pcs
Price :
USD
Payment Terms :
T/T
Supply Ability :
1000pcs/m
Packaging Details :
carton
Wavelength band :
190-850nm
Wavelength accuracy :
1nm
Minium sample capacity :
0.5ul
Text time :
5s
Aborbance resolution :
0.002Abs(1mm)
Detector :
3648 pixel linear CCD array
Description
Micro-Volume UV/VIS Spectrophotometers
UL-1000
Technical Specification
Feature:
Microscale sample test, minium 0.5ul
Wildly test area, 100 times of the traditional spectrophotometer No need to dilute for most samples
Test directly, no need to warm-up, container test and daily consumtion test
Whole wavelength 190-1100nm, accuracy 1nm, auto scannig wavelength 190-850nm Compact size and partable package fitable for on-site test
More accurate and fexiable test is realized by PC contry
Technical Specifications 　
Minium sample capacity 0.5ul
optical distance 1mm/0.2mm
Wavelength band 190-850nm
Wavelength accuracy 1nm
Wavelength resolution ≤0.3nm(FWHM at Hg 253.7nm)
Aborbance accuracy 2%(0.76 at 257nm)
Aborbance resolution 0.002Abs(1mm)
Aborbance area 0.02～80 (10mm)
Test accuracy 0.1～5 Abs.±0.1Abs 5～80 Abs. ±2%
Detector 3648 pixel linear CCD array
Light Source Import Xenon Lamp
Text time 8S
Size 200mm×130mm×136mm(L×W×H)
Weight ≤ 2.0kg
Sample test platform material 304 stainless steel and quartz
Power 24W
Voltage AC100～240V 50～60Hz

Standard Configuration
Spectrophotometer main unit ………………………………………………………..1 set
Power Adapter…………………………………………………………………………1 pc
Driver CD ………………………………………………………………………………1 pc
Test Report……………………………………………………………………………..1 pc
Power line………………………………………………………………………………1 pc
Instruction manual……………………………………………………………………..1 pc

After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer o English operation muanual.
