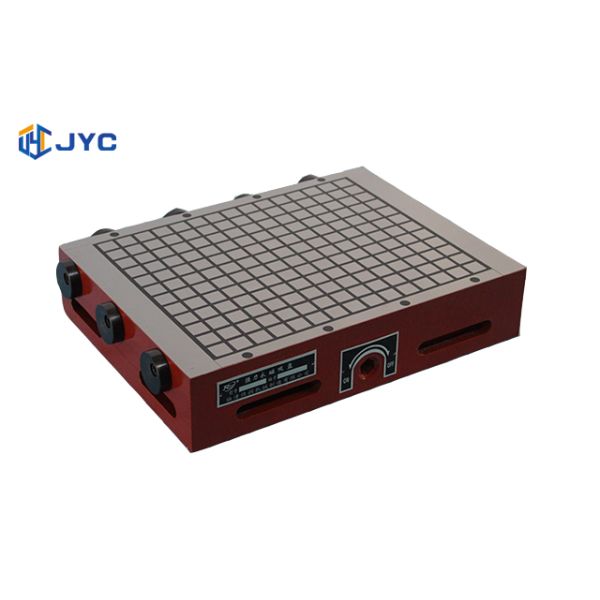

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
Specifications
Brand Name :
JYC
Model Number :
XCM91
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD+200-500+set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300+set+month
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Material :
steel + permanent material Alnico
Application :
Industrial Magnet,CNC Lathe Machine,CNC Machine Center,For clamping thin small work piece
Type :
Permanent,For clamping workpiece processing,Magnetic Chuck
Size(mm) :
Customized,Customized Magnet Size,Standard
Power :
Manual,NdFeB magnet
Usage :
Milling Drilling,grinding machine,Clamping
Advantage :
Energy Saving,safe
Oem :
Yes,Available
Name :
Quick Change Chuck,Super strong permanent magnetic chuck,Magnetic Chucks
Warranty :
12 months,1 Year
Sample :
Accept,Available magnetic chuck
Machine type :
CNC Milling Machine
Composite :
Neodymium Magnet,Strong Magnet
Product name :
Powerful permanent magnetic chuck
Color :
customized
Shape :
square
Description

Powerful permanent magnetic chuck

Powerful permanent magnetic chuck is suitable for CNC machining, precision milling processing, no need for electric power, even if long-term use will not heat. The precision is high, which can be kept at 2um / 100mm, fully guarantee the precision of the machined parts. For heavy cutting, when the area of the workpiece to be processed is not less than 100x100x15mm thick, the effect is particularly obvious. If it is smaller than this area, it can also hold, but it can not achieve the best effect. The unique magnetic circuit design makes the suction very strong and uniform, high-performance high-quality magnetic steel, which can ensure the chuck stable for a long time, and the suction can reach 200N / cm².

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful

Application

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful 200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
For Milling machine For CNC machine

Our advantages

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful 200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
True 80mm thickness chuck

We produce 100% 80mm thickness solid true square chuck with the same precision of demagnetizing surface. We promise to guarantee the quality for two years. Under normal use, if the magnetic force can not be eliminated or the magnetic force becomes smaller within one year, our company will replace it for free!

Fake 80mm thickness chuck

Some suppliers deceive consumers for their interests. The so-called 90mm is only 70mm, and the bottom is padded with 20 mm high. This fake square chuck is OK when you just receives the goods, but it will cause various problems for a while, such as unable to demagnetize, magnetic force becoming smaller, etc

Specification sheet

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful 200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
Model Dimensions (MM) Net Weight (KG)
A B B1 C F H G
XCM91 200x200 200 200 220 25 12+4 75 20 21
XCM91 200x300 200 300 320 25 12+4 75 20 32
XCM91 200x400 200 400 400 25 12+4 75 20 42
XCM91 250x250 250 250 270 25 12+4 75 20 33
XCM91 300x300 300 300 320 25 12+4 75 20 47
XCM91 300x400 300 400 420 25 12+4 75 20 63
XCM91 300x500 300 500 500 25 12+4 75 25 79
XCM91 300x600 300 600 600 25 12+4 75 25 95
XCM91 300x800 300 800 800 25 12+4 75 25 126
XCM91 350x350 350 350 370 25 12+4 75 25 65
XCM91 400x400 400 400 420 25 12+4 75 25 83
XCM91 400x500 400 500 500 25 12+4 75 25 106
XCM91 400x600 400 600 600 25 12+4 75 25 127
XCM91 400x800 400 800 800 25 12+4 75 25 168
XCM91 450x450 450 450 470 25 12+4 75 25 106
XCM91 500x500 500 500 520 25 12+4 75 25 132
XCM91 500x600 500 600 620 25 12+4 75 25 158
XCM91 600x600 600 600 620 25 12+4 75 25 190
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (through hole/pressing block).

Company Profile

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful
Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on. There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.

Packing&Delivery

200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful 200x200mm 80mm Thick Permanent milling Magnetic Chuck Powerful

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Each chuck will be well protected by wooden boxs.

FAQ

Q:Are you manufactory or trade company.

A:We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.
Q:Where do you located:
A:JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1 hour by fast rail way to Shanghai City.
Q:Production time:
A:Normally,We'll have regular items in stock, customized products will take 7-14 work days.
Q:Payment term:
A:TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.
Q:What's your work time:
A:Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
