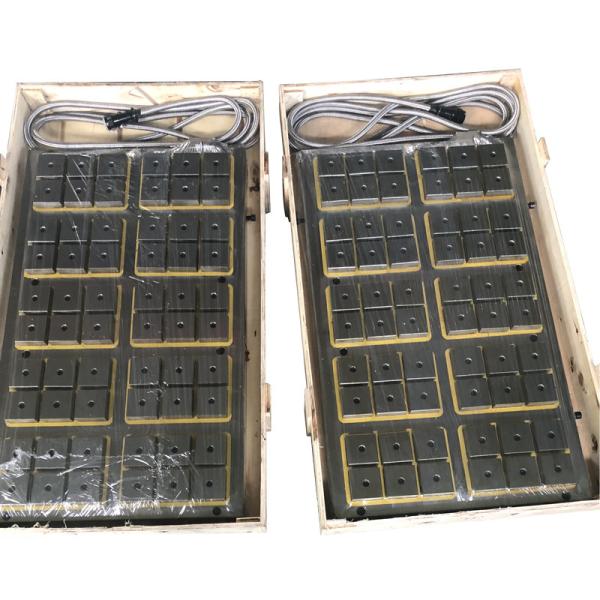

X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck
X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck
X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck
X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck
X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck
X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck
Specifications
Brand Name :
JYC
Model Number :
X61
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
USD 200-500
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wooden box
Name :
X61 Electro Permanent Magnetic Chuck
Type :
permanent Electromagnetic clamping
Material :
Steel, Ndfeb,Alnico, coil
Size(mm) :
590x1000 X61
Power :
electric, Ndfeb magnetic
Usage :
Lathe, Milling, Drilling, Grinding Machine, Clamping
Application :
Industrial Magnet, Grinding Machine, Spark Machine Center, For Clamping Thin Small Work Piece
Color :
customized, yellow, green, black，red
Oem :
Yes, Available
Warranty :
12 months, 1 Year
Description

590x1000mm Electro Permanent Magnetic Chuck

Product Introduction

X61 Powerful Electro Permanent Magnetic Chuck clamping Force Up to More 20 Kg / Cm 2

  • Energy Saving

Save More Than 95% El Ectricity

  • Security

magnetism Remain 30 Years Even when Power Off

  • Efficient

increase Efficiency by More Than 60%

  • Durable

Easy to Use And maintain

X61 standard electronic controlled permanent magnetic chuck is a new type of magnetic chuck, which use electric pulse to control its magnetism . No electricity is needed when X61 at work, only except in the first 1-2 seconds of magnetization and demagnetization process. Magnetism will not lose even in the case of a sudden power cut, and the work piece will not move. X61 has the convenience of "Electronic controlled magnetic chuck" and the safety precision of "Permanent magnet chuck", which is used for high precision milling and grinding.

Model Dimensions (MM) Polar Distance (MM) Polar number Net Weight (KG)
Length Breadth Height 70*70 50*50
X61-250*250 250 250 68 70*70/50*50 4 9 31
X61-250*300 300 250 6 12 40
X61-300*300 300 300 9 16 48
X61-300*400 400 300 12 20 64
X61-300*500 500 300 15 28 80
X61-300*600 600 300 18 32 96
X61-300*800 800 300 24 48 128
X61-300*1000 1000 300 30 60 160
X61-400*400 400 400 16 25 85
X61-400*500 500 400 20 35 105
X61-400*600 600 400 24 40 128
X61-400*800 800 400 32 60 170
X61-400*1000 1000 400 40 75 210
X61-500*500 500 500 80 25 49 155
X61-500*600 600 500 30 56 188
X61-500*800 800 500 40 84 250
X61-500*1000 1000 500 50 105 310
X61-600*600 600 600 36 72 225
X61-600*800 800 600 48 96 300
X61-600*1000 1000 600 60 120 375
X61-600*1200 1200 600 72 144 450
X61-600*1500 1500 600 90 176 560


Product Details

X61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic ChuckX61 590x1000mm Electro Permanent Magnetic Chuck Stainless Steel Magnetic Chuck

MAGNETIC CLAMPING VS TRADITIONAL CLAMPING

Suitable for clamping of various workpieces without deformation Clamping tends to deform the workpiece
Uniform suction, improve processing accurcy During the machining process, the workpiece generates vibrations, which reduces the machining accuracy and the surface flatness.
Accurate positioning, convenient clamping Difficult clamping and inaccurate positioning reduce work efficiency
No interference position, workpieces can be f machined on five sides at one time clamping with processing interference positions, workpieces can not be processed in one operation

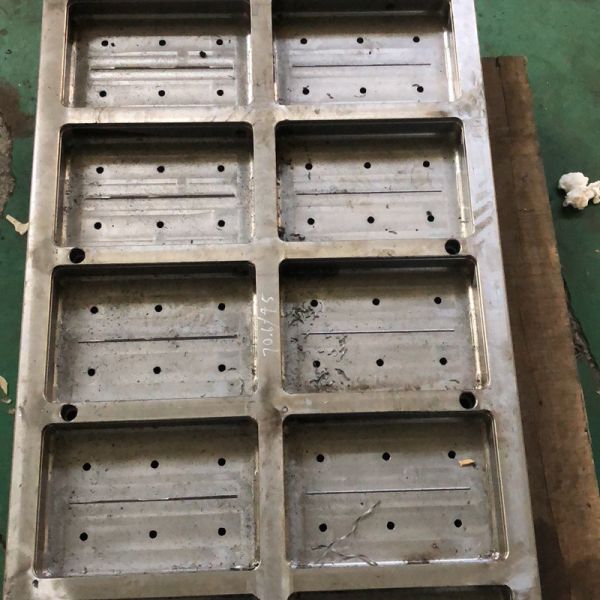

Processing Technology

1. Cnc Flame Cutting

2. Gantry Milling

3. Cnc Processing Centor

6. Coils and Magnetic Steel Assembly

5. Deburring and Cleaning

4. Drilling Machine

7. Magnetic Steel Commissioning

8. Electrical with Stand Voltage Detection

9. Epoxy Potting

10. Suction and Pull-out Force Test

11. Surface Grinder Finish Machining

12. Surface Magnetic Remanence (inspection)

13. Finished Product Electrical with Stand Voltage Detection

14. Finished Product Appearance Inspection

15. Packing List Inspection

16. Finished Package

Company Profile

As a professional designer and manufacturer ofmagnetic products over 10 years, JYC technology Co., Ltd. is always providing customers appro-priate solutions to holding and lifting materialduring machining progressing.

The huge range of our magnetic products includeElectro magnetic chuck(EMC) series, Permanentmagnetic chuck(PMC) series, Electro permanentmagnetic chuck(EPMC) series, Electro magneticlifter (EML),.Permanent magnetic lifter(PM-L),Electro permanent magnetic lifter (EPML),Iron remover, Demagnetizer, etc.

Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on.

There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.

FAQ

Q: Are you manufactory or trade company.

A: We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.
Q: Where do you located:
A: JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1 hour by fast rail way to Shanghai City.
Q: Production time:
A: Normally,We'll have regular items in stock, customized products will take 7-14 work days.
Q: Payment term:
A: TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.
Q: What's your work time:
A: Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
