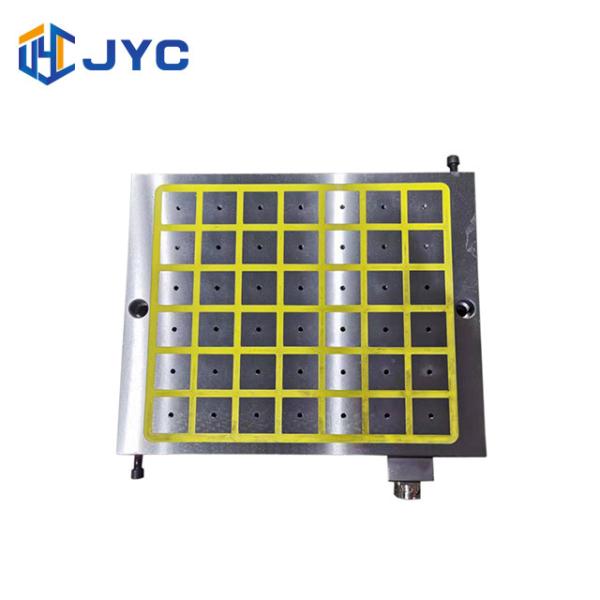

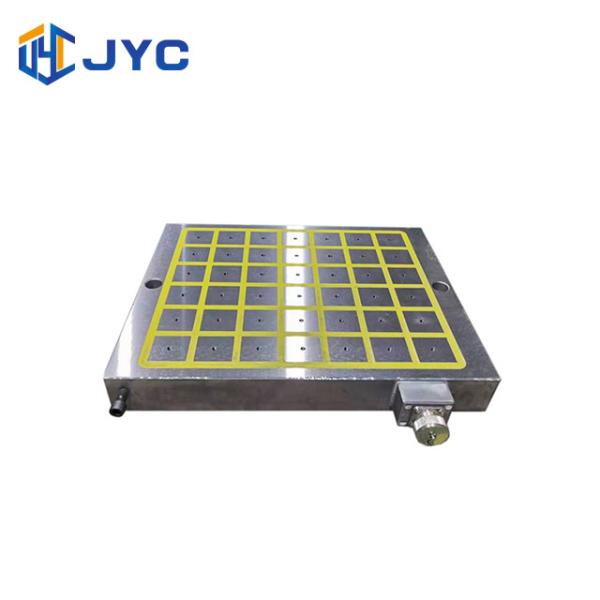

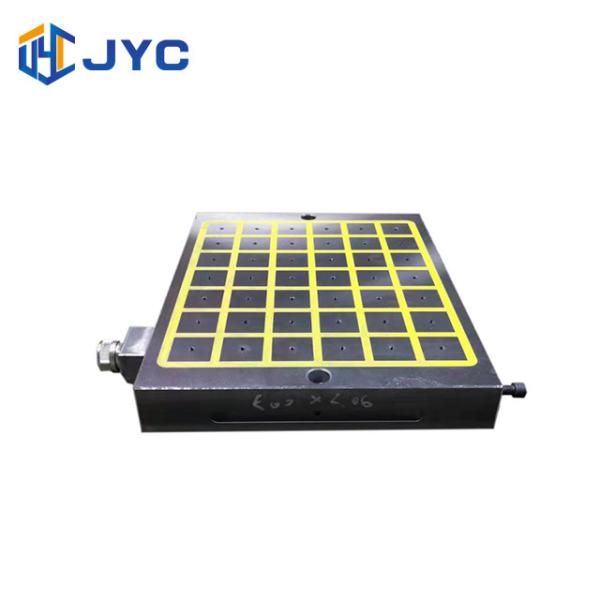

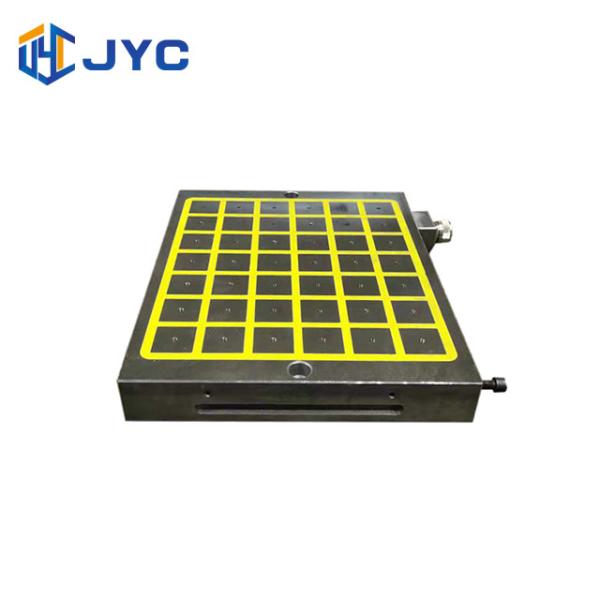

Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Specifications
Brand Name :
JYC
Model Number :
X61
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
USD 500-1000
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wooden box
Material :
Steel, Ndfeb Magnet, Sintered Neodymium-Iron-Boron, ss, steel + permanent material Alnico
Application :
Industrial Magnet, CNC Lathe Machine, CNC Machine Center, For clamping thin small work piece
Type :
Permanent, For clamping workpiece processing, Magnetic Chuck
Size(mm) :
Customized, 300mmx300mm and so on
Power :
electric, Ndfeb magnetic
Usage :
lathe, milling, drilling, grinding machine, clamping
Oem :
Yes, Available
Warranty :
12 months, 1 Year
Color :
customized, yellow, green, black
Description

Quick Clamp, Electro Permanent Magnetic Chuck

X61 standard electronic controlled permanent magnetic chuck


·X61 use electric pulse to control its magnetism. No electricity is needed when X61 at work.

·X61 has the convenience of "Electronic controlled magnetic chuck" and the safety precision of "Permanent magnet chuck"

·High suction above 20 KG/cm², used for high precision milling and grinding.

Application

Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine

Specification sheet

Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine

Model Dimensions (MM) Polar Distance (MM) Polar number Net Weight (KG)
Length Breadth Height 70*70 50*50
X61-250*250 250 250 68 70*70/50*50 4 9 31
X61-250*300 300 250 6 12 40
X61-300*300 300 300 9 16 48
X61-300*400 400 300 12 20 64
X61-300*500 500 300 15 28 80
X61-300*600 600 300 18 32 96
X61-300*800 800 300 24 48 128
X61-300*1000 1000 300 30 60 160
X61-400*400 400 400 16 25 85
X61-400*500 500 400 20 35 105
X61-400*600 600 400 24 40 128
X61-400*800 800 400 32 60 170
X61-400*1000 1000 400 40 75 210
X61-500*500 500 500 80 25 49 155
X61-500*600 600 500 30 56 188
X61-500*800 800 500 40 84 250
X61-500*1000 1000 500 50 105 310
X61-600*600 600 600 36 72 225
X61-600*800 800 600 48 96 300
X61-600*1000 1000 600 60 120 375
X61-600*1200 1200 600 72 144 450
X61-600*1500 1500 600 90 176 560
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (through hole/pressing block).

Company Profile

Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine
Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine

Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on.

There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.

Packing&Delivery

Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine Quick Clamp Rectangular electro permanent Magnetic Chuck Magnetic Bed For milling Machine

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Each chuck will be well protected by wooden boxs.

FAQ

Q:Are you manufactory or trade company.

A:We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.
Q:Where do you located:
A:JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1 hour by fast rail way to Shanghai City.
Q:Production time:
A:Normally,We'll have regular items in stock, customized products will take 7-14 work days.
Q:Payment term:
A:TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.
Q:What's your work time:
A:Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
