Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine
Specifications
Brand Name :
JYC
Model Number :
XM43
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
USD 200-500
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wooden box
Name :
XM43 Double Tiltable permanent magnetic chuck
Material :
Steel, copper coil, aluminum coil
Application :
Industrial Magnet, Grinding Machine, Spark Machine Center, For clamping thin small work piece
Type :
Electromagnetic clamping
Size :
Customized, 300mmx300mm and so on
Power :
electric, Ndfeb magnetic
Usage :
lathe, milling, drilling, grinding machine, clamping
Oem :
Yes, Available
Warranty :
12 months, 1 Year
Color :
customized, yellow, green, black
Description

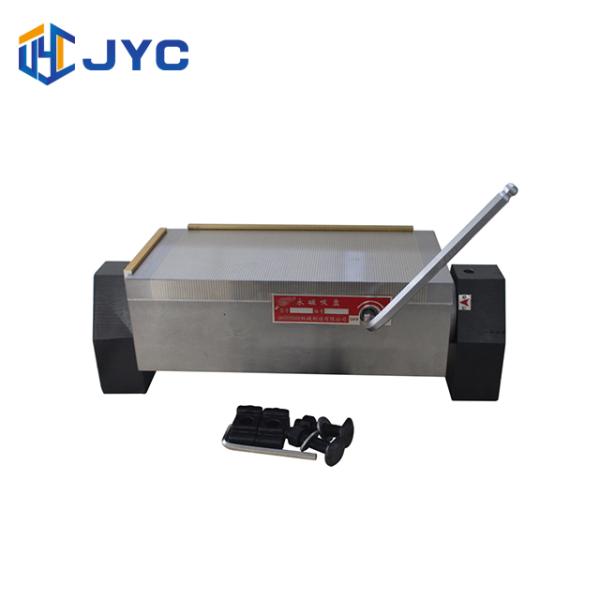

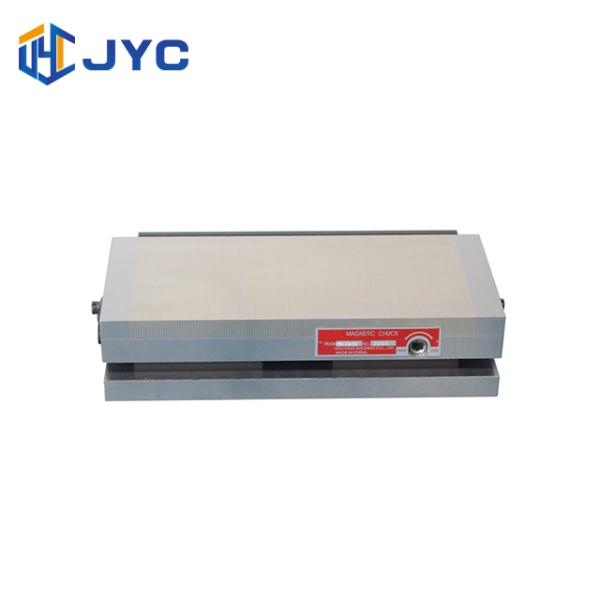

XM43 double tiltable permanent magnetic chuck

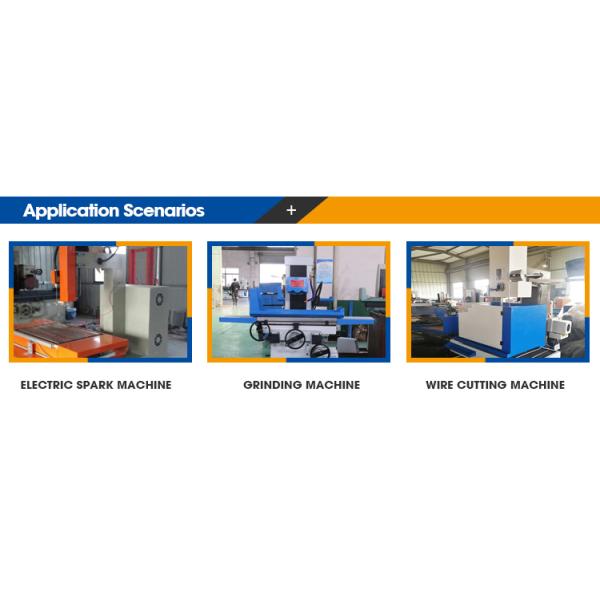

Used for all kinds of flat machine, electric discharge machine(EDM) for precision milling and cutting process from single side or double side,

its adjustment is more flexible and accurate.

Selection of high-quality materials makes its suction strong, remanence small, magnetism uniform. Plane accuracy of the magnetic surface remains the same when you turn on or off.

Magnetic pole arrangement is only 1.5mm, which makes it easy to hold smaller parts.

Model Dimensions (MM) Machine angle Net weightN.W(kg)
Width Length Height Pole pitch
XM43-100*175 100 175 115 0. 5+1.5 0-45° 12
XM43 125*250 125 250 115 0.5+1. 5 0-45° 20
XM43 150*150 150 150 115 0. 5+1.5 0-45° 15
XM43T 50*300 150 300 115 0. 5+1. 5 0-45° 32
Note: Other specifications can be customized ,please call for further information.

Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

Oem Tiltable Permanent Magnetic Chuck For Engraving MachineOem Tiltable Permanent Magnetic Chuck For Engraving Machine

Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

Item Permanent magnetic chuck Electromagnetic magnetic chuck Electro permanent magnetic chuck
Magnetic source NdFeB Coil and core NdFeB,Alnico
Magnetic force principle Internal magnetic fields Constant current Conversion by electronic control device
Control method Manual Electric control device Electric control device
Precision About 0.02-0.05 (the error increased by sizes) About 0.02-0.05 About 0.002-0.005
Potential risk safe Prone to security incidents Absolute safe
Magnetic regulation Unable to adjust Electric control device to adjust suction Electric control device to adjust suction
Residual magnetism Few remanence Few remanence Automatic surface demagnetization
Thermal deformation None Few heat generation and thermal deformation after continuous power o n None
Serive life 6-10 years 3-5 years Above 10 years

Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

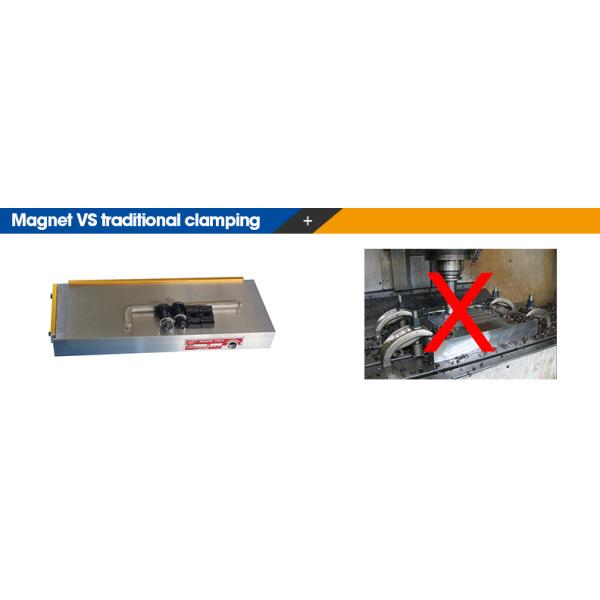

Suitable for clamping of various workpieces without deformation 1 Clamping tends to deform the workpiece
Uniform suction, improve processing accuracy 2 During the machining process, the workpiece generates vibrations, which reduces the machining accuracy and the surface flatness.
Accurate positioning, convenient clamping 3 Difficult clamping and inaccurate positioning reduce work efficiency
No interference position, workpieces can be fmachined on five sides at one time 4 clamping with processing interference positions, workpieces can not be processed in one operation

Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

Oem Tiltable Permanent Magnetic Chuck For Engraving Machine Oem Tiltable Permanent Magnetic Chuck For Engraving Machine Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

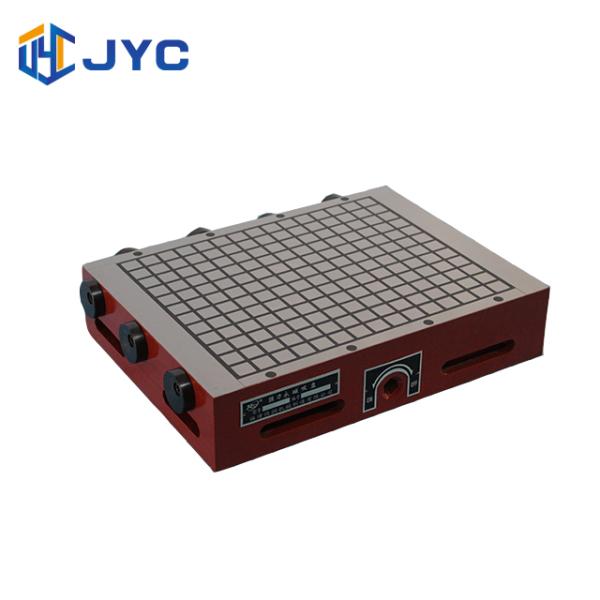

Model: PMSC

Super powerful permanent magnetic chuck for milling machine

Model: XCM91

Powerful permanent magnetic chuck for milling machine

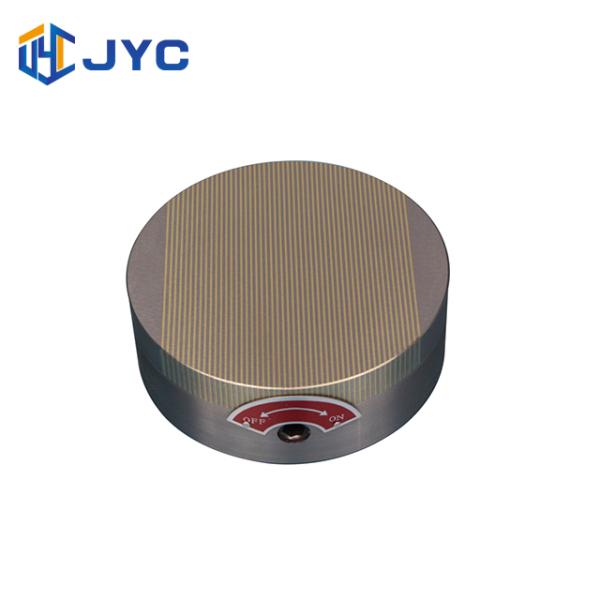

Model:XM51

Dense pole round permanent magnetic chuck for grinding
Oem Tiltable Permanent Magnetic Chuck For Engraving Machine Oem Tiltable Permanent Magnetic Chuck For Engraving Machine Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

Model: XM42

Tiltable permanent magnetic chuck

Model: XH42

Rotatable permanent magnetic chuck

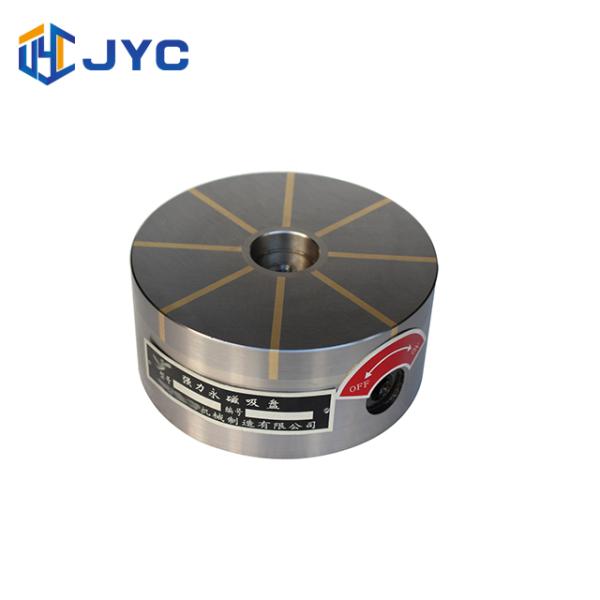

Model:XF51

Radial pole round permanent magnetic chuck for lathe milling

Oem Tiltable Permanent Magnetic Chuck For Engraving Machine

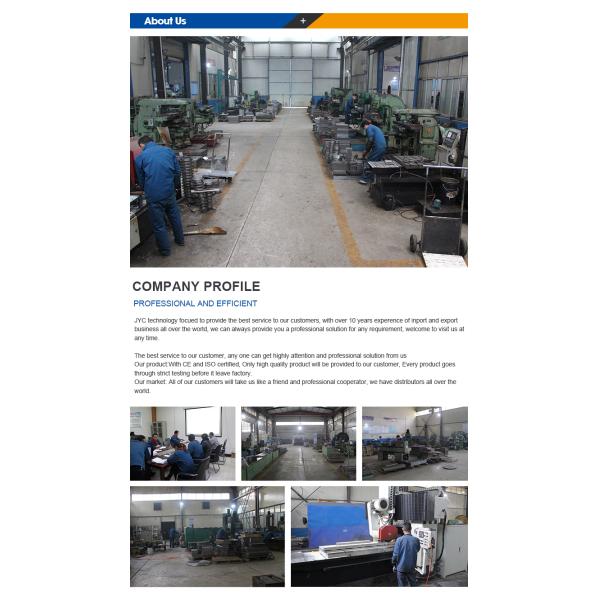

Q:Are you manufactory or trade company.
A:We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.

Q:Where do you located:
A:JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1 hour by fast rail way to Shanghai City.


Q:Production time:
A:Normally,We'll have regular items in stock, customized products will take 7-14 work days.


Q:Payment term:
A:TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.


Q:What's your work time:
A:Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
