XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
Specifications
Brand Name :
JYC
Model Number :
X11
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
USD 200-500
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wooden box
Name :
XD11 rotary electronic controlled magnetic chuck
Material :
Steel, copper coil, aluminum coil
Application :
Industrial Magnet, Grinding Machine, Spark Machine Center, For clamping thin small work piece
Type :
Electromagnetic clamping
Size :
Customized, 300mmx300mm and so on
Power :
electric, Ndfeb magnetic
Usage :
lathe, milling, drilling, grinding machine, clamping
Oem :
Yes, Available
Warranty :
12 months, 1 Year
Color :
customized, yellow, green, black
Description

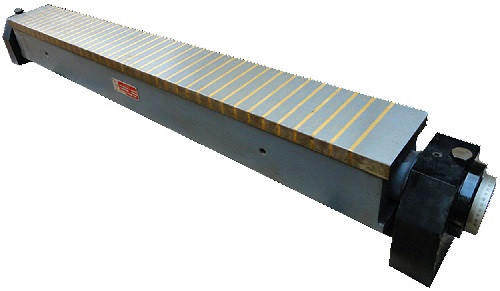

XD11 rotary electronic controlled magnetic chuck

Product introduction:
XD11 rotary electronic controlled magnetic chuck has a calibrated scale, angle is adjustable by ± 45°, the chuck is integrated with the rotary spindle, which makes positioning precisely. XD11 is suitable for processing(Grinding, iron cutting, wire cutting, sparking, etc.) of the work piece with an angle.

Specification sheet

XD11 100*250mm Electronic Controlled Rotary Magnetic ChuckXD11 100*250mm Electronic Controlled Rotary Magnetic Chuck

Model Dimensions (MM) Overall Lengh L2 Overall Height H2 Voltage (V) Current (A) Power (W) Net weight (KG)
B1 L1 Le H1 Polar distance B2 G h1 h2 P1 P2
XD11-100*250 100 250 211 95 10(2+8) 100 14 91 18 50 38 380 145 110 0.3 33 21
XD11-120*300 120 300 240 95 14(2+12) 100 14 91 18 50 38 430 145 110 0.44 48.4 29
XD11-125*250 125 250 211 95 14(2+12) 100 14 91 18 50 38 380 145 110 0.32 35.2 25
XD11-150*300 150 300 240 95 14(2+12) 100 14 91 18 50 38 430 145 110 0.4 44 37
XD11-150*350 150 350 296 95 14(2+12) 100 14 91 18 50 38 480 145 110 0.42 46.2 41
XD11-150*450 150 450 408 95 14(2+12) 100 14 91 18 60 38 600 145 110 0.5 55 51
XD11-200*500 200 500 452 95 14(2+12) 100 16 120 20 60 43 650 170 110 0.9 122 76
XD11-200*600 200 600 560 95 14(2+12) 100 16 120 20 60 43 750 170 110 1.1 121 89
XD11-300*600 300 600 560 95 14(2+16) 120 16 120 20 80 48 790 170 110 1.4 154 106
XD11-300*680 300 680 620 95 14(2+16) 120 16 120 20 80 48 870 170 110 1.45 159.5 120
XD11-300*800 300 800 740 95 14(2+16) 120 16 120 20 80 48 960 170 110 1.84 202.4 155
Note: Other specifications can be customized ,please call for further information.

Company Profile

XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck
XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck

Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on.

There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.

Packing&Delivery

XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck XD11 100*250mm Electronic Controlled Rotary Magnetic Chuck

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Each chuck will be well protected by wooden boxs.

FAQ

Q: Are you manufactory or trade company.

A: We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.

Q: Where do you located:

A: JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1 hour by fast rail way to Shanghai City.

Q: Production time:
A: Normally,We'll have regular items in stock, customized products will take 7-14 work days.

Q: Payment term:

A: TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.

Q: What's your work time:

A: Normally, our work time is 9: 00 AM to 17: 00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
