RH Furnaces Mag Chrome Brick High Strength Magnesia Alumina Bricks
RH Furnaces Mag Chrome Brick High Strength Magnesia Alumina Bricks
Specifications
Brand Name :
CRE
Model Number :
XWMG
Certification :
ISO
Place of Origin :
CHINA
MOQ :
10MT
Price :
USD700 - 2000/MT
Payment Terms :
L/C, T/T
Supply Ability :
10000MT PER MONTH
Delivery Time :
2 Month after received down payment.
Packaging Details :
Export Standard pallet
Material :
magnesium oxide (MgO) and chromium oxide (Cr2O3)
brand :
CRE
CaO Content (%) :
0.34
processing service :
Bending, Welding, Punching, Cutting, Moulding
Shape :
Brick
product name :
Magnesia Chrome brick
Description

High density long time use life Magnesia-chrome refractory bricks for RH furnaces

Product Description

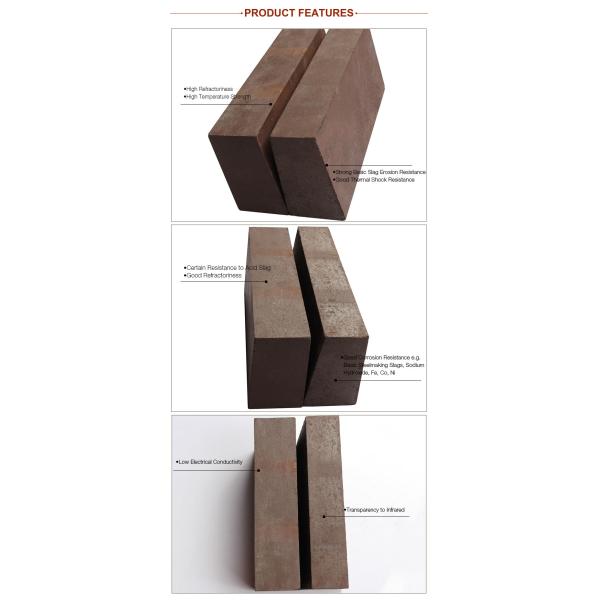

Magnesia-chrome bricks are refractory products containing magnesium oxide (MgO) and chromium oxide (Cr2O3) as the main components, and periclase and spinel are the main mineral components. This type of brick has high refractoriness, high temperature strength, strong resistance to alkaline slag, excellent thermal stability, and certain adaptability to acidic slag. The main raw materials for the manufacture of magnesia chrome bricks are sintered magnesia and chromite. The purity of the magnesia raw material should be as high as possible. The requirements for the chemical composition of the chromite ore are: Cr2O3: 30-45%, CaO: ≤ 1.0-1.5%.

Brand of name

Index

 pre-masonry magnesia-chrome bricks
XDMG-B XDMG-M XDMG-P1 XDMG-P2 XDMG-RB
MgO % ≧54.5 55-62 ≧60 ≧60 ≧70
Cr2O3 % ≧19.5 17-21 ≧12-20 ≧18 ≧15
Al2O3 % ≧6
SiO2 % ≦1.8 ≦2 ≦2 ≦2
Fe2O3 % ≦14.5
CaO % ≦2.5 ≦1.3 ≦1.3

Mpa

Cold crushing strength

 ≧45 ≧40 ≧50 ≧55 ≧45

Mpa

Bending strength

1500℃

 ≧1.0

g/cm3

Bulk density

 ≧3.20 ≧3.0 ≧3.18 ≧3.26 ≧3.0

0.2Mpa ℃

Refractoriness under load T0.6

 ≧1750 ≧1700 ≧1700 ≧1700
% Apparent porosity ≦18 ≦18 ≦18 ≦18 ≦19


RH Furnaces Mag Chrome Brick High Strength Magnesia Alumina Bricks

RH Furnaces Mag Chrome Brick High Strength Magnesia Alumina Bricks

The size is precise, providing kinds of shapes according to customer's drawing

RH Furnaces Mag Chrome Brick High Strength Magnesia Alumina Bricks

Application of Magnesia Chrome Refractory Brick

  • Steelmaking basic open hearth
  • Electric furnace bottom and furnace wall,
  • lining of oxygen converter
  • Non-ferrous metal smelting furnace
  • High temperature tunnel kiln
  • Calcined magnesia brick
  • Cement rotary kiln lining
  • Furnace bottom and furnace wall of heating furnace
  • Glass kiln regenerator checkered bricks, etc.

Advantage Of Magnesia Chrome Bricks

1) Silicon oxide is above 95%.

2) Good acid erosion resistance.

3) High softening point
