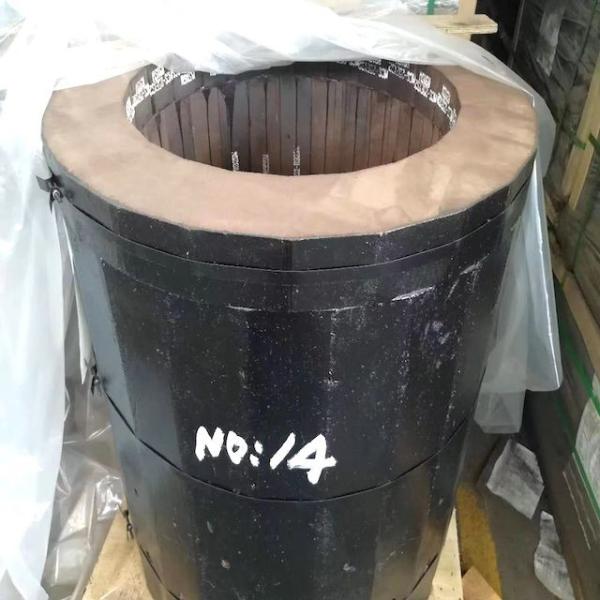

Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
Specifications
Brand Name :
CRE
Model Number :
XWMG
Certification :
ISO
Place of Origin :
CHINA
MOQ :
10MT
Price :
USD700 - 2000/MT
Payment Terms :
L/C, T/T
Supply Ability :
10000MT PER MONTH
Delivery Time :
2 Month after received down payment.
Packaging Details :
Export Standard pallet
Linear Change on Rehearting: :
0.1-0.4
Thermal expansion at 1000°C(%) :
0.3
CaO Content (%) :
international standard
processing service :
Punching, Cutting, Moulding
Shape :
Brick
product name :
Magnesia Chrome brick
Description

Directly Combined Pre-assemble magnesia Chrome Brick Magnesite Refractory Bricks for RH furnace

Product Description

Basic refractory magnesium oxide content of magnesia brick in more than 90%, the main crystalline phase to pericase. Magnesia brick have high refractoriness,alkali slag good performance, high load softening temperature, but poor thermal shock resistance.

Purity and firing temperature high magnesia brick , due to direct contact with periclase grains, known as a direct bonded magnesia brick , fused magnesite as raw material made of brick that fused rebonding magnesia brick.

Magnesia chrome Brick MGe-8 MGe-12 MGe-16 MGe-20
MgO(%)≥ 70 65 54 48
Cr2O3(%)≥ 8 12 16 20
Density (g/cm3) 2.95 3.05 3.1 3.15
Porosity(%)≤ 22 20 18 18
Cold Crushing Strength (MPa) 40 40 40 40
Refractoriness under 0.2MPa 1550 1600 1650 1700
Thermal shock resistance
(Times under 1100 ℃)		 4 4 4

4

Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace

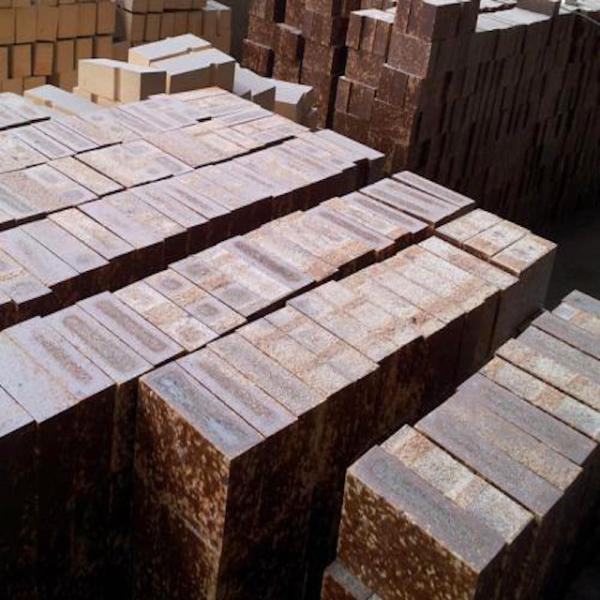

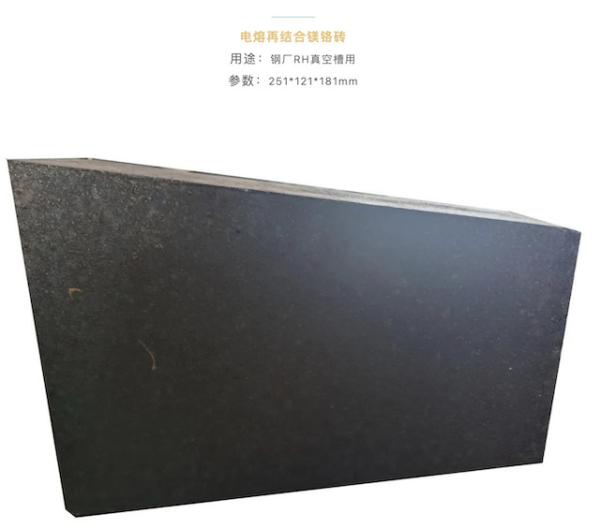

Standard sizing: 230 x 114 x 65 mm ,Special size and OEM Service also provide!

The size is precise, providing kinds of shapes according to customer's drawing

Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace

Application of Magnesia Chrome Refractory Brick

  • Steelmaking basic open hearth
  • Electric furnace bottom and furnace wall,
  • lining of oxygen converter
  • Non-ferrous metal smelting furnace
  • High temperature tunnel kiln
  • Calcined magnesia brick
  • Cement rotary kiln lining
  • Furnace bottom and furnace wall of heating furnace
  • Glass kiln regenerator checkered bricks, etc.

Advantage Of Magnesia Chrome Bricks

1) Silicon oxide is above 95%.

2) Good acid erosion resistance.

3) High softening point

QC Department

All our products will be inspected before leaving the factory, and all indicators will be qualified before they are allowed to be shipped.

This is our basic guarantee for every customer.
Directly Combined Pre-Assemble Magnesite Refractory Bricks For RH Furnace
