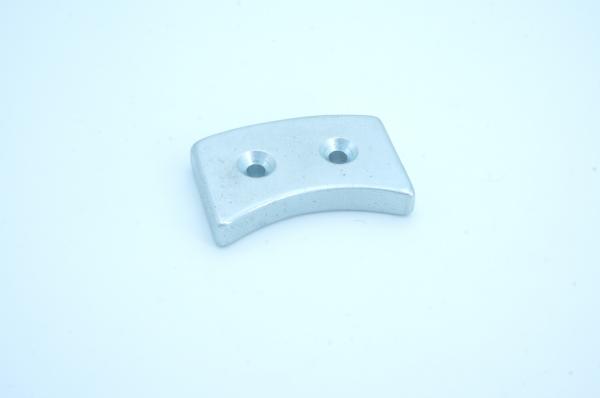

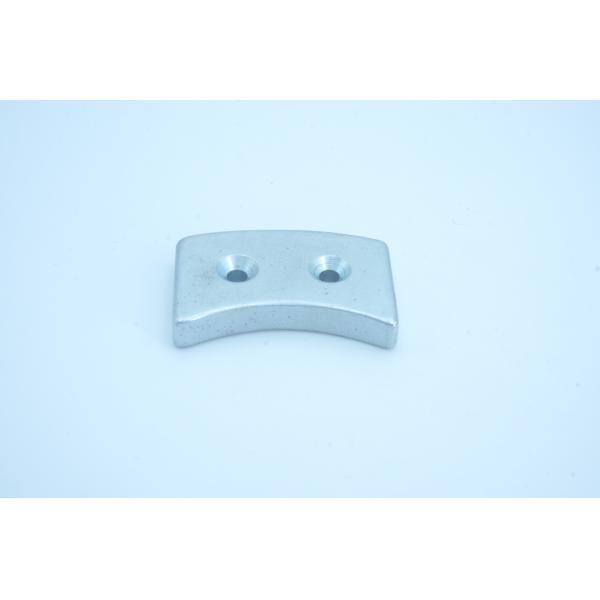

NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
Specifications
Brand Name :
JN
Model Number :
103EPS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 000K PCS/Month
Delivery Time :
15~18 Days
Packaging Details :
By Sea Pallet /By Air Carton / By Express Packaging
Name :
Automobile EPS Motor Magnet
Application Industry :
Automotive
Application :
EPS Motor
Materials :
NdFeB Rare earth materials
Process :
sintering
Shape :
Strip
Size :
made to order
Coating :
Zn
Category :
Neodymium Magnets
Description

NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered

Discover our innovative Automobile EPS Motor Magnet, crafted from NdFeB rare earth materials through the precise process of sintering. This custom-designed strip magnet boasts a zinc coating for enhanced durability and corrosion resistance, tailored to meet the demands of automotive applications.
Engineered for use in electronic power steering (EPS) motors, this magnet exhibits exceptional performance and reliability. Its unique strip shape and customizable size allow for flexible integration into various EPS motor designs, ensuring optimal efficiency and functionality.
The zinc coating not only protects against environmental factors but also contributes to the magnet's longevity, making it a preferred choice for automotive applications. Trust us to provide the best solution for your EPS motor requirements with our customized, sintered NdFeB permanent magnet.

Our NdFeB magnets are used in Automobile EPS Motors because our NdFeB magnets have the following advantages:

1. The coating is very smooth, the resistance is small, wear-resistant and high-temperature resistant;

2. The remanence is large, the strength is high, the working temperature is high, and it is not easy to demagnetize;

3. This material is the most cost-effective material among all the magnet materials on the market.

Our annual production capacity is 3000 tons.
The company with China’s No.1 rare earth miner Chinalco has a strategic partnership, with a complete production chain and a sound quality assurance system.

Customized needs
To Order, please provide the following key requirements:
1. Performance requirements (such as Remanence Br, Intrinsic Coercivity Hcj, Working Temperture, etc.)
2. Shape and size (drawings are available)
3. Magnetizing direction (axial, radial, and other magnetizing angle)
4. Coating material process and thickness (such as Ni, Ni-cu-Ni, Zn (Cr3 +) , Tin, Epoxy, Ni-AG, Ni-au)
5. Tolerance requirements (please pay attention to cost-effective, to avoid excessive quality)
6.Testing requirements
7. Futures requirements
8.Packing and transportation requirements


The performance and maximum processing accuracy of the NdFeB rare earth magnet products provided by our company please refer to the following two tables:

Magnetic Properties

Magnetic Properties
Grade Remanence Magnetic Inductio Intrinsic Coercivity Max Magnetic Energy Product Temperature Coefficient Max Working Temperture Density
Br Hcb Hcj (BH)max α Br β Hcj Tw ρ
T kGs kA/m kOe kA/m kOe KJ/m3 MGOe %/℃ %/℃ ℃ g/cm3
N55 ≥1.45 ≥14.5 836 10.5 ≥955 ≥12 406-437 51-55 -0.12 -0.8 80 ≥7.5
N54 ≥1.44 ≥14.4 836 10.5 ≥955 ≥12 398-437 50-55 -0.12 -0.8 80 ≥7.5
N52 1.42-1.44 14.2-14.4 836 10.5 ≥955 ≥12 390-422 49-53 -0.12 -0.8 80 ≥7.5
N50 1.4-1.42 14-14.2 836 10.5 ≥955 ≥12 374-406 47-51 -0.12 -0.8 80 ≥7.5
N48 1.37-1.4 13.7-14 915 11.5 ≥955 ≥12 366-390 46-49 -0.12 -0.8 80 ≥7.5
N45 1.32-1.37 13.2-13.7 915 11.5 ≥955 ≥12 342-366 43-46 -0.12 -0.8 80 ≥7.5
54M ≥1.44 ≥14.4 1056 13.3 ≥1114 ≥14 398-422 50-53 -0.12 -0.8 100 ≥7.5
52M 1.42-1.44 14.2-14.4 1056 13.3 ≥1114 ≥14 390-422 49-53 -0.12 -0.8 100 ≥7.5
50M 1.4-1.42 14-14.2 1034 13.0 ≥1114 ≥14 374-406 47-51 -0.12 -0.8 100 ≥7.5
48M 1.37-1.4 13.7-14 1019 12.8 ≥1114 ≥14 366-390 46-49 -0.12 -0.8 100 ≥7.5
45M 1.32-1.37 13.2-13.7 1008 12.7 ≥1114 ≥14 342-366 43-46 -0.12 -0.8 100 ≥7.5
42M 1.28-1.32 12.8-13.2 970 12.2 ≥1114 ≥14 318-342 40-43 -0.12 -0.8 100 ≥7.5
54H ≥1.44 ≥14.4 1056 13.3 ≥1353 ≥17 398-422 50-53 -0.12 -0.7 120 ≥7.5
52H 1.42-1.44 14.2-14.4 1056 13.3 ≥1353 ≥17 390-422 49-53 -0.12 -0.7 120 ≥7.5
50H 1.4-1.42 14-14.2 1034 13.0 ≥1353 ≥17 374-406 47-51 -0.12 -0.7 120 ≥7.5
48H 1.37-1.4 13.7-14 1019 12.8 ≥1353 ≥17 366-390 46-49 -0.12 -0.7 120 ≥7.5
45H 1.32-1.37 13.2-13.7 1008 12.7 ≥1353 ≥17 342-366 43-46 -0.12 -0.7 120 ≥7.5
42H 1.28-1.32 12.8-13.2 970 12.2 ≥1353 ≥17 318-342 40-43 -0.12 -0.7 120 ≥7.5
40H 1.26-1.28 12.6-12.8 948 11.9 ≥1353 ≥17 302-326 38-41 -0.12 -0.7 120 ≥7.5
52SH 1.42-1.44 14.2-14.4 1056 13.3 ≥1592 ≥20 390-422 49-53 -0.12 -0.6 150 ≥7.5
50SH 1.4-1.42 14-14.2 1034 13.0 ≥1592 ≥20 374-406 47-51 -0.12 -0.6 150 ≥7.5
48SH 1.37-1.4 13.7-14 1019 12.8 ≥1592 ≥20 366-390 46-49 -0.12 -0.6 150 ≥7.5
45SH 1.32-1.37 13.2-13.7 1008 12.7 ≥1592 ≥20 342-366 43-46 -0.12 -0.6 150 ≥7.5
42SH 1.28-1.32 12.8-13.2 970 12.2 ≥1592 ≥20 318-342 40-43 -0.12 -0.6 150 ≥7.5
40SH 1.26-1.28 12.6-12.8 948 11.9 ≥1592 ≥20 302-326 38-41 -0.12 -0.6 150 ≥7.5
38SH 1.22-1.26 12.2-12.6 925 11.6 ≥1592 ≥20 287-310 36-39 -0.12 -0.6 150 ≥7.5
35SH 1.17-1.22 11.7-12.2 887 11.1 ≥1592 ≥20 263-287 33-36 -0.12 -0.6 150 ≥7.5
33SH 1.13-1.17 11.3-11.7 857 10.8 ≥1592 ≥20 247-271 31-34 -0.12 -0.6 150 ≥7.5
30SH 1.08-1.13 10.8-11.3 819 10.3 ≥1592 ≥20 223-254 28-32 -0.12 -0.6 150 ≥7.5
48UH 1.36-1.4 13.6-14 1029 12.9 ≥1990 ≥25 366-390 46-49 -0.12 -0.6 180 ≥7.5
45UH 1.32-1.37 13.2-13.7 1008 12.7 ≥1990 ≥25 342-366 43-46 -0.12 -0.6 180 ≥7.5
42UH 1.28-1.32 12.8-13.2 970 12.2 ≥1990 ≥25 318-342 40-43 -0.12 -0.6 180 ≥7.5
40UH 1.26-1.28 12.6-12.8 948 11.9 ≥1990 ≥25 302-326 38-41 -0.12 -0.6 180 ≥7.5
38UH 1.22-1.26 12.2-12.6 925 11.6 ≥1990 ≥25 287-310 36-39 -0.12 -0.6 180 ≥7.5
35UH 1.17-1.22 11.7-12.2 887 11.1 ≥1990 ≥25 263-287 33-36 -0.12 -0.6 180 ≥7.5
33UH 1.13-1.17 11.3-11.7 857 10.8 ≥1990 ≥25 247-271 31-34 -0.12 -0.6 180 ≥7.5
30UH 1.08-1.13 10.8-11.3 819 10.3 ≥1990 ≥25 223-255 28-32 -0.12 -0.51 180 ≥7.5
28UH 1.02-1.08 10.2-10.8 773 9.7 ≥1990 ≥25 207-231 26-29 -0.12 -0.51 180 ≥7.5
42EH 1.28-1.32 12.8-13.2 970 12.2 ≥2388 ≥30 318-342 40-43 -0.12 -0.5 200 ≥7.5
40EH 1.25-1.28 12.5-12.8 948 11.9 ≥2388 ≥30 302-326 38-41 -0.12 -0.5 200 ≥7.5
38EH 1.22-1.26 12.2-12.6 925 11.6 ≥2388 ≥30 287-310 36-39 -0.12 -0.5 200 ≥7.5
35EH 1.17-1.22 11.7-12.2 887 11.1 ≥2388 ≥30 263-287 33-36 -0.12 -0.5 200 ≥7.5
33EH 1.13-1.17 11.3-11.7 857 10.8 ≥2388 ≥30 247-271 31-34 -0.12 -0.5 200 ≥7.5
30EH 1.08-1.13 10.8-11.3 819 10.3 ≥2388 ≥30 223-255 28-32 -0.12 -0.51 200 ≥7.5
28EH 1.02-1.08 10.2-10.8 773 9.7 ≥2388 ≥30 207-231 26-29 -0.12 -0.51 200 ≥7.5
40AH 1.25-1.28 12.5-12.8 948 11.9 ≥2786 ≥35 302-326 38-41 -0.12 -0.51 220 ≥7.5
38AH 1.22-1.26 12.2-12.6 925 11.6 ≥2786 ≥35 287-310 36-39 -0.12 -0.51 220 ≥7.5
35AH 1.17-1.22 11.7-12.2 887 11.1 ≥2786 ≥35 263-287 33-36 -0.12 -0.51 220 ≥7.5
33AH 1.13-1.17 11.3-11.7 857 10.8 ≥2786 ≥35 247-271 31-34 -0.12 -0.51 220 ≥7.5
30AH 1.08-1.13 10.8-11.3 819 10.3 ≥2786 ≥35 223-255 28-32 -0.12 -0.51 220 ≥7.5
28AH 1.02-1.08 10.2-10.8 773 9.7 ≥2786 ≥35 199-231 25-29 -0.12 -0.51 220 ≥7.5

NdFeB permanent magnet Zn Coating shape custom magnet with hole sintered
