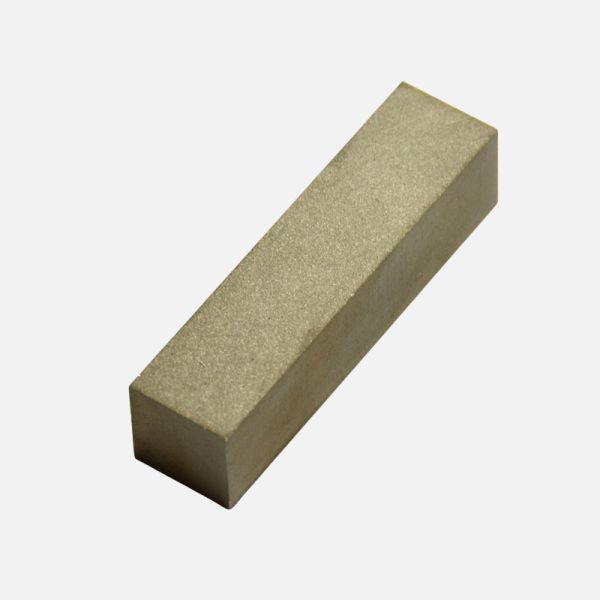

Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
Specifications
Brand Name :
JN
Model Number :
JN-CO-2
Place of Origin :
CHINA
Certification :
ISO9001
MOQ :
500PCS
Price :
Negotiable
Packaging Details :
By Sea Pallet /By Air Carton / By Express Packaging
Delivery Time :
25 Days
Payment Terms :
L/C,T/T
Supply Ability :
500K PCS/Month
Shape :
Disc, Cylinder, Block, Ring, Arc, Segment, Etc.
Applications :
Motors, Sensors, Magnetic Couplings, Magnetic Separators, Etc.
Property :
Isotropic And Anisotropic Is Avaible
Magnetization :
Multipolar Or So
Mechanical Properties :
Brittle, Hard, Difficult To Machine
Working Temp :
350℃
Magnetic Properties :
High Magnetic Energy Product, High Coercive Force, High Remanence
Advantages :
High Temperature Stability, High Magnetic Strength, Corrosion Resistance
Description

Permanent Magnet SmCo Block Tolerance 0.05mm Working Temp 350℃ for Industrial Applications

SmCo Magnet, also known as Samarium Cobalt Magnet, is a type of rare earth magnet with high magnetic energy product, high coercive force, and high remanence. It is a powerful and versatile magnet that is widely used in various industrial and technological applications.
Curie Temperature

The Curie Temperature of SmCo Magnet ranges from 700-800°C, making it an ideal choice for high temperature applications. It can maintain its magnetic properties even at extreme temperatures, making it suitable for use in harsh environments.

Magnetization

SmCo Magnet can be magnetized in multipolar or so configurations, giving it a unique and flexible magnetization pattern. This allows for more precise control over the magnetic field and makes it suitable for a wide range of applications.

Demagnetization Resistance

One of the key advantages of SmCo Magnet is its excellent demagnetization resistance. It can resist demagnetization forces, ensuring a stable and long-lasting magnetic performance. This makes it a reliable and durable magnet for various applications.

Magnetic Properties

SmCo Magnet has exceptional magnetic properties, including a high magnetic energy product, high coercive force, and high remanence. This makes it one of the strongest permanent magnets available, with a magnetic energy product up to 30 MGOe.

Shape

SmCo Magnet is available in various shapes, including disc, cylinder, block, ring, arc, segment, etc. The most commonly used shape is the Ring SmCo Magnet, which is often used in motor and generator applications. The versatile shape options make it suitable for a wide range of applications.

High Temperature Resistant SmCo Magnet

Cobalt SmCo Magnet is known for its high temperature resistance, making it ideal for use in high temperature environments. It can maintain its magnetic properties even at temperatures as high as 800°C, making it suitable for use in industries such as aerospace, automotive, and energy.

SmCo Magnet is a powerful and reliable magnet that offers high performance even in harsh environments. Its unique magnetic properties and versatile shape options make it a popular choice for various industrial and technological applications.

Technical Parameters:

Property Description
Advantages High Temperature Stability, High Magnetic Strength, Corrosion Resistance
Property Isotropic And Anisotropic Is Available
Magnetic Properties High Magnetic Energy Product, High Coercive Force, High Remanence
Tolerance 0.05mm
Curie Temperature 700-800°C
Demagnetization Resistance Excellent
Magnetization Multipolar Or So
Shape Disc, Cylinder, Block, Ring, Arc, Segment, Etc.
Applications Bar SmCo Magnet, Permanent Magnet SmCo, Motors, Sensors, Magnetic Couplings, Magnetic Separators, Etc.
Mechanical Properties Brittle, Hard, Difficult To Machine
Grade Residual Induction Coercive Force Intrinsic
Coercive Force		 Max.
Energy Product		 Max. Working Temperature
Br Hcb Hcj (BH)max Tw
kGs T kOe KA/m kOe KA/m MGOe KJ/m³ ℃
SmCo5 SC16 8.1-8.5 0.81-0.85 7.8-8.3 620-660 15-23 1194-1830 14-16 110-127 250
SC18 8.5-9.0 0.85-0.90 8.3-8.8 660-700 15-23 1194-1830 16-18 127-143 250
SC20 9.0-9.4 0.90-0.94 8.5-9.1 676-725 15-23 1194-1830 19-21 150-167 250
SC22 9.2-9.6 0.92-0.96 8.9-9.4 710-748 15-23 1194-1830 20-22 160-175 250
SC24 9.6-10.0 0.96- 1.00 9.2-9.7 730-770 15-23 1194-1830 22-24 175-190 250
Sm2Co17 SCS22 9.3-9.7 0.93-0.97 8.5-9.3 676-740 >18 >1433 20-23 160-183 350
SCS24 9.5-10.2 0.95- 1.02 8.7-9.6 692-764 >18 >1433 22-24 175-191 350
SCS24H 9.5-10.2 0.95- 1.02 8.7-9.6 692-764 >25 >1990 22-24 175-191 350
SCS26M 10.2-10.5 1.02- 1.05 8.5-9.8 676-780 12-18 955-1433 24-26 191-207 350
SCS26 10.2-10.5 1.02- 1.05 9.4-10.0 748-796 >18 >1433 24-26 191-207 350
SCS26H 10.2-10.5 1.02- 1.05 9.4-10.0 748-796 >25 >1990 24-26 191-207 350
SCS28M 10.3-10.8 1.03- 1.08 8.5-10.0 676-796 12-18 955-1433 26-28 207-223 350
SCS28 10.3-10.8 1.03- 1.08 9.5-10.2 796-812 >18 >1433 26-28 207-223 350
SCS28H 10.3-10.8 1.03- 1.08 9.5-10.2 796-812 >25 >1990 26-28 207-223 350
SCS30M 10.8-11.0 1.08- 1.10 8.5-10.5 676-835 12-18 955-1433 28-30 223-239 350
SCS30 10.8-11.0 1.08- 1.10 9.9-10.5 788-835 >18 >1433 28-30 223-239 350
SCS30H 10.8-11.0 1.08- 1.10 9.9-10.5 788-835 >25 >1990 28-30 223-239 350
SCS32M 11.0-11.3 1.10-1.13 8.5-10.7 676-852 12-18 955-1433 29-32 231-255 350
SCS32 11.0-11.3 1.10-1.13 10.2-10.8 812-860 >18 >1433 29-32 231-255 350
SCS32H 11.0-11.3 1.10-1.13 10.2-10.8 812-860 >25 >1990 29-32 231-255 350
SCS35 11.6-12.0 1.16-1.20 10.9-11.4 868-908 >18 >1433 32-35 255-278 350
Low Temp Coeff Sm2Co17 SCL18LT 8.4-8.9 0.84-0.89 7.9-8.4 629-668 >18 >1433 17-19 135-151 350
SCL20LT 8.9-9.4 0.89-0.94 8.3-8.9 660-708 >18 >1433 19-21 151-167 350
SCL22LT 9.4-9.8 0.94-0.98 8.7-9.3 692-740 >18 >1433 21-23 167-183 350
High Temp Resistance Sm2Co17 SCG24 9.9-10.4 0.99- 1.04 9.3-9.9 740-788 >23 >1830 23-25 183-199 400
SCG22 9.4-9.9 0.94-0.99 8.8-9.4 700-748 >23 >1830 21-23 167-183 450
SCG20 8.9-9.4 0.89-0.94 8.3-8.9 660-708 >23 >1830 19-21 151-167 500

Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications

Why Choose JN SmCo Magnet

Robust Supply Chain

Our annual production capacity is 1000 tons.
The company with China’s No.1 rare earth miner Chinalco has a strategic partnership, with a complete production chain and a sound quality assurance system.

Production technology leads the industry
Company covers all types of 1:5 series samarium cobalt and 2:17 series samarium cobalt full range of product numbers. It is also one of the few domestic companies capable of producing low temperature coeicients and the only one able to stably produce high coercivity (Br:≥1.02T) super high temperature magnets at 550 degrees Celsius.
The coercivity of ordinary samarium cobalt magnets is approximately 2kOe. In contrast, the coercivity of our company's high-temperature magnets remains at 6.51kOe, experiencing less than 5% loss in magnetic properties at the same temperature.

Permanent Magnet SmCo Block Tolerance 0.02mm Working Temp 350℃ for Industrial Applications
