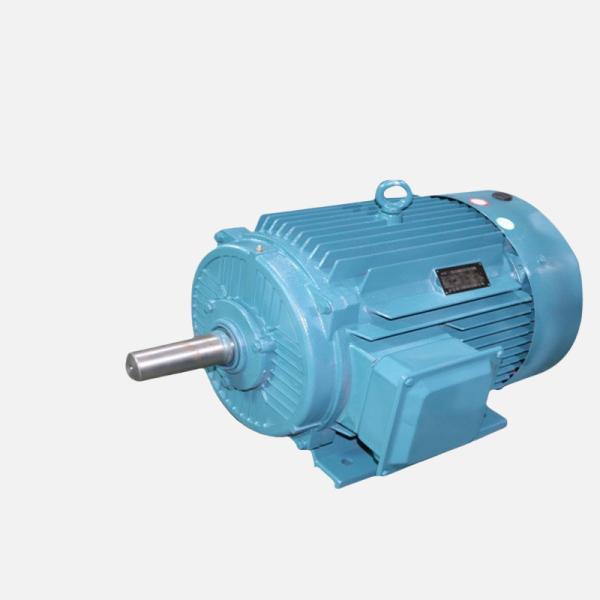

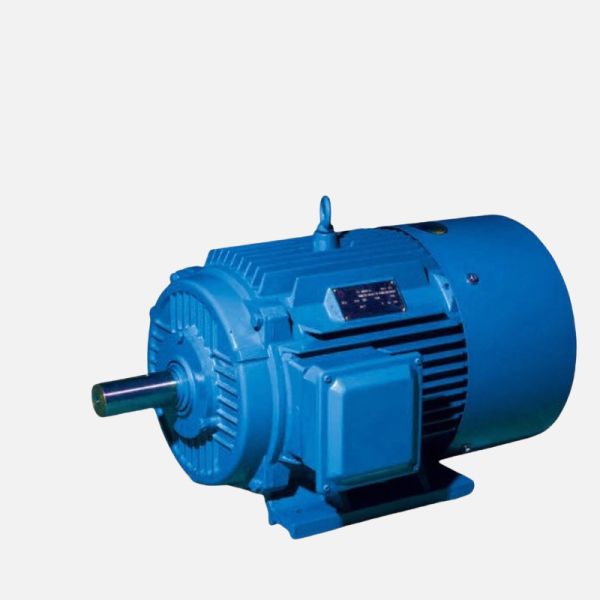

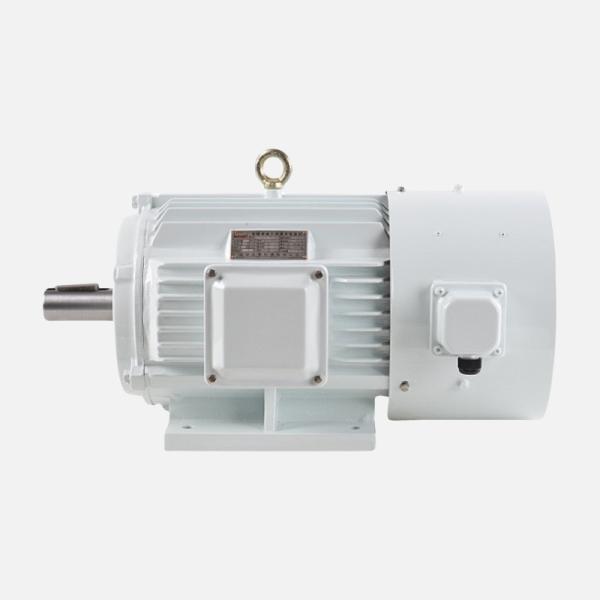

IP54/IP55 Blushless AC Synchronous Motor with Speed Control Adjustment via VFD
Product Description:
Permanent Magnet Synchronous Motor
The Permanent Magnet Synchronous Motor (PMSM) is a type of brushless DC electric motor that uses permanent magnets attached to the rotor to create a magnetic field. This type of motor is known for its high efficiency and power density, making it a popular choice in various industries.
Product Attributes
- Insulation Level: F
- Efficiency Level: IE4
- Protection Grade: IP54/IP55
- Category: Electric Wrenches
- Cooling Type: IC01
The PMSM is classified as a multiphase permanent magnet motor, meaning it has multiple phases, or windings, on the stator. This allows for a more efficient and smoother operation compared to single-phase motors.
Key Features
The Permanent Magnet Synchronous Motor boasts several key features that make it a top choice for various applications:
- High Efficiency: The PMSM has a high efficiency level of IE4, meaning it can convert a large percentage of electrical energy into mechanical energy with minimal losses.
- High Power Density: Due to its compact design and use of permanent magnets, the PMSM has a high power density, meaning it can produce a large amount of torque in a smaller frame size.
- Smooth and Precise Operation: The use of permanent magnets and multiphase windings allows the PMSM to operate smoothly and precisely, making it ideal for precise control applications.
- Low Maintenance: Since the PMSM does not use brushes, there is less wear and tear on the motor, resulting in lower maintenance costs and longer lifespan.
Applications
The Permanent Magnet Synchronous Motor is suitable for a wide range of applications, including:
- Electric vehicles
- Industrial machinery
- Robotics
- Renewable energy systems
- Medical equipment
- And more
With its high efficiency, power density, and smooth operation, the PMSM is a versatile motor that can be used in various industries and applications.
Conclusion
The Permanent Magnet Synchronous Motor is a highly efficient and powerful motor that offers precise operation and low maintenance. Its compact design and use of permanent magnets make it an excellent choice for various applications, making it a valuable asset in the world of electric motors.
Features:
- Product Name: Permanent Magnet Synchronous Motor
- Category: Electric Wrenches
- Type: Permanent Magnet
- Speed Adjust: By VFD
- Insulation level: F
- Rated voltage: 380V Or Made To Order
- Permanent Magnet AC Motor
- Multiphase Permanent Magnet Motor
- Brushless DC Electric Motor
Technical Parameters:
| Product Name | Permanent Magnet Synchronous Motor |
| Model Number | PMSM |
| Type | Magnetic Synchronous Motor, Internal Permanent Magnet Motor |
| Rated Speed | 750r~3000r |
| Rated Voltage | 380V or Made To Order |
| Rated Output | 1.1~11KW |
| Speed Adjust | By VFD |
| Dimensions | As Customers' Requirements |
| Phase | Three-phase, Three Phase |
| Cooling Type | IC01 |
| Category | Electric Wrenches |
| Insulation Level | F |
| Protection Grade | IP54/IP55 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg |
| HCP90S-2 | 1.5 | 2.8 | 3000 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
| HCP90L-2 | 2.2 | 4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7 | 2 | 26.5 |
| HCP100L-2 | 3 | 5.4 | 3000 | 89.7 | ≥0.95 | 3.1 | 7.5 | 2 | 34 |
| HCP112M-2 | 4 | 7.2 | 3000 | 90.7 | ≥0.95 | 3.1 | 7.5 | 2 | 41 |
| HCP132S-2 | 5.5 | 9.8 | 3000 | 92 | ≥0.95 | 3.1 | 7.5 | 2 | 60 |
| HCP132M-2 | 7.5 | 13.2 | 3000 | 92.5 | ≥0.95 | 3.1 | 7.5 | 2 | 63 |
| HCP160M-2 | 11 | 19.3 | 3000 | 93.5 | ≥0.95 | 3 | 7.5 | 2 | 109 |
| HCP160L-2 | 15 | 26 | 3000 | 93.8 | ≥0.95 | 3 | 7.5 | 2 | 119 |
| HCP180M-2 | 22 | 38 | 3000 | 94.7 | ≥0.95 | 3 | 7.5 | 1.8 | 173 |
| HCP180M-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 186 |
| HCP180L-2 | 37 | 63.8 | 3000 | 95.3 | ≥0.95 | 3 | 7.5 | 1.8 | 218 |
| HCP200L-2 | 30 | 51.3 | 3000 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 225 |
| HCP200L-2 | 37 | 63.5 | 3000 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 245 |
| HCP200L-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 265 |
| HCP225S-2 | 45 | 76.5 | 3000 | 95.6 | ≥0.95 | 3 | 7.5 | 1.8 | 306 |
| HCP225M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 340 |
| HCP250M-2 | 55 | 94 | 3000 | 95.8 | ≥0.95 | 3 | 7.5 | 1.8 | 385 |
| HCP280S-2 | 75 | 128 | 3000 | 96 | ≥0.95 | 3 | 7.5 | 1.8 | 518 |
| HCP280M-2 | 90 | 153.3 | 3000 | 96.1 | ≥0.95 | 3 | 7.5 | 1.8 | 550 |
| HCP315S-2 | 110 | 187.3 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.8 | 932 |
| HCP315M-2 | 132 | 225 | 3000 | 96.2 | ≥0.95 | 2.9 | 7.1 | 1.6 | 982 |
| HCP315L-2 | 160 | 272 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1100 |
| HCP315L-2 | 180 | 306 | 3000 | 96.5 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1180 |
| HCP315L-2 | 200 | 340 | 3000 | 96.6 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1280 |
| HCP355M-2 | 250 | 426 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1720 |
| HCP355L-2 | 315 | 533 | 3000 | 96.8 | ≥0.95 | 2.9 | 7.1 | 1.6 | 1980 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg |
| HCP90S-4 | 1.1 | 2.05 | 1500 | 88 | ≥0.95 | 3.1 | 7 | 2 | 23 |
| HCP90L-4 | 1.5 | 2.78 | 1500 | 88.5 | ≥0.95 | 3.1 | 7 | 2 | 27.5 |
| HCP100L-4 | 2.2 | 3.98 | 1500 | 90.2 | ≥0.95 | 3.1 | 7.0 | 2 | 35 |
| HCP100L-4 | 3.0 | 5.4 | 1500 | 90.7 | ≥0.95 | 3.1 | 7.0 | 2 | 40 |
| HCP112M-4 | 4.0 | 7.2 | 1500 | 91 | ≥0.95 | 3.1 | 7.0 | 2 | 45 |
| HCP132S-4 | 5.5 | 9.7 | 1500 | 92.6 | ≥0.95 | 3.1 | 7.0 | 2 | 63 |
| HCP132M-4 | 7.5 | 13.2 | 1500 | 93.0 | ≥0.95 | 3 | 7.0 | 2 | 75 |
| HCP160M-4 | 11.0 | 19.3 | 1500 | 94.0 | ≥0.95 | 3 | 7.5 | 2 | 115 |
| HCP160L-4 | 15.0 | 26 | 1500 | 94.3 | ≥0.95 | 3 | 7.5 | 1.8 | 135 |
| HCP180M-4 | 18.5 | 32 | 1500 | 95 | ≥0.95 | 3 | 7.5 | 1.8 | 172 |
| HCP180L-4 | 22.0 | 38 | 1500 | 95.2 | ≥0.95 | 3 | 7.5 | 1.8 | 185 |
| HCP200L-4 | 30.0 | 51.6 | 1500 | 95 | ≥0.95 | 3 | 7.2 | 1.8 | 235 |
| HCP225S-4 | 37.0 | 63.5 | 1500 | 95.8 | ≥0.95 | 3 | 7.2 | 1.8 | 300 |
| HCP225M-4 | 45.0 | 77 | 1500 | 96.1 | ≥0.95 | 3 | 7.2 | 1.8 | 330 |
| HCP250M-4 | 55.0 | 94 | 1500 | 96.3 | ≥0.95 | 3 | 7.2 | 1.8 | 410 |
| HCP250M-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 438 |
| HCP280S-4 | 75.0 | 128 | 1500 | 96.5 | ≥0.95 | 3 | 7.2 | 1.8 | 518 |
| HCP280M-4 | 90.0 | 153 | 1500 | 97 | ≥0.95 | 3 | 7.2 | 1.8 | 608 |
| HCP280M-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 3 | 7.2 | 1.8 | 650 |
| HCP280M-4 | 132.0 | 223 | 1500 | 96.8 | ≥0.95 | 2.9 | 7.2 | 1.8 | 370 |
| HCP315S-4 | 110.0 | 187.2 | 1500 | 96.7 | ≥0.95 | 2.9 | 6.9 | 1.6 | 935 |
| HCP315L-4 | 160.0 | 272 | 1500 | 96.8 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1100 |
| HCP315L-4 | 200.0 | 340 | 1500 | 96.9 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1350 |
| HCP355M-4 | 250.0 | 423 | 1500 | 97.0 | ≥0.95 | 2.9 | 6.9 | 1.6 | 1900 |
| HCP355L-4 | 355.0 | 602 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2100 |
| HCP355L-4 | 400.0 | 678 | 1500 | 97.1 | ≥0.95 | 2.9 | 6.9 | 1.6 | 2300 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg |
| HCP90S-6 | 0.75 | 1.4 | 1000 | 87.2 | ≥0.95 | 3.1 | 5.5 | 2 | 24 |
| HCP90L-6 | 1.1 | 2.03 | 1000 | 88.7 | ≥0.95 | 3.1 | 5.5 | 2 | 26 |
| HCP100L-6 | 1.5 | 2.73 | 1000 | 89.8 | ≥0.95 | 3.1 | 6.5 | 2 | 35 |
| HCP112M-6 | 2.2 | 3.97 | 1000 | 91 | ≥0.95 | 3.1 | 6.5 | 2 | 40 |
| HCP132S-6 | 3 | 5.37 | 1000 | 92 | ≥0.95 | 3.1 | 6.5 | 2 | 60 |
| HCP132M-6 | 4 | 7.08 | 1000 | 92.8 | ≥0.95 | 3.1 | 6.5 | 2 | 75 |
| HCP132M-6 | 5.5 | 9.68 | 1000 | 93.5 | ≥0.95 | 3.1 | 6.5 | 2 | 78 |
| HCP160M-6 | 7.5 | 13 | 1000 | 94.2 | ≥0.95 | 3 | 6.5 | 2 | 110 |
| HCP160L-6 | 11 | 19 | 1000 | 94.7 | ≥0.95 | 3 | 6.5 | 2 | 135 |
| HCP180L-6 | 15 | 25.8 | 1000 | 95.1 | ≥0.95 | 3 | 7 | 2 | 175 |
| HCP200L-6 | 18.5 | 31.8 | 1000 | 95.5 | ≥0.95 | 3 | 7 | 1.8 | 220 |
| HCP200L-6 | 22 | 37.8 | 1000 | 95.8 | ≥0.95 | 3 | 7 | 1.8 | 230 |
| HCP225M-6 | 30 | 51.3 | 1000 | 96.2 | ≥0.95 | 2.9 | 7 | 1.8 | 280 |
| HCP250M-6 | 37 | 63.2 | 1000 | 96.3 | ≥0.95 | 2.9 | 7 | 1.8 | 380 |
| HCP280S-6 | 45 | 76.8 | 1000 | 96.4 | ≥0.95 | 2.9 | 7 | 1.8 | 480 |
| HCP280M-6 | 55 | 93.8 | 1000 | 96.5 | ≥0.95 | 2.9 | 7 | 1.8 | 550 |
| HCP315S-6 | 75 | 128 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 870 |
| HCP315M-6 | 90 | 153 | 1000 | 96.5 | ≥0.95 | 2.8 | 6.7 | 1.6 | 950 |
| HCP315L-6 | 110 | 187 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1130 |
| HCP315L-6 | 132 | 223 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1190 |
| HCP355M-6 | 160 | 263 | 1000 | 96.6 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1720 |
| HCP355M-6 | 200 | 340 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 1900 |
| HCP355L-6 | 250 | 425 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2000 |
| HCP355L-6 | 315 | 536 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2200 |
| HCP355L-6 | 375 | 637 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2300 |
| HCP355L-6 | 400 | 680 | 1000 | 96.7 | ≥0.95 | 2.8 | 6.7 | 1.6 | 2450 |
| Motor model | Rated power | Rated current | Rated speed | Efficiency | Power Factor | Stall torque | Stall current | Pull-out torque | Weight |
| KW | 380V/A | r/min | ŋ% | COSØ | N.M | A | N.M | kg |
| HCP112M-8 | 1.5 | 2.74 | 750 | 90 | ≥0.95 | 3.1 | 6 | 2 | 43 |
| HCP132S-8 | 2.2 | 4 | 750 | 90.4 | ≥0.95 | 3.1 | 6 | 2 | 60 |
| HCP132M-8 | 3 | 5.3 | 750 | 91.5 | ≥0.95 | 3.1 | 6 | 2 | 75 |
| HCP160M-8 | 4 | 7.1 | 750 | 92.3 | ≥0.95 | 3.1 | 6 | 2 | 102 |
| HCP160M-8 | 5.5 | 9.7 | 750 | 93.1 | ≥0.95 | 3.1 | 6 | 2 | 110 |
| HCP160L-8 | 7.5 | 13.2 | 750 | 93.7 | ≥0.95 | 3.1 | 6 | 2 | 131 |
| HCP180M-8 | 11 | 19.2 | 750 | 94.2 | ≥0.95 | 3 | 6.6 | 2 | 175 |
| HCP200L-8 | 15 | 26 | 750 | 94.7 | ≥0.95 | 3 | 6.6 | 2 | 235 |
| HCP225S-8 | 18.5 | 32 | 750 | 95.1 | ≥0.95 | 3 | 6.6 | 1.8 | 280 |
| HCP225M-8 | 22 | 38 | 750 | 95.4 | ≥0.95 | 3 | 6.6 | 1.8 | 300 |
| HCP250M-8 | 30 | 51.5 | 750 | 95.6 | ≥0.95 | 2.9 | 6.6 | 1.8 | 380 |
| HCP280S-8 | 37 | 63.5 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 480 |
| HCP280M-8 | 45 | 77 | 750 | 95.8 | ≥0.95 | 2.9 | 6.6 | 1.8 | 560 |
| HCP315S-8 | 55 | 94.5 | 750 | 95.9 | ≥0.95 | 2.8 | 6.4 | 1.6 | 920 |
| HCP315M-8 | 75 | 128.5 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 990 |
| HCP315L-8 | 90 | 153 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1083 |
| HCP315L-8 | 110 | 188 | 750 | 96 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1180 |
| HCP315L-8 | 132 | 226 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1250 |
| HCP355M-8 | 160 | 275 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 1910 |
| HCP355M-8 | 180 | 308 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2020 |
| HCP355L-8 | 200 | 343 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2080 |
| HCP355L-8 | 250 | 428 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2150 |
| HCP355L-8 | 280 | 480 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2230 |
| HCP355L-8 | 315 | 540 | 750 | 96.1 | ≥0.95 | 2.8 | 6.4 | 1.6 | 2300 |
Applications:
HC Permanent Magnet Synchronous Motor
HC Permanent Magnet Synchronous Motor, also known as PM Synchronous Motor, is a type of Permanent Magnet AC Motor with high efficiency and energy saving features. It is widely used in various industries and applications due to its superior performance and reliable quality.
Brand Name: HC
HC Permanent Magnet Synchronous Motor is manufactured and sold by HC, a leading company in the field of motor production. HC is a trusted brand with a good reputation for providing high-quality products and excellent services.
Model Number: JN-HCP-5
The model number of HC Permanent Magnet Synchronous Motor is JN-HCP-5. This model is designed for heavy-duty applications and is suitable for various industrial environments.
Place of Origin: CHINA
HC Permanent Magnet Synchronous Motor is proudly made in China. With advanced technology and strict quality control, HC ensures that every motor meets international standards and customer requirements.
Certification: ISO9001 CCC CE
HC Permanent Magnet Synchronous Motor has obtained ISO9001, CCC and CE certifications, which demonstrate its compliance with international standards and regulations. This ensures the quality and safety of the motor.
Minimum Order Quantity: 50PCS
The minimum order quantity for HC Permanent Magnet Synchronous Motor is 50PCS. This allows customers to purchase the motor in small quantities for their specific needs and reduces the initial investment.
Price: Negotiable
The price of HC Permanent Magnet Synchronous Motor is negotiable. HC offers competitive prices to meet different budget requirements of customers.
Packaging Details: By Sea Pallet /By Air Carton / By Express Packaging
HC Permanent Magnet Synchronous Motor can be packaged in various ways, such as sea pallets, air cartons, or express packaging. This allows for flexible and convenient transportation options for customers.
Delivery Time: 25 Days
The delivery time for HC Permanent Magnet Synchronous Motor is 25 days. With efficient production and management, HC ensures timely delivery to meet customers' project schedules.
Payment Terms: L/C,T/T
HC accepts various payment terms, including L/C and T/T, to provide customers with flexible and convenient payment options.
Supply Ability: 30K PCS/Month
With advanced production technology and facilities, HC has a strong supply ability of 30K PCS per month. This enables HC to meet the demands of customers with large orders in a timely manner.
Phase: Three-phase, Three Phase
HC Permanent Magnet Synchronous Motor has a three-phase design, providing stable and efficient power output for various applications.
Speed Adjust: By VFD
The speed of HC Permanent Magnet Synchronous Motor can be easily adjusted by using a VFD (Variable Frequency Drive). This allows for precise control of the motor speed, making it suitable for different applications.
Main Parts: Imported
HC Permanent Magnet Synchronous Motor adopts high-quality main parts that are imported from trusted suppliers. This ensures the reliability and durability of the motor.
Cooling Type: IC01
HC Permanent Magnet Synchronous Motor has an IC01 cooling type, which provides efficient heat dissipation and ensures the motor operates at a safe temperature.
Efficiency Level: IE4
HC Permanent Magnet Synchronous Motor has an efficiency level of IE4, which is the highest level in the current motor efficiency standards. This means the motor has excellent energy-saving features and can significantly reduce operation costs for customers.
Application Fields and Scenarios
HC Permanent Magnet Synchronous Motor can be widely used in various fields and scenarios, including:
- Industrial machinery and equipment
- Electric vehicles
- Compressors
- Pumps and fans
- Automation systems
- Renewable energy systems
In these applications, HC Permanent Magnet Synchronous Motor can provide efficient and reliable power output, contributing to the smooth operation of various processes and systems.
Overall, HC Permanent Magnet Synchronous Motor is a high-quality, efficient, and energy-saving motor that offers great value for customers. With its advanced technology, reliable quality, and wide range of applications, it is an ideal choice for various industries and scenarios.
Customization:
Customized Service for Permanent Magnet Synchronous Motor - HC
| Brand Name: | HC |
| Model Number: | JN-HCP-5 |
| Place of Origin: | CHINA |
| Certification: | ISO9001 CCC CE |
| Minimum Order Quantity: | 50PCS |
| Price: | Negotiable |
| Packaging Details: | By Sea Pallet /By Air Carton / By Express Packaging |
| Delivery Time: | 25 Days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30K PCS/Month |
| Phase: | Three-phase, Three Phase |
| Dimensions: | As Customers’ Requirements |
| Main Parts: | Imported |
| Insulation level: | F |
| Working System: | S1 |
At HC, we understand that every client has unique needs and requirements. That's why we offer customized services for our Permanent Magnet Synchronous Motor - JN-HCP-5. With our high quality and reliable performance, we have obtained ISO9001, CCC, and CE certifications for our product.
Our motor is a three-phase external rotor motor, equipped with imported parts for better efficiency and durability. It also has an F class insulation level for added safety. To cater to your specific needs, we offer flexible packaging options such as By Sea Pallet, By Air Carton, and By Express Packaging.
We value your time and strive to deliver our product in a timely manner, with a delivery time of 25 days. We also offer flexible payment options such as L/C and T/T. With a strong supply capacity of 30K PCS per month, we ensure that you will receive your order on time.
Choose HC for a customized Permanent Magnet Synchronous Motor that meets your exact requirements. Contact us now for more information and to place your order.
Packing and Shipping:
Packaging:
The Permanent Magnet Synchronous Motor is carefully packaged to ensure safe and secure delivery to our customers. Each motor is individually wrapped in protective materials and placed in a sturdy cardboard box. The box is then sealed and labelled with the product's information and handling instructions.
For larger orders, the motors are packed in wooden crates to provide extra protection during transportation.
We also offer customized packaging options to meet the specific needs of our customers.
Shipping:
We offer various shipping options to accommodate our customers' preferences and delivery timeline. Our standard shipping method is by sea, but we also offer air and land transportation for faster delivery.
All shipments are carefully tracked to ensure timely delivery and we provide our customers with the tracking information for their orders.
For international shipments, we handle all necessary customs procedures and documentation to ensure a smooth delivery process.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is HC.
- Q: What is the model number of this product?
- A: The model number of this product is JN-HCP-5.
- Q: Where is this product manufactured?
- A: This product is manufactured in China.
- Q: What certifications does this product have?
- A: This product has ISO9001, CCC, and CE certifications.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 50PCS.
- Q: Is the price negotiable?
- A: Yes, the price for this product is negotiable.
- Q: How is this product packaged?
- A: This product can be packaged by sea pallet, air carton, or express packaging.
- Q: How long is the delivery time for this product?
- A: The delivery time for this product is 25 days.
- Q: What are the payment terms for this product?
- A: The payment terms for this product are L/C and T/T.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is 30,000 PCS per month.
