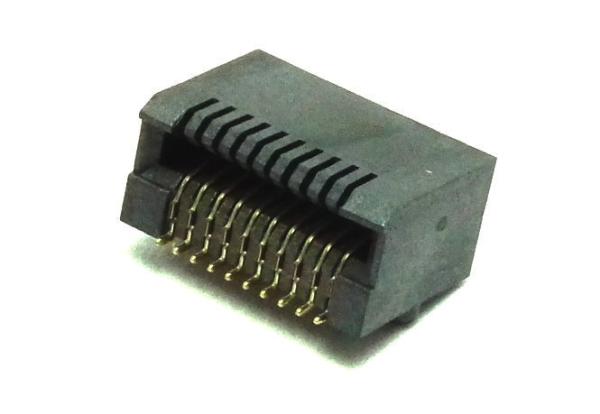

Female SFP Copper Connector Copper Alloy High Temperature Thermoplastic Housing
Female SFP Copper Connector Copper Alloy High Temperature Thermoplastic Housing
Female SFP Copper Connector Copper Alloy High Temperature Thermoplastic Housing
Female SFP Copper Connector Copper Alloy High Temperature Thermoplastic Housing
Female SFP Copper Connector Copper Alloy High Temperature Thermoplastic Housing
Female SFP Copper Connector Copper Alloy High Temperature Thermoplastic Housing
Specifications
Brand Name :
B-TOP
Model Number :
BSFP(02)S-A124-C92(SFP 1x1)
Place of Origin :
Dongguan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
CONTACT :
COPPER ALLOY
HOUSING :
HIGH TEMPERATURE THERMOPLASTIC
CAGE :
COPPER ALLOY
DURABILITY :
1OO CYCLES
gender :
female
Certifiate :
ROHS COMPLIANT
Description

Single Port SFP Cage and connector Suite

Detailed Product Description:

Single Port SFP Cage and connector Suite

Features and Benefits:

  1. Compliant with IEEE 802.3 standard
  2. 350µH minimum OCL with 8mA bias current
  3. Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
  4. High performance for maximum EMI suppression
  5. RoHS peak wave solder temperature rating 260°C

Spectifications:

Electrical Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC 4 contacts---500g
Insulation resistance: 500MΩ Min 6 contacts---750g
Withstand voltage: AC 1500Vrms 50Hz or 60Hz 1 Min 8 contacts---900g
Contact resistance: 20mΩ Max 10 contacts---1050g
Retention strength: 7.7Kg between jack and plug
Durability: 750 mating cycles mini
Material
Housing: 1) glass filled PA66(ul 94v-0)
2) glass filled PA46(ul 94v-0)
3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
2) 0.35mm thickness phosphor bronze alloy
selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature: -20℃-70℃, -40℃-85℃
Relative humidity: 70%±10% RH

Electrical Specifications at 25℃

Insertion
Loss
dB max		 Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)		 Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500
