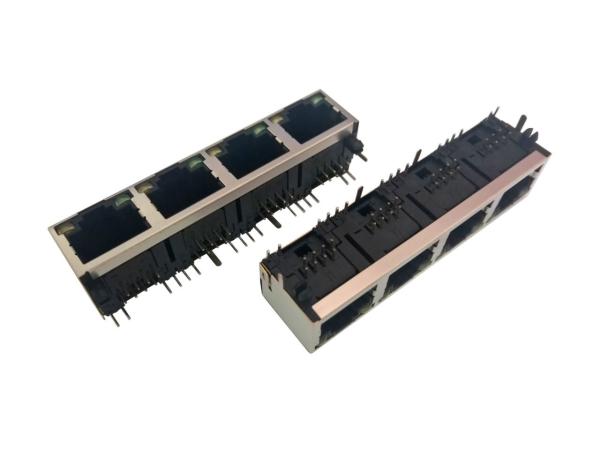

1x4 Combo RJ45 Multi Port Jack 20mΩ Contact Resistance High Anti - Electric Strength
1x4 Combo RJ45 Multi Port Jack 20mΩ Contact Resistance High Anti - Electric Strength
1x4 Combo RJ45 Multi Port Jack 20mΩ Contact Resistance High Anti - Electric Strength
1x4 Combo RJ45 Multi Port Jack 20mΩ Contact Resistance High Anti - Electric Strength
Specifications
Brand Name :
B-TOP
Model Number :
B56LED(11-15)W-C111-B52
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000 pcs/day
Delivery Time :
10-15 work days
Port :
1x4
LED :
Yes
EMI Finger :
No
Housing: :
glass filled PA66
Withstand voltage: :
AC 1500Vrms 50Hz
Retention strength :
7.7Kg
Price :
Negotiable
Description

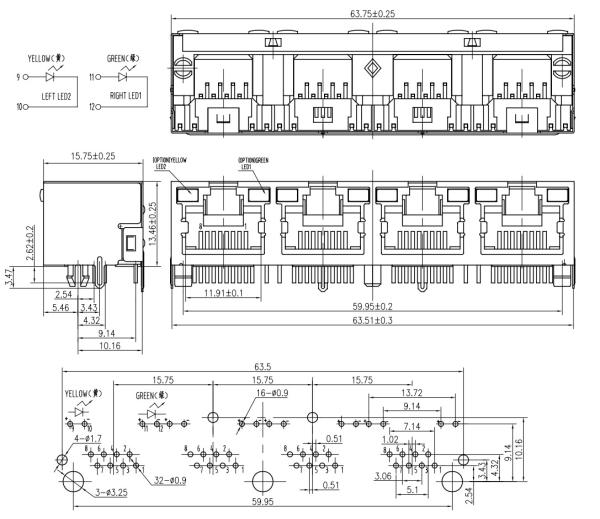

1x4 Combo RJ45 Female Jacks with LED without Transformer

Detailed Product Description:

1x4 Combo RJ45 Female Jacks with LED without Transformer

Meet or exceeds IEEE802.3 standard.

Main use

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...

Spectifications

Electrical Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC 4 contacts---500g
Insulation resistance: 500MΩ Min 6 contacts---750g
Withstand voltage: AC 1500Vrms 50Hz or 60Hz 1 Min 8 contacts---900g
Contact resistance: 20mΩ Max 10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
Durability: 750 mating cycles mini
Material
Housing: 1) glass filled PA66(ul 94v-0)
2) glass filled PA46(ul 94v-0)
3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
2) 0.35mm thickness phosphor bronze alloy
selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature: -20℃-70℃, -40℃-85℃
Relative humidity: 70%±10% RH

Electrical Specifications at 25℃

Insertion
Loss
dB max		 Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)		 Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

About us:

Dongguan BroadTop Electronic Technology Co., Ltd. located in Dongguan Guangdong China, which is a professional and leading manufacturer of RJ45 connectors offering high quality products at a competitive price.

The company established in 2012 which is a young company. We engaged in designing, manufacturing and marketing the connectors for Ethernet networking applications, main products including: Integrated (RJ45) Connector Module (ICM), RJ45 Jack without magnetics, RJ45 with USB and SFP Cage & Connector.

We have obtained CE & RoHS certificates for our products, and we passed the audit for ISO9001:2008 standard certification in 2012, and we passed its renewal audit each year.

Our quality mission is to provide products and services using established quality standards and to meet or exceed customer expectations. To fulfill this objective, we strive to produce components and assemblies that embody optimum levels of reliability and performance in their design, manufacture, and delivery.
