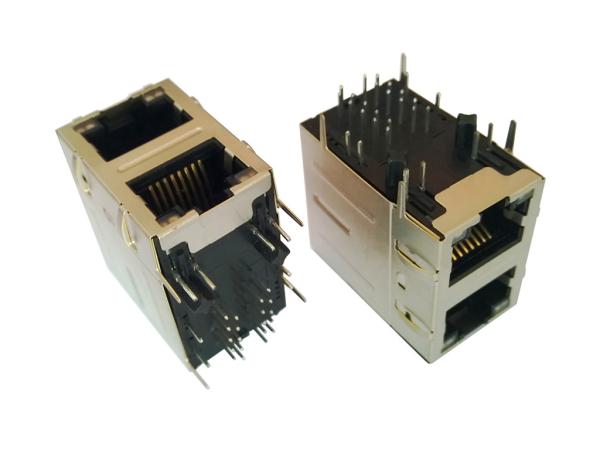

2x1 Dual RJ45 Jack 6u Gold Plated AC 1500Vrms 50Hz Withstand Voltage
2x1 Dual RJ45 Jack 6u Gold Plated AC 1500Vrms 50Hz Withstand Voltage
2x1 Dual RJ45 Jack 6u Gold Plated AC 1500Vrms 50Hz Withstand Voltage
2x1 Dual RJ45 Jack 6u Gold Plated AC 1500Vrms 50Hz Withstand Voltage
Specifications
Brand Name :
B-TOP
Model Number :
B59(48-17)G8-10A-1623-C12
Place of Origin :
Dongguan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000 pcs/day
Delivery Time :
10 days
Packaging Details :
540pcs/carton/11kg
Gender :
Female
Ports :
2x1
Plastic :
PA46
LED :
Green/Yellow
Gold-Plated :
6u"
Current rating: :
1 - 1.5A
Description

2*1 Dual Port RJ45 Connector with bicolor LEDs and Gigabit Filters

Detailed Product Description

2*1 2*2 2*3 2*4 2*6 2*8 port are also available.

Meet or exceeds IEEE802.3 standard.

Main use

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...

About us:

Dongguan BroadTop Electronic Technology Co., Ltd. located in Dongguan Guangdong China, which is a professional and leading manufacturer of RJ45 connectors offering high quality products at a competitive price.

The company established in 2012 which is a young company. We engaged in designing, manufacturing and marketing the connectors for Ethernet networking applications, main products including: Integrated (RJ45) Connector Module (ICM), RJ45 Jack without magnetics, RJ45 with USB and SFP Cage & Connector.

More 2x1 gigabit rj45 jacks

Part Number Schematic LEDs EMI Spring Gold Plating Temperature
B59(45-01)G8-28-1223-C12 G8-28 G/Y Yes 6u" 0 - 70
B59(45-05)G8-28-1213-C12 G8-28 G/Y No 6u" 0 - 70
B59(45-06)G8-56A-1323-C12 G8-56A G/G Yes 6u" 0 - 70
B59(45-07)G8-56-1723-C12 G8-56 G/Y Yes 6u" 0 - 70
B59(45-08)G8-10A-1723-C12 G8-10A G/Y Yes 6u" 0 - 70
B59(45-11)G8-28-1613-C12 G8-28 G/GY No 6u" 0 - 70
B59(45-26)G8-28-1623-C12 G8-28 GY/GY Yes 6u" 0 - 70
B59(45-32)G8-82-1123-C12 G8-82 Y/G Yes 6u" 0 - 70
B59(45-34)G8-28-1623-C12 G8-28 GY/GY Yes 6u" 0 - 70
B59(45-39)G8-28-1613-C12 G8-28 GY/GY No 6u" 0 - 70
B59(45-40)G8-60-1623-C12 G8-60 G/GY Yes 6u" 0 - 70
B59(45-41)G8-28-1223-C12 G8-28 G/Y Yes 6u" 0 - 70
B59(45-42)G8-86-1623-C12 G8-86 G/GY Yes 6u" 0 - 70
B59(45-43)G8-28-1123-C12 G8-28 Y/G Yes 6u" 0 - 70
B59(45-45)G12-01-1623-C12 G12-01 Y/GO Yes 6u" 0 - 70
B59(45-47)G8-28-1623-C12 G8-28 Y/GO Yes 6u" 0 - 70
B59(45-51)G8-28-1323-C12 G8-28 G/G Yes 6u" 0 - 70
B59(45-54)G8-60-1613-C12 G8-60 Y/GO No 6u" 0 - 70
B59(45-58)G8-60-1313-C12 G8-60 G/G No 6u" 0 - 70
B59(45-59)G8-28-1613-C12 G8-28 Y/GO No 6u" 0 - 70
B59(45-62)G8-60-1613-C12 G8-60 GY/GY No 6u" 0 - 70
B59(45-65)G8-28-1113-C12 G8-28 Y/G No 6u" 0 - 70
B59(45-68)G8-101-1223-C12 G8-101 G/Y Yes 6u" 0 - 70
B59(45-69)G8-60-1213-C12 G8-60 G/Y No 6u" 0 - 70
B59(45-72)G8-60-1623-C12 G8-60 GO/Y Yes 6u" 0 - 70
B59(45-83)G8-60-1623-C12 G8-60 GY/GY Yes 6u" 0 - 70
B59(45-86)G8-28-1623-C12 G8-28 GY/GY Yes 6u" 0 - 70
B59(45-97)G8-28-1623-C12 G8-28 GO/Y Yes 6u" 0 - 70
B59(45-98)G8-09-1323-C12 G8-09 G/G Yes 6u" 0 - 70
B59(45-99)G8-82-1123-C12 G8-82 Y/G Yes 6u" 0 - 70
B59(45-100)G8-82-1125-C12 G8-82 Y/G Yes 30u" 0 - 70
B59(45-101)G8-28-1223-C12 G8-28 G/Y Yes 6u" 0 - 70
B59(45-102)G8-09-1623-C12 G8-09 Y/GY Yes 6u" 0 - 70
B59(45-105)G8-10B-1223-C12 G8-10B G/Y Yes 6u" -40 - 85
B59(45-106)G8-56A-1623-C12 G8-56A GY/Y Yes 6u" 0 - 70
B59(45-111)G8-60-1623-C12 G8-60 OG/Y Yes 6u" 0 - 70
B59(45-115)G8-151A-1623-C12 G8-151A G/GY Yes 6u" 0 - 70
B59(45-118)G8-136-1113-C12 G8-136 Y/G No 6u" 0 - 70
B59(45-121)G8-09-1223-C12 G8-09 G/Y Yes 6u" 0 - 70
B59(45-122)G8-60-1624-C12 G8-60 G/GY Yes 15u" 0 - 70
B59(45-123)G8-56A-1123-C12 G8-56A Y/G Yes 6u" 0 - 70
B59(45-126)G8-60-1614-C92 G8-60 GO/G No 15u" 0 - 70
B59(45-128)G8-60-1623-C92 G8-60 GO/Y Yes 6u" 0 - 70
B59(45-130)G8-101-1613-C12 G8-101 Y/GO No 6u" 0 - 70
B59(45-132)G8-28-1213-C12 G8-28 G/Y No 6u" 0 - 70
B59(45-133)G8-28B-1615-C92 G8-28B GO/G No 30u" -40 - 85
B59(45-135)G8-101-1623-C12 G8-101 GY/GY Yes 6u" 0 - 70
B59(45-136)G8-09B-1223-C12 G8-09B G/Y Yes 6u" -40 - 85
B59(45-139)G8-101B-1224-C92 G8-101B G/Y Yes 15u" -40 - 85
B59(45-140)G8-101-1123-C12 G8-101 Y/G Yes 6u" 0 - 70
B59(45-141)G8-60-1723-C92 G8-60 G/G Yes 6u" 0 - 70
B59(45-142)G8-60B-1623-C12 G8-60B GY/GY Yes 6u" -40 - 85
B59(45-145)G8-60-1723-C12 G8-60 G/G Yes 6u" 0 - 70
B59(45-146)G8-28H-1223-C12 G8-28H G/Y Yes 6u" 0 - 70
B59(45-148)G8-151A-1213-C12 G8-151A G/Y No 6u" 0 - 70
B59(45-149)G8-151A-1623-C12 G8-151A Y/GO Yes 6u" 0 - 70
B59(45-150)G8-151A-1613-C12 G8-151A Y/GO No 6u" 0 - 70
B59(45-151)G8-28-1623-C12 G8-28 OG/Y Yes 6u" 0 - 70
B59(45-152)G8-28-1613-C12 G8-28 G/GO No 6u" 0 - 70
B59(45-156)G8-60-1213-C92 G8-60 G/Y No 6u" 0 - 70
B59(45-158)G8-60B-1223-C12 G8-60B G/O Yes 6u" -40 - 85
B59(45-160)G8-82-1223-C12 G8-82 G./Y Yes 6u" 0 - 70
B59(45-161)G8-81-1123-C12 G8-81 Y/G Yes 6u" 0 - 70
B59(45-165)G8-82B-1124-C12 G8-82B Y/G Yes 15u" -40 - 85
B59(45-167)G8-91A-1115-C12 G8-91A Y/G No 30u" 0 - 70
B59(45-168)G8-28-1623-C12 G8-28 G/OG Yes 6u" 0 - 70
B59(45-172)G8-120A-1623-C12 G8-120A GY/GY No 6u" 0 - 70
B59(45-173)G8-28-1215-C12 G8-28 G/O Yes 30u" 0 - 70
B59(45-174)G8-60-1623-C92 G8-60 G Yes 6u" 0 - 70
B59(45-175)G8-60-1123-C12 G8-60 Y/G Yes 6u" 0 - 70
B59(45-176)G8-28-1323-C12 G8-28 G/G Yes 6u" 0 - 70
B59(45-177)G8-91-1215-C92 G8-91 G/Y No 30u" 0 - 70
B59(45-179)G8-60F-1226-C12 G8-60F G/Y Yes 50u" 0 - 70
B59(45-180)G8-60-1615-C92 G8-60 GO/G No 30u" 0 - 70
B59(45-182)G8-60-1215-C92 G8-60 G/Y No 30u" 0 - 70
B59(45-184)G8-60-1613-C12 G8-60 OG/G No 6u" 0 - 70
B59(45-185)G8-60H-1613-C12 G8-60H G/GO No 6u" 0 - 70
B59(45-186)G8-28-1623-C12 G8-28 G/OG Yes 6u" 0 - 70
B59(45-187)G8-10D-1213-C12 G8-10D G/Y No 6u" 0 - 70
B59(45-188)G8-060-1623-C12 G8-060 GO/GO Yes 6u" 0 - 70
B59(46-01)GP8-99-1623-C12 GP8-99 GY/GY Yes 6u" 0 - 70
B59(46-11)GP8-19-1123-C12 GP8-19 Y/G Yes 6u" 0 - 70
B59(46-12)GP8-19-1623-C12 GP8-19 GO/GO Yes 6u" 0 - 70
B59(46-15)GP8-19-1023-C12 GP8-19 None Yes 6u" 0 - 70
B59(46-17)GP8-19B-1623-C12 GP8-19B GY/GY Yes 6u" -40 - 85
B59(46-18)GP8-19B-1613-C12 GP8-19B GY/GY No 6u" -40 - 85
B59(46-22)GP8-19H-1613-C12 GP8-19H GY/GY No 6u" 0 - 70
B59(46-23)GP8-19B-1613-C12 GP8-19B GY/GY No 6u" 0 - 70
B59(46-25)GP8-141-1613-C12 GP8-141 GY/GY No 6u" 0 - 70
B59(46-29)GP8-19D-1113-C12 GP8-19D Y/G No 6u" 0 - 70
B59(46-31)GP8-67-1113-C12 GP8-67 Y/G No 6u" 0 - 70
B59(47-01)G8-10-1023-C12 G8-10 None Yes 6u" 0 - 70
B59(47-02)G8-28-1023-C12 G8-28 None Yes 6u" 0 - 70
B59(47-07)G8-56-1023-C12 G8-56 None Yes 6u" 0 - 70
B59(47-10)G8-28-1012-C12 G8-28 None No 6u" 0 - 70
B59(47-13)G8-180A-1023-C12 G8-180A None Yes 6u" 0 - 70
B59(47-15)G8-49A-1023-C12 G8-49A None Yes 6u" 0 - 70
B59(47-20)G8-60-1023-C92 G8-60 None Yes 6u" 0 - 70
B59(48-01)G8-10-1623-C12 G8-10 GY/GY Yes 6u" 0 - 70
B59(48-02)G8-56A-1223-C12 G8-56A G/Y Yes 6u" 0 - 70
B59(48-07)G8-91-1123-C12 G8-91 Y/G Yes 6u" 0 - 70
B59(48-08)G8-91-1113-C12 G8-91 Y/G No 6u" 0 - 70
B59(48-11)G8-128-1623-C12 G8-128 GO/G Yes 6u" 0 - 70
B59(48-12)G8-56-1323-C12 G8-56 G/G Yes 6u" 0 - 70
B59(48-13)G8-128-1623-C12 G8-128 GY/GY Yes 6u" 0 - 70
B59(48-15)G8-128-1623-C12 G8-128 GO/G Yes 6u" 0 - 70
B59(48-16)G8-134-1623-C12 G8-134 GY/GY Yes 6u" 0 - 70
B59(48-17)G8-10A-1623-C12 G8-10A GO/Y Yes 6u" 0 - 70
B59(48-18)G8-56A-1323-C12 G8-56A G/G Yes 6u" 0 - 70
B59(48-20)G8-152A-1624-C22 G8-152A Y/GY Yes 15u" 0 - 70
B59(48-23)G8-10A-1623-C92 G8-10A Y/GO Yes 6u" 0 - 70
B59(48-26)G8-181-1624-C22 G8-181 Y/GY Yes 15u" 0 - 70
B59(48-28)G8-180A-1623-C12 G8-180A G/GO Yes 6u" 0 - 70
B59(48-31)G8-56A-1623-C12 G8-56A GO/Y Yes 6u" 0 - 70
B59(48-33)G8-56A-1623-C12 G8-56A GO/Y Yes 6u" 0 - 70
B59(48-34)G8-180B-1623-C12 G8-180B G/GO Yes 6u" -40 - 85
B59(48-36)G8-56I-1323-C12 G8-56I G/G Yes 6u" 0 - 70

Spectifications

Electrical Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC 4 contacts---500g
Insulation resistance: 500MΩ Min 6 contacts---750g
Withstand voltage: AC 1500Vrms 50Hz or 60Hz 1 Min 8 contacts---900g
Contact resistance: 20mΩ Max 10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
Durability: 750 mating cycles mini
Material
Housing: 1) glass filled PA66(ul 94v-0)
2) glass filled PA46(ul 94v-0)
3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
2) 0.35mm thickness phosphor bronze alloy
selective gold plating over nickel, 3μ″,6μ″,15μ″,30μ″,50μ″
Shielding: 0.2mm thickness copper alloy with tin plated
Working temperature: -20℃-70℃, -45℃-80℃
Relative humidity: 70%±10% RH

Electrical Specifications at 25℃

Insertion
Loss
dB max		 Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)		 Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500
