Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump
Specifications
Brand Name :
Gempump
Model Number :
50WQ20-7-0.75
Certification :
ISO9001 CE
Place of Origin :
Shijiazhuang China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
WQ Submersible Waste Dredge Pump
Material :
Cast Iron
Application :
Sewage,Slurry,Tailing,Mine
Theory :
Centrifugal Water Pump
Warranty :
1 year
Power :
Electric Motor
Voltage :
AC220V AC380V AC415V 50HZ
Description

Non-Clog Sewage Pump Sewage Submersible Pump Household Sewage Pump

WQD, WQ series submersible sewage pump is a new product adopting foreign advanced technology. Single/double channel(s) impeller. Mechanical seal is on both ends. Hard anti-corrosive tungsten carbine or titanium alloy materials are used as seal.

Sewage Submersible Non-clog Water Pump Specification
Product name
WQD/WQ Series Sewage Submersible Pump
Model
50JYWQ15-30-1200-3
Pressure
High Pressure
Voltage
220/380V
Application Fields
1. Wastewater discharge from factories, shopping malls, hospitals, hotels
2. Domestic sewage, rainwater discharge in residential
areas, parking lots, municipal works
3. Wastewater treatment plant, sewage discharge from livestock farms
4. Mud water and gray
water pumping on construction sites and mines
5. Water pumping for agriculture and aquaculture
6. Methane pools and field irigation in countryside
Pump
Max immersion depth: 5 m
Max. liquid temperature: +40'C
Liquid PH value: 6-10
Max. liquid density: 1.2x10kg/m3
Motor
Copper winding
Insulation cass: F
Protection class: IP68

Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump

Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump

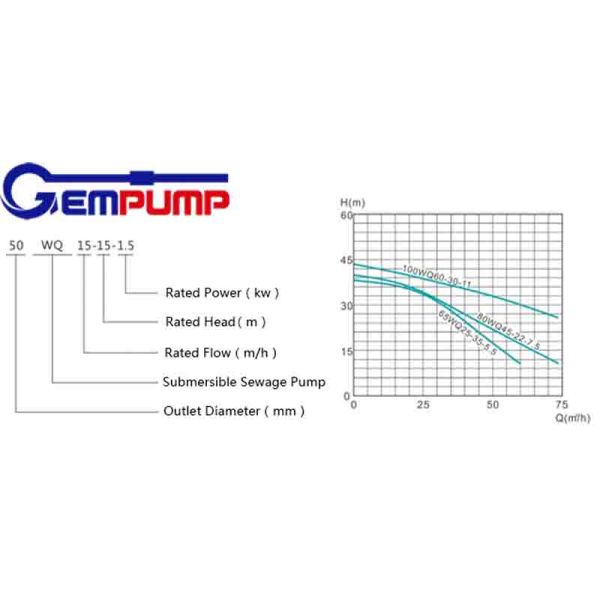

Sewage Submersible Pump Model

Pump Model
Capacity
(m3/hour)
Head(meter)
Power(KW)
Voltage(V)
Discharge DN(mm)
WQ10-10-0.75
10
10
0.75
220/380
50
WQ7-15-1.1
7
15
1.1
220/380
50
WQ15-7-1.1
15
7
1.1
220/380
65
WQ12-15-1.5
12
15
1.5
380
50
WQ25-7-1.5
25
7
1.5
380
65
WQ9-22-2.2
9
22
2.2
380
50
WQ25-10-2.2
25
10
2.2
380
65
WQ40-10-2.2
40
10
2.2
380
80
WQ50-7-2.2
50
7
2.2
380
100
WQ15-30-3
15
30
3
380
50
WQ25-15-3
25
15
3
380
65
WQ37-13-3
37
13
3
380
80
WQ60-9-3
60
9
3
380
100
WQ15-32-4
15
32
4
380
50
WQ25-20-4
25
20
4
380
65
WQ30-36-4
30
36
4
380
80
WQ40-15-4
40
15
4
380
80
WQ60-10-4
60
10
4
380
100
WQ15-40-5.5
15
40
5.5
380
50
WQ25-35-5.5
25
35
5.5
380
65
WQ30-30-5.5
30
30
5.5
380
80
WQ65-15-5.5
65
15
5.5
380
100
WQ100-7-5.5
100
7
5.5
380
150
WQ45-22-7.5
45
22
7.5
380
80
WQ80-15-7.5
80
15
7.5
380
100
WQ100-10-7.5
100
10
7.5
380
150

FAQ

Q: What is the payment terms?

A: 30% T/T in advance, 70% before shipment, L/C at sight .

Q: What is your delivery time?

A: Within20 days after receiving deposit.

Q: What is your MOQ of this item ?

A: 1 PC per item.

Q: Can we type our brand on it?

A: Yes of course,OEM.

Q: Where is your loading port ?

A: Tianjin Port, Shanghai Port,China.
