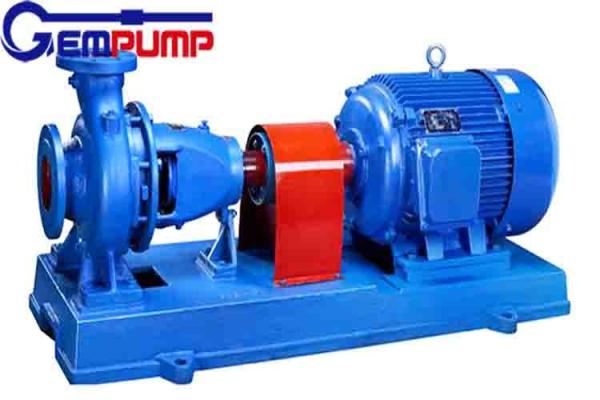

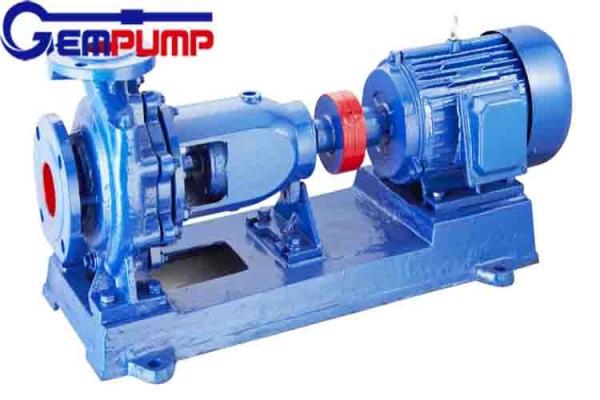

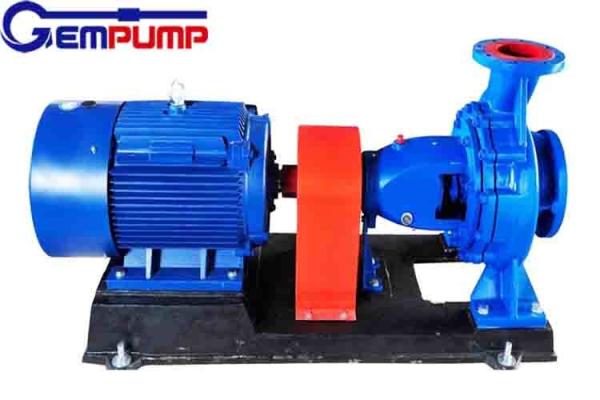

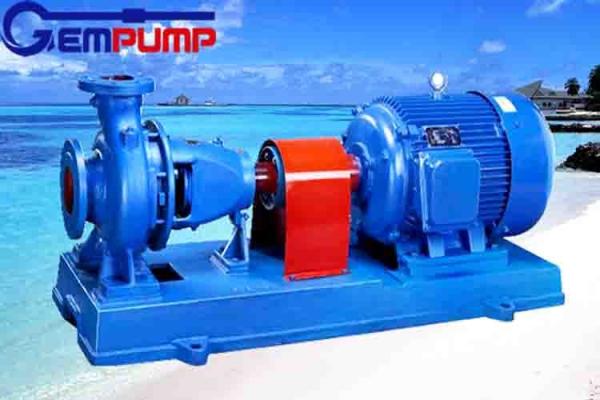

10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
Specifications
Brand Name :
Gempump
Model Number :
IS50-32-125
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
500USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Sets per month
Delivery Time :
3-5 working days
Packaging Details :
Plywooden box
Product :
IS Series Centrifugal Clean Water Pump
Model :
IS Series
Pressure :
10 bar
Application :
Clean Water
Material :
Cast Iron
Theory :
Centrifugal
Power :
Electric Motor
Voltage :
AC220V/AC380V
Warranty :
1 year
Structure :
Single stage
Description

IS Series Horizontal Single Stage Centrifugal Industrial Clean Water Pump

IS Centrifugal Pumps Brief Introduction:

IS single stage centrifugal chemical/clean water pump is suitable for industrial and city applications such as water supplying,draining and also can be used for industry and drainage.It is suitable for conveying clear water or others chemical and physical liquids whose characteristic is similar to the fresh water.

Performance scope of IS chemical centrifugal pump:

Capacity 12.5-400m3/h
Head 20-125m
Power 2.2-90kw
Speed 1450-3500rpm
Inlet diameter 50-200mm
Outlet diameter 32-150mm
Material cast iron
Max temperature 80℃
Seal mechanical seal
Warranty one year(normal wear and tear excepted)

Single Stage Centrifugal Pump Features:
1 Simple in structure,easy maintenance and reliable performance;
2 Small size and light weight;
3 Anti-cavitation performance and low power consumption;
4 Total 140 kinds of specifications, but only in four axis, the same specification of the shaft, bearings, seals, to exchange; full range of pump suspension is only four;
Pump through flexible coupling and motor connection, from the direction of the motor, pump is clockwise.

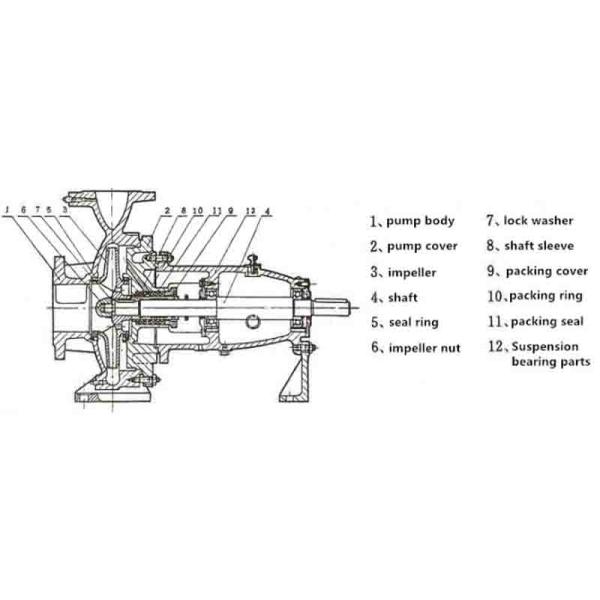

IS type pump, open the door for the structure without disassembly line maintenance.

10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm

IS Series Horizontal Single Stage Centrifugal Industrial Clean Water Pump

10 Bar Single Stage Industrial Centrifugal Pumps 2.2KW 1450rpm
