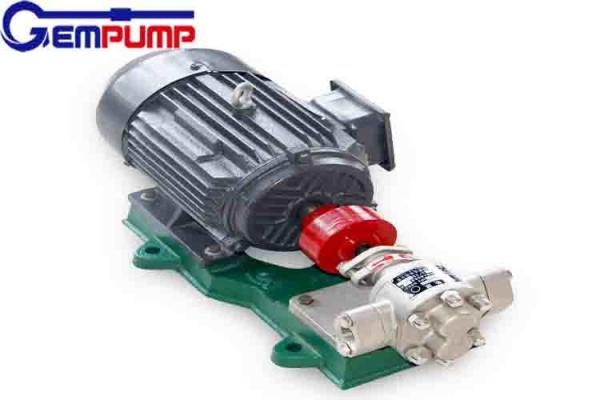

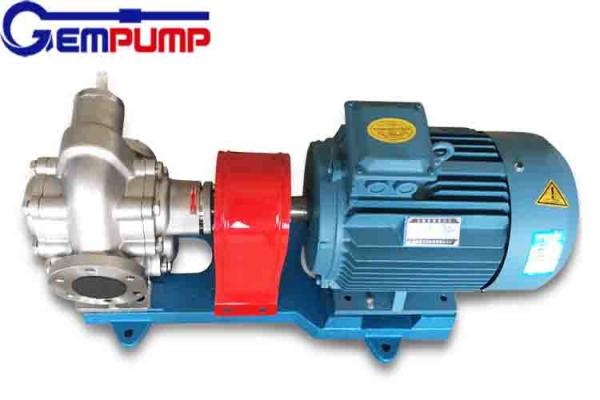

KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
Specifications
Brand Name :
Gempump
Model Number :
KCB18.3
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
500USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Sets per month
Delivery Time :
3-5 working days
Packaging Details :
Plywooden box
Product :
Gear Pump
Model :
KCB Series
Pressure :
Low pressure
Application :
Oil
Material :
Stainless steel
Theory :
Gear pump
Power :
Electric Motor
Voltage :
AC220V/AC380V
Warranty :
1 year
Structure :
Single stage
Description

Gear Pumps Stainless Steel Self Priming Food Grade Olive Palm Edible Vegetable Oil Transfer Pump

Gear pumps Overview

This pump is suitable for liquids with lubricant property. The temperature is not higher than 70 °C. If customers ask for pumps for 300 °C medium, please inform us in advance. In order to meet the requirements, the pump will be equipped with high temperature resistant materials. Medium viscosity is from 5×10-5to 1.5×10-3m2/s.

The pump is not suitable for delivering corrosive liquids, liquids containing hard particles or fibers, highly volatile or low boiling point liquids , such as gasoline, benzene etc.

Stainless Steel Food Grade Gear Pumps Model

Model

Flow

(m3/h)

Presure

(Mpa)

 Inlet/Outlet
(mm)		 Npshr
(m)

Motor Power

(kw)
KCB18.3 1.1 1.45 20 5 1.5
KCB33.3 2 1.45 20 5 2.2
KCB55 3.3 0.33 25 7 1.5
KCB83.3 5 0.33 40 7 2.2
KCB135 8 0.33 50 5 2.2
KCB200 12 0.33 50 5 4
KCB300 18 0.36 70 5 5.5
KCB483.3 29 0.36 70 5.5 7.5
KCB633 38 0.28 100 6 11
KCB960 58 0.28 100 5.5 18.5
KCB18.3 Stainless Steel Gear Pumps 1.5KW Self Priming Oil Transfer Pump
FAQ

1, Are you a trade company or a manufacturer?

A: We are a professional manufacturer of centrifugal pump, such as sewage pump, fire-fighting water pump, multi-stage vertical (horizontal) water pump, diesel engine water pump, water supply equipment, water pump control panel, EDJ fire fighting water pump sets and other pumps.

2, How to control quality?

A: We have always placed great emphasis on quality control to ensure excellent quality level is maintained. We check every process very carefully. After finishing production, the product will be tested one by one to control quality. Morever the price we always maintained is strickly quality control. We have CE, ISO9001 certificate.

3, What is your trade terms, payment terms and delivery time?

A: FOB, CIF, CFR, EXW etc.30% before production, 70% before shipment. 100% T/T is the best way for us, but we also accept L/C. Usually 10-25 days for production (according your quantity). If you are in a hurry, the delivery time will be shorter.

4, If i want a quotation?

A: What's the model you want? (or provide detailed requirements)

What's the spare parts, standard or required?

What's the quantity of order, large quantity of order will get more discounts.

5, Can you provide your price list?

A: we do not have price list for many of our customers have other requirements and our price list is not satisfying them. Therefore, it will be better if you inform us your parameters, such as flow, head, power, medium, etc.
