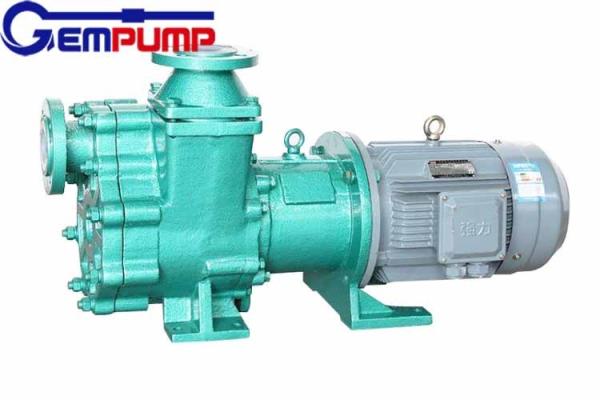

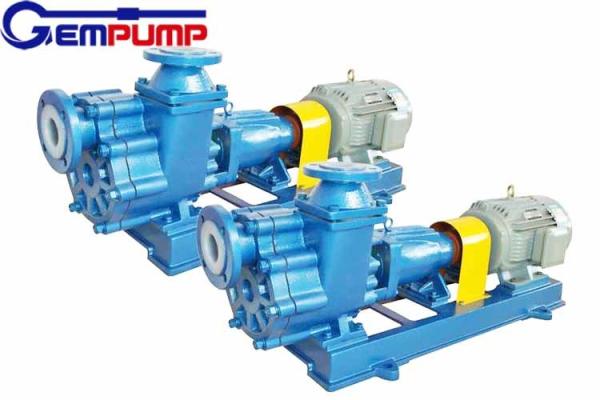

Anti-Corriosion Type Fluorine Plastic Liner Self Priming Acid Pump

FZB Self-priming Pump:

• Flow rates: 1.5-110m3/hr
• Total delivery head: 15-70m
• Temperature: -20 °C to +80 °C
• Self-priming lift: 1-3

FZB is our factory's independent R&D product. It is particularly applicable for low sump situation. This pump is installed above the sump and tank. It is very easy to operate and maintain.

Media:

• Acids & lyes
• Waste water
• Chlorine water
• Electrolyte

self priming sulphuric acid centrifugal pump Industry:

• Chemical industry
• Pesticide
• Acid and alkali making
• Papermaking
• Acid pickle process
• Electronics Industry

Range of application:

• Pressure Limitation: <1.0MPa
• Temperature range: -20°C ~ 80°C
• Ambient temperature: 0~ 40°C
• Ambient humidity: 35~85%RH

Notice:

1. Slurries should not be handled;
2. The liquid's maximum partical and crystal content should be no more than 10%;
3. This pump is not allowed to transfer a mass of bubbles;
4. Viscosity of the medium influences the performance of the pump.

Self priming sulphuric acid centrifugal pump Model and Parameter:

1. The pump is widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids.

2. This pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric,organic dissolvent, corrosion medium and reducing agent etc.

3. It is one of the latest erosion proof equipments in the world.

4. Non-ferrous metal metallurgy, Automobile pickling, Caustic soda, Pesticide, Electronics, Papermaking,Rare-earth separation, Pharmaceutical, Pulp production, Sulfuric acid industry, Environmental protection industry.
