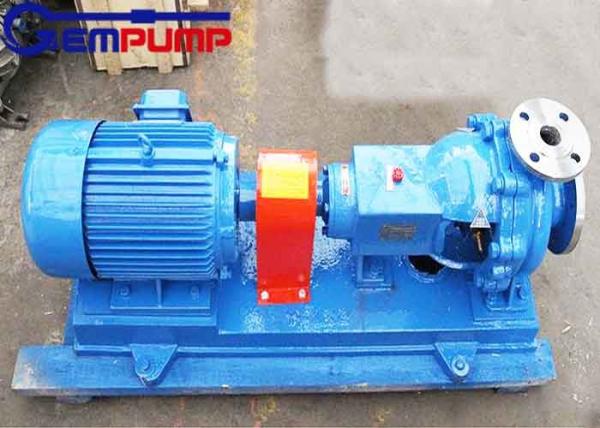

IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
IH Type Stainless Steel Centrifugal Pump AC220V AC380V Mechanical Seal
Specifications
Brand Name :
Gempump
Model Number :
IHF20-25-160
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
IHF Plastic Centrifugal Pump
Principle :
Centrifugal
Applications :
Chemical
Power :
Electric Motor
Voltage :
AC220V AC380V AC415V/50HZ
Temperature :
80°C (176°F)
Connection :
Flange
Position :
Horizontal
Material :
Fluoroplastic, polyethylene
Seal :
Mechanical seal
Description

IH Type Stainless Steel Electric Chemical Centrifugal Pumps For Corrosive Liquids

IH Electric Chemical Centrifugal Pumps Brief introduction:

IH type stainless steel centrifugal electric chemical pumps for corrosive liquids conveies containing no solid particles liquid which is corrosive, and viscosity similar to water in the liquids.Mark it, performance rating and size equivalent international standard ISO2858 being adopted, with wide performance range, high efficiency, "three" level is high and maintenance is convenient wait for a characteristic, its efficiency is increased by 5% on average than F type pump, is the national promotion of energy-saving products.

Capacity 6.3-400m3/h
Head 5-132m
Power 0.55-110kw
Speed 1450-2900rpm
Material stainless steel
Max temperature 80℃
Seal mechanical seal
Warranty one year(normal wear and tear excepted)

IH Pump Application scope:

1. Chemical industry

2. petroleum industry

3. electric power industry

4. papermaking industry

5. food industry

IH Stainless Steel Centrifugal Pump Model

Model Capacity Head Power Effeciency
m3/h m kW %
50-32-125 12.5 20 2.2 60
50-32-125 6.3 5 0.55 54
50-32-160 12.5 32 3 54
50-32-160 6.3 8 0.55 48
50-32-200 12.5 50 5.5 48
50-32-200 6.3 12.5 0.75 42
50-32-250 12.5 80 11 38
50-32-250 6.3 20 1.5 32
65-50-125 25 20 3 69
65-50-125 12.5 50 0.55 64
65-50-160 25 32 0.5 65
65-50-160 12.5 5 0.75 60
65-40-200 25 50 7.5 60
65-40-200 12.5 12.5 1.1 55
65-40-250 25 80 15 50
65-40-250 12.5 20 2.2 46
80-65-125 50 20 5.5 75
80-65-125 25 5 0.75 71
