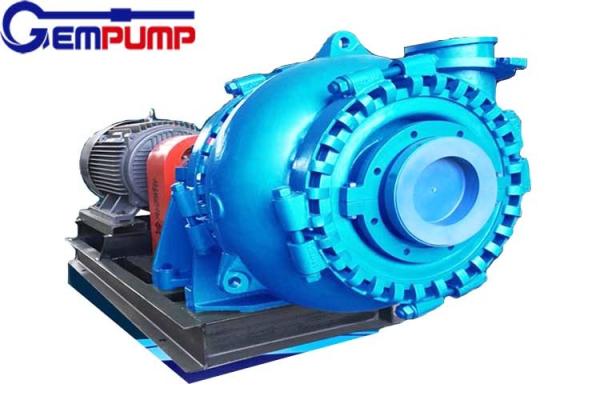

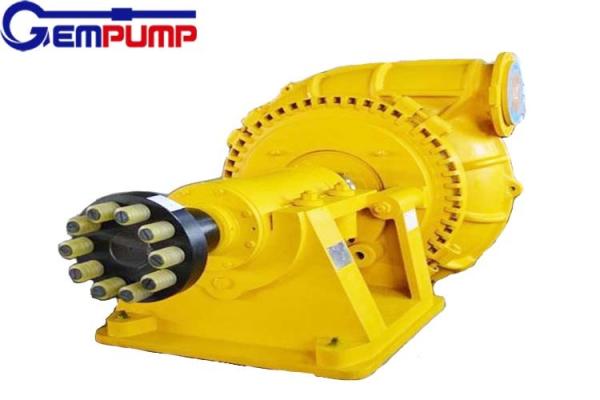

6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump
Specifications
Model Number :
6/4D-G
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Application :
River / sea sand dredging
Driven power :
Motor/Diesel engine
Wet parts :
Chrome alloy
Warranty :
1 year
Description

Technical parameters of Big Particle Sand Gravel Pump

Gravel Pump Model 6/4D-G
Inlet/Outlet size 150mm/100mm
Capacity 39-250m3/h
Head 7-50m
Speed 600-1400rpm
Max. Power 60KW
Max.Solid 82mm
NPSH. 2.5-3.5m
Seal type Gland packing,Expeller,Mechanical

6/4D-G 1400rpm Gravel Sand Pump Big Particle Dredging Sand Pump

Gravel sand pump application:

Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries

which contain too big solids to be pumped by a common pump.

Dredging, suck gravel in the dredger, suck gravel in the course of rivers
Delivering slurries in mining, explosive sludge in metal smelting
Type GH pumps are of high-head ones

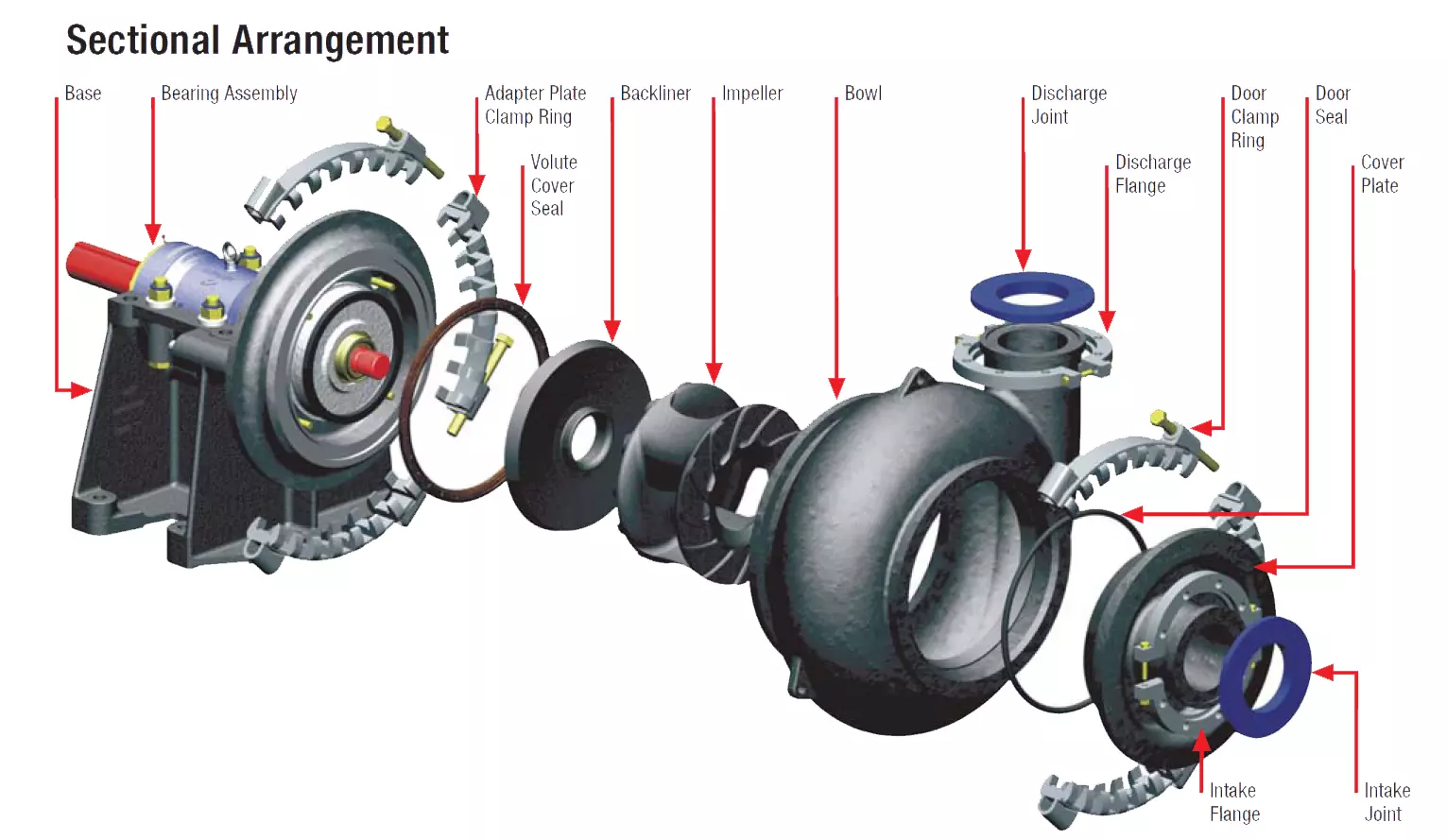

Gravel sand pump description:

1. G(GH) pump is horizontal cantilevered single-casing centrifugal pump.

2. G type pump adopts clamp bands clamping pump body and the cover of the pump
3.the discharge direction of pump can be oriented in any direction of 360.
4.The wet-parts are made of Ni-hard and high chromium alloys.
5. Bearing components use cylindrical structure, easy to adjust the gap between the impeller and pump body.

It can be removed in the way of the whole when maintenance.Bearing adopt oil lubrication.
6.Shaft seal: packing seal, expeller seal,mechanical seal

15 years experience in manufacturing slurry pumps,gravel sand pump, experienced engineer team and machining team.
1. Do material testing before pouring and after pouring
2. Use best bearing in China or SKF,TIMKEN brand bearings
3. High chrome alloy mateiral for abraisve slurry,rubber material for corrosive slurry
