560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
560KW Horizontal Slurry Pump
Specifications
Brand Name :
Gempump
Model Number :
14/12ST-AHGEM
Certification :
ISO9001, CE
Place of Origin :
Shijiazhuang,China
MOQ :
1 set
Price :
USD1000/SET
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
5-8 working days
Packaging Details :
Plywooden Box
Product :
Horizontal centriufgal slurry pump
Material :
Chrome alloy
Structure :
Centrifugal
Power :
Electric motor
Application :
Mining
Seal :
Packing,Mechanical
Warranty :
1 year
Description

China Horizontal Heavy Duty Industrial Anti-Corrosive Coal Mining Mineral Centrifugal Slurry Pump

Product Introduction

The Heavy duty centrifugal coal mining slurry pump is used to transport solid and liquid that can be widely used to the deparments of metallurgy, mine, coal, electric power, chemical&industry, food, sewage treatment and channel dredging, etc. we can use these pumps in industry field like: Alumina, asbestos, bauxite, biulding products, cement, wolfram&scheelite, water & sewage utilities, copper, electric, iron ore, lead &zinc, mineral sands, sugar,tin, oil shale, paper&pulp and tobacco.

560KW Horizontal Slurry Pump

Slurry pump product features:

AHGEM type pump for cantilever, horizontal centrifugal slurry pump. It is suitable for conveying strong abrasion and high concentration slag slurry in metallurgy, mining, coal, electric power, building materials and other industrial sectors. This type of pump industry can be used in series at multiple stages.
The pump body of AHGEM type pump is provided with interchangeable wear-resistant metal lining, and the impeller is made of wear-resistant metal or rubber material.
AHGEM pump shaft seal can be used packing seal or pay impeller pressure relief cover seal. The outlet position of the pump can be installed and used by rotating 8 different angles at 45° intervals as required.
Slurry Pump Model Meaning For example
4/3 C --AHGEM
AHGEM-- slurry pump type
C -- Frame form
3 -- discharge diameter (inch)
4 -- suction diameter (inch)
560KW Horizontal Slurry Pump

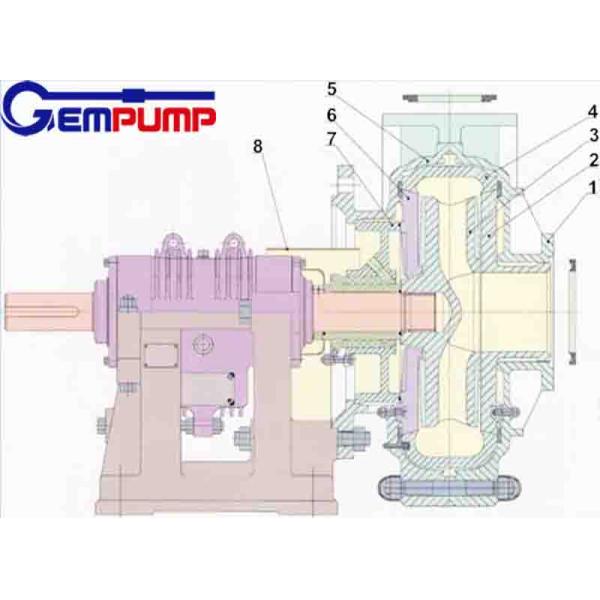

No. Name Material code ASTM code
1 Pump cover QT500-7 70-50-05
2 Front liner insert KmTBCr26 Rubber+A570Gr.C
3 Impeller KmTBCr26 Rubber+70-50-05
4 Thrust bush KmTBCr26 Rubber+A570Gr.C
5 Pump body QT500-7 70-50-05
6 Back protecting bush KmTBCr26 Rubber+A570Gr.C
7 Gland box KmTBCr26 Rubber+NO.30A
8 Waterproof case 1Cr18Ni9Ti 321

Performance Parameter Data of AH Slurry Pump:

Model
Power(kw)
Flow(m3/h)
Head(m)
n (r/min)
Efficiency(%)
NPSH(m)
Weight(Kg)
1.5/1B-AHGEM
2.2-15
3.6-20
5-68
1200-3800
40
2-4
91
2/1.5B-AHGEM
2.2-15
7-48
7-62
1200-3200
45
3.5-8
118
3/2C-AHGEM
4-30
21-86
12-65
1300-2700
55
4-6
191
4/3C-AHGEM
5.5-30
50-150
9-45
1000-2000
71
4-6
263
4/3D-AHGEM
7.5-60
68-160
10-52
1000-2200
71
4-6
363
6/4D-AHGEM
15-60
72-360
12-56
800-1550
65
5-8
626
6/4E-AHGEM
22-120
93-385
12-63
800-1600
65
5-8
728
8/6E-AHGEM
18.5-120,
360-820
10-61
500-1100
72
2-9
1473
8/6R-AHGEM
110-300
360-820
10-61
500-1140
72
2-9
1836
10/8ST-AHGEM
45-560
630-1300
11-60
400-850
71
4-10
3750
12/10ST-AHGEM
55-560
800-1900
7-58
350-730
82
6
4318
14/12ST-AHGEM
75-560
1200-2600
13-60
300-600
77
3-10
4609
16/14TU-AHGEM
160-1200
1368-3000
11-60
250-550
79
4-10
10000
14/12ST-AHGEM
75-560
1200-2600
13-60
300-600
77
3-10
4609
16/14TU-AHGEM
160-1200
1368-3000
11-60
250-550
79
4-10
10000

Company Introduction

Gempump was established in 2010, it's a professional machinery factory special in pumps and mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Arica,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
