15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing
Specifications
Brand Name :
Gempump
Model Number :
14/12ST-AHGEM
Certification :
ISO9001, CE
Place of Origin :
Shijiazhuang,China
MOQ :
1 set
Price :
USD1000/SET
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
5-8 working days
Packaging Details :
Plywooden Box
Product :
Horizontal centriufgal slurry pump
Material :
Chrome alloy
Structure :
Centrifugal
Power :
Electric motor
Application :
Mining
Seal :
Packing,Mechanical
Warranty :
1 year
Description

2 Inch Horizontal Mineral Processing Concentrator Underflow Heavy Duty Slurry Pump

Metal Liner Heavy Duty Slurry Pump AHGEM TYPE

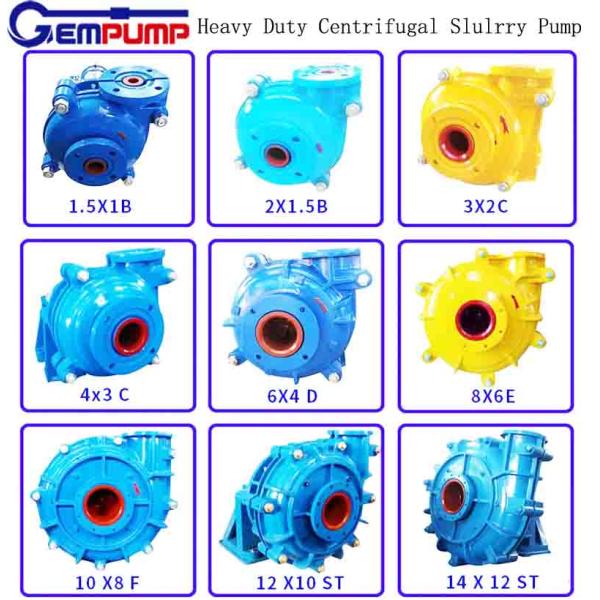

1.5/1B-AHGEM, 2/1.5B-AHGEM, 3/2C-AHGEM, 3/2CC-AHGEM, 4/3C-AHGEM, 4/3CC-AHGEM, 4/3D-AHGEM, 4/3DD-AHGEM, 6/4D-AHGEM, 6/4DD-AHGEM, 6/4E-AHGEM, 6/4EE-AHGEM, 8/6E-AHGEM, 8/6EE-AHGEM, 8/6F-AHGEM, 8/6FF-AHGEM, 8/6R-AHGEM, 10/8ST-AHGEM, 10/8F-AHGEM, 10/8FF-AHGEM, 12/10ST-AHGEM, 12/10G-AHGEM, 12/10F-AHGEM, 12/10FF-AHGEM, 14/12ST-AHGEM, 14/12G-AHGEM, 14/12FF-AHGEM, 14/12F-AHGEM, 16/14TU-AHGEM, 20/18TV-AHGEM.

Rubber Liner Heavy Duty Slurry Pump AHRGEM TYPE

1.5/1B-AHRGEM, 2/1.5B-AHRGEM, 3/2C-AHRGEM, 3/2CC-AHRGEM, 4/3C-AHRGEM, 4/3CC-AHRGEM, 4/3D-AHRGEM, 4/3DD-AHRGEM, 6/4D-AHRGEM, 6/4DD-AHRGEM, 6/4E-AHRGEM, 6/4EE-AHRGEM, 8/6E-AHRGEM, 8/6EE-AHRGEM, 8/6F-AHRGEM, 8/6FF-AHRGEM, 8/6R-AHRGEM, 10/8F-AHRGEM, 10/8X-AHRGEM, 12/10ST-AHRGEM, 14/12ST-AHRGEM, 16/14TU-AHRGEM.

15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing

Type Allowable Mating Max. Power(Kw) Clear Water Performance Impeller
Capacity/Q m³/hr Head/m Speed/rpm Max Efficiency/% NPSH/m Nos of Vane Impeller Diameter/mm
1.5X1-AHGEM 15 12.6--28.8 6--68 1200--3800 40 2--4 5 152
2X1.5-AHGEM 15 32.4--72 6--58 1200--3200 45 3.5--8 5 184
3X2-AHGEM 30 39.6--86.4 12--64 1300--2700 55 4--6 5 214
4X3-AHGEM 30 86.4--198 9--52 1000--2200 71 4--6 5 245
6X4-AHGEM 60 162--360 12--56 800--1550 65 5--8 5 365
8X6-AHGEM 300 360--828 10--61 500--1140 72 2--9 5 510
10X8-AHGEM 560 612--1368 11--61 400--850 71 4--10 5 686
12X10-AHGEM 560 936--1980 7--68 300--800 82 6 5 762
14X12-AHGEM 560 1260--2772 13--63 300--600 77 3--10 5 965
16X14-AHGEM 1200 1368--3060 11--63 250--550 79 4--10 5 1067
20X18-AHGEM 1200 2520--5400 13--57 200--400 85 5--10 5 1370

15-1200KW Heavy Duty 2 Inch Slurry Pump Mineral Processing

Main Spare Parts

Impeller, Volute Liner, Casing, ThroatBush, Frame Plate Liner Insert, Cover Plate, Frame Plate, Pump Liner Expeller, Expeller Ring,Stuffing Box, Expeller, Pump Shaft, shaft sleeve, Shaft Spacer, Bearing Assembly, Base, Stuffing Box, Gland Assembly, Bearing Housing,Lantern Ring, pump discharge pipe, flange, and so on.
