Solar DC Water Pump Kits Solar Powered Swimming Pool Pump System

Solar Pumps System:

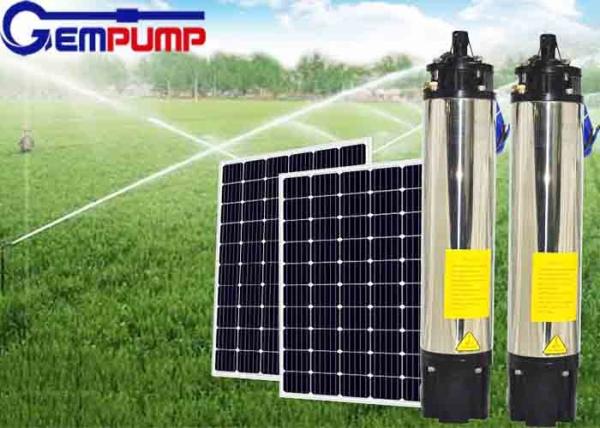

Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.

Solar panel collects sunlight→DC electricity energy → solar controller
(rectification,stabilization,amplification,filtering)→available DC electricity→(charge the batteries)
→pumping water

Solar Pumps Application:

Solar Pumping System Series are applied to daily use (ground water), agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and so on.

Solar Pumping System is dispensed with energy storing devices, and stores water instead of electricity. It improves the reliability of the device, at the same time, it lowers the construction and maintenance costs of the system dramatically.

In recent years, with the promotion of the utilization of new energy resources, Solar Pumping System is more and more used in municipal engineering, city centre squares, parks, tourist sites, resorts and hotels, the landscapes and fountain systems in the residential areas.

Solar Pumps SPECIFICATION
1. Max Head : 20 -- 320m;
2. Max Flow : 0.76 -- 200 m3/hr;
3. Power : 0.1hp -- 100hp;
4. Voltage : DC12 V -120V; AC220V -540V
5. Motor : DC motor & AC motor;
6. Material : SS304 & SS316 ;
7. Controller : MPPT type for Automatic restating;

Solar Pumps APPLICATION
1. Irrigation of agriculture
2. Drinking water and living water
3. Garden irrigation
4. Fountains

FEATURES
1. The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor.
2. Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
3. High technique products adopting MPPT and DSP chip technique.
4. 100% copper wire, cold-rolled silicon steel sheet.
5. Stainless steel 304 & 316 shaft , motor body, screw.
