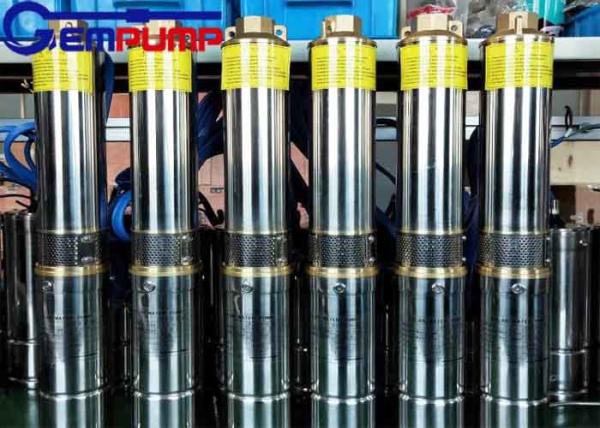

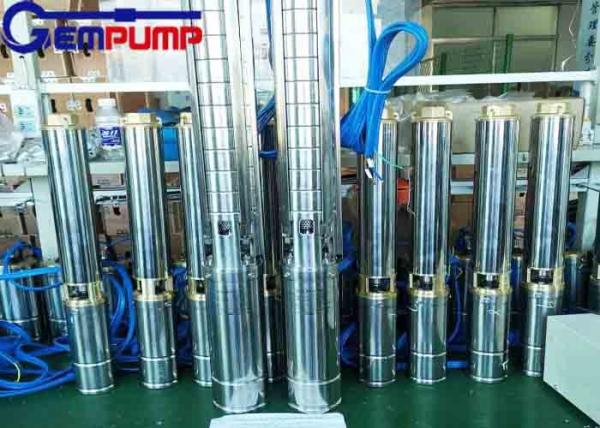

5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
5HP 10HP 20HP Solar Borehole Pumps 3FLD Series Solar Powered Submersible Pump
Specifications
Brand Name :
Gempump
Model Number :
3FLD2.5-15-24-140
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Warranty :
1 year
Application :
Drinking water, Irrigation and Agriculture
Pressure :
High pressure solar borehole water pump
Structure :
Centrifugal solar pump
Material :
Stainless steel 304/316
Theory :
Centrifugal Solar Pumps
Voltage :
DC 48v
Motor :
Brushless dc motor
Packaging :
Plywood wooden box
Lead time :
in 3 days
Description

Solar Powered Submersible 5hp 10hp 20hp Solar Pump Price Solar Water Pump System

Solar pump product description:

Gempump Solar Submersible Pumps

1) Low voltage dc solar pumps: 24V, 48V, 72V, 96V
Type:

① 3FLS series 3'' solar SCREW pumps
② 3FLD series and 4FLD series solar Centrifugal pumps(impeller type) Screw pump & Centrifugal Pump difference: for same
power pump, screw pump is higher head but less water flow; centrifugal pump with more water flow but lower pressure.
2) DC/AC high voltage solar pumps: 110V, 220V, 380V
Pump diameter: 3'', 4'', 6'', 8'', 10''

Gempump DC Solar Surface Pumps

1) SQB series: high pressure solar booster pump, pipe diameter is all 1''
2) SCPM series: big water flow solar booster pump, pipe diameter have 1'', 1.5'' and 2''
3) SJET series: stainless steel pump body solar booster pump, pipe diameter: 1''
4) SZB series: self-priming solar booster pump, suction head is 5 meters, pipe diameter: 1''
5) SJP series: DC solar swimming pool pumps, 200W,500W, 900W and 1200W

Gempump Solar Pump Features
1
High efficiency: Newly Developed DC Brushless Permanent-magnetic synchronous motor, 10-20% higher than common motors
2
Easy Movement: Volume and Weight is only 1/2 of other pumps with same specification.
3
Auto-protecting: If there is no water in well for 1 minute, will stop working automatically. After 30 minutes, will start automatically to test whether there is water or not.
4
Multi-Power Choices: Could connect with solar panels or batteries.

Gempump Solar pump of MPPT Controller

1.Sand-proof, high temp
2.Work with both solar water pump power and batteries
3.Do not need deep well float switch, if there is no water in well for 1 minute, solar water pump dc brushless will stop working
4.Controller will detect energy source to see it is solar panels or batteries, then start working
