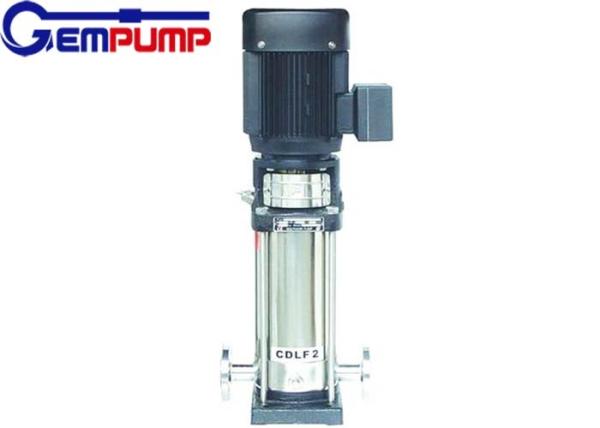

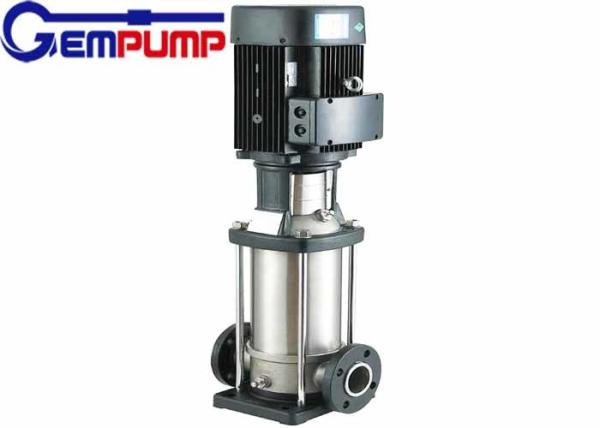

ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
Specifications
Brand Name :
Gempump
Model Number :
CDL2-2
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
CDL/CDLF Vertical Stainless Steel Pump
Principle :
Centrifugal
Applications :
Chemical
Power :
Electric Motor
Voltage :
AC220V AC380V AC415V/50HZ
Temperature :
80°C (176°F)
Connection :
Flange
Position :
Horizontal / Vertical
Material :
Stainless steel 304/316
Seal :
Mechanical seal
Description

CDLF Vertical Single Stage Water Pump Heating Circulating Multistage Fire Fighting Pump

CDLF Vertical Stainless Steel Pump Introduction
CDL/ CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. Thc motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components arefixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
CDLF Single-Stage Centrifugal Water Pump Applications
It can be used to convey various medium from tap watert to industrial liquid at different temperature and
with different flow rate and pressure.
CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.
Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system .
Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali. Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.
ISO9001 CDLF Vertical Multistage Fire Fighting Pump DN32 Pipe
Model Power(Kw) Flowrate(m3/h) Head(m) Pipe Diameter(mm)
CDL4-2 0.37 4 15 DN32
CDL4-3 0.55 24
CDL4-4 0.75 32
CDL4-5 1.1 40
CDL4-6 1.1 48
CDL4-7 1.5 56
CDL4-8 1.5 64
CDL4-10 2.2 81
CDL4-12 2.2 95
CDL4-14 3 112
CDL4-16 3 129
CDL4-19 4 153
CDL4-22 4 178
CDL8-2/1 0.75 8 9 DN40
CDL8-2 0.75 18
CDL8-3 1.1 27
CDL8-4 1.5 36
CDL8-5 2.2 45
CDL8-6 2.2 54
CDL8-8 3 73
CDL8-10 4 92
CDL8-12 4 111
CDL8-14 5.5 130
CDL8-16 5.5 148
CDL8-18 7.5 167
CDL8-20 7.5 186

FAQ

Q1: What is your terms of delivery?
A1: EXW/CIF/FOB.

Q2: What's your MOQ?
A2: There's no MOQ limits, 1 piece for test at first is acceptable.

Q3:What is your price?

A3:We can provide our high quality products with reasonable price. Different models price varies, pls contact me if interest.

Q4: What about your quality?
A4: Best quality and elegant appearance.
Q5: How about your delivery time?
A5: Generally speaking,it takes7-30days after receive your payment,but it also depends on product model and quantity.
