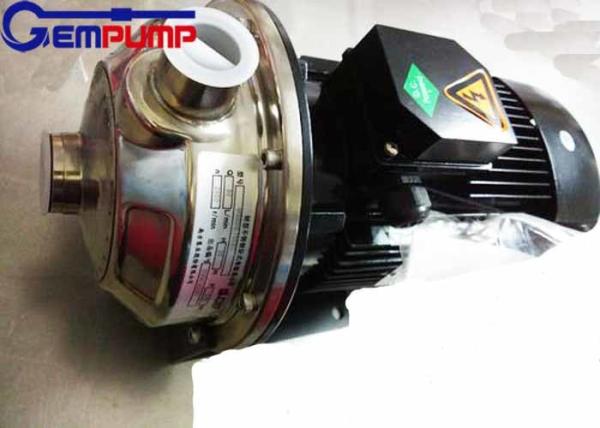

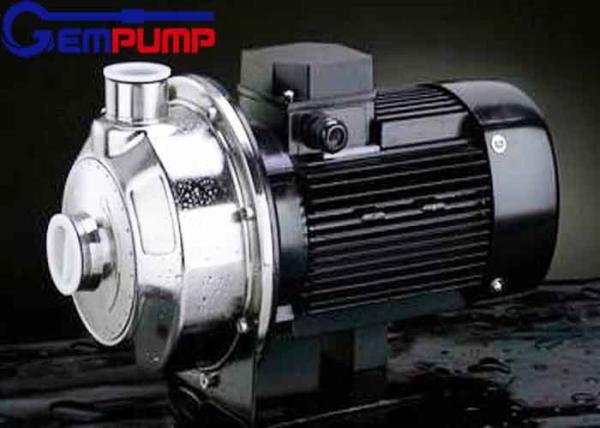

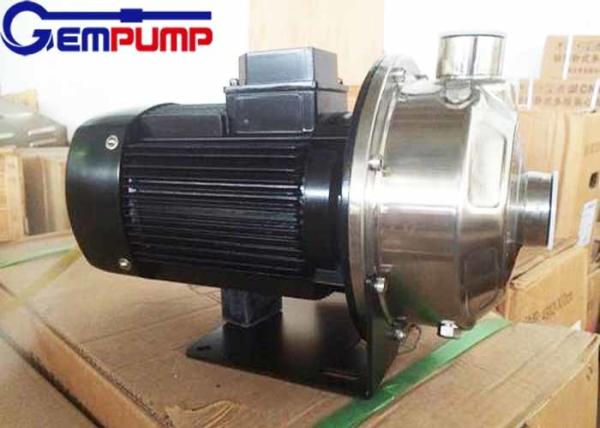

CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight
Specifications
Brand Name :
Gempump
Model Number :
MS100
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
CNP Stainless Steel Pump
Principle :
Centrifugal
Applications :
Chemical
Power :
Electric Motor
Voltage :
AC220V AC380V AC415V/50HZ
Temperature :
80°C (176°F)
Connection :
Flange
Position :
Horizontal
Material :
Stainless steel 304/316
Seal :
Mechanical seal
Description

CNP MS100 Light Stainless Steel Horizontal Single-Stage Centrifugal Booster Water Pump

CNP MS100 Light Centrifugal Pump Performance Pange:

Head up to 60m
Flow up to 132m3/h
Power up to 30Hp
Suction Size 50 to 100mm
Delivery Size 32 to 80mm

CNP MS100 Booster Water Pump Operating Limits:

Max.Working Pressure 10Mpa(10 bar)
Ambient Temperature From-15 °C to +40 °C
Liquid Temperature Form -20°C to +110 °C

CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight

MS100 Horizontal Single-Stage Water Pump Technical Features:

MS100 series stainless steel centrifugal pumps,produced by advanced stamping and welding technology,with its exchangeable components,stable quality,small size,light weight,aluminum alloy cold-extruding-shaped motor casing rational structure,beautiful appearance and safe use.

The pump made by stainless steel SU304 or 316L and composed of pump body,impeller,rear cover,seal ring etc.It has features of good oxidation-resisting performance,strong corrosion-resisting to oxidative acid(e.g.nitric acid)and has some corrosion-resistance to alkaline solution and most of organic acids and inorganic acids.The shaft of centrifugal pumps made of 304 and 316L,different kinds of mechanical seal are optional.

Standard:EN733(DIN24255)or GB5662

Materials:Stainless Steel SUS304 or SUS316L for pump case,impeller and shaft.

Fields of application:The pumps are suitable of transporting clean media which are non-aggressive to stainless steelSUS304 or SUS316 .

Water Supply Systems

Pressure Boiler Water Feeding

Pure Water Treating Systems

Pharmaceutical,Food and Regining Chemical Industries.

Washing and Sprinking

MS100 Centrifugal Pump Model

Model
Driving Motor
Q(l/min)
40
60
80
100
140
160
(kw)
(hp)
Q(m3h)
2.4
3.6
4.8
6
8.4
9.6
MS100/0.55KW
0.55
0.75
H(m)
17.8
16.7
15.4
14
9.9
MS100/1.1KW
1.1
1.5
27.4
26.3
25
23.4
19.5
16.7

FAQ
Q1: How can I get a price quote?
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Q2:May I get a cheaper price?
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB Shijiazhuang.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
