CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow
Specifications
Brand Name :
Gempump
Model Number :
CQB65-250-L
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
CQB-L Vertical Magnetic Pump
Place of Orign :
China
Application :
Aicd,Alkali,Wastewater Transport
Warranty :
2 year
Lead time :
10 days
Motor voltage :
AC220V,AC380V,AC415V
Pump material :
SS304.SS316.SS316L
Power :
Electric Motor
Structure :
Single Stage Pump
Seal :
Mechanical seal,no leakage
Description

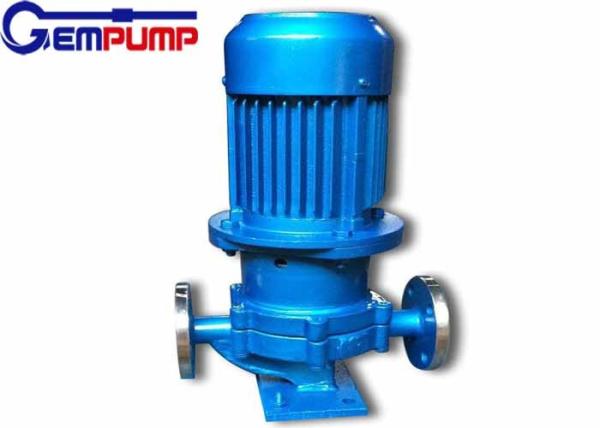

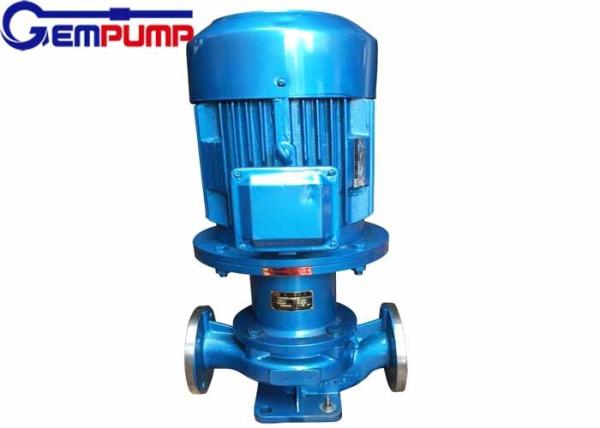

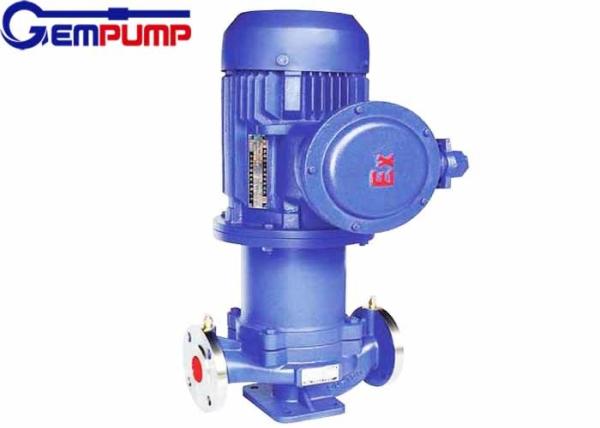

CQB-L Vertical Pipe Stainless Steel Magnetic Centrifugal Pump

CQB-L vertical pipe magnetic pump introduction:

1. CQB-L vertical pipeline magnetic pump is a new type of pipeline pump developed by us based on many years of experience in designing and manufacturing horizontal magnetic pump.

2. It has the characteristics of ISG pipeline centrifugal pump and the advantages of magnetic chemical pump.

3. The installation size is the same as the ISG type pipeline centrifugal pump, which is the latest generation of non-leakage pipeline centrifugal pump.

4. CQB-L type vertical pipeline magnetic pump can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film photofinishing, scientific research institutions, national defense industry and other units to pump acid, alkaline liquid, oil, rare precious liquid, venom, volatile Sex liquid, as well as supporting equipment for circulating water and filters. Especially for the pumping of leaky, flammable and explosive liquids, this pump is more ideal.

5. The material is excellent, and the over-flow components such as pump body, impeller, isolation sleeve are made of high-quality stainless steel.

6. The shaft sleeve is made of highly wear-resistant silicon carbide and tungsten carbide, the sliding bearing is made of carbon stone M106K, and a lubricating oil groove is provided to effectively ensure the service life of the pump.
7. Vertical installation, compact structure, small occupying area.

8. Low vibration, low noise, and particularly stable operation.

9. Most of the parts of the pump are interchangeable with the CQB series magnetic pump, the performance of the pump is the same as the CQB series; the flow rate is 3.2-100m 3 / h; the head is 20-80m; the power is 0.75-75Kw.

10.Very competitive price.

11. 1 year of warranty.

12. Short delivery time.

CQB-L vertical pipe magnetic pump model meaning:

CQB-L 22KW Vertical Pipe Stainless Steel Magnetic Pump 25m3/H Big Flow

CQB-L vertical pipe magnetic pump list:

Model Port size

Flow

(m³/h)

Head

(m)

Motor

(kw)

Voltage

(v)

 Material
Inlet Outlet
CQB32-125L 32 20 3.2 20 1.1 380

Stainless

Steel
CQB32-160L 32 20 3.2 32 1.5 380
CQB40-105L 40 25 3.2 12.5 1.1 380
CQB40-125L 40 25 6.3 20 2.2 380
CQB40-160L 40 25 6.3 32 3 380
CQB40-200L 40 25 6.3 50 5.5 380
CQB50-85L 50 32 6.3 8 1.1 380
CQB50-105L 50 32 6.3 12.5 1.5 380
CQB50-125L 50 32 12.5 20 3 380
CQB50-160L 50 32 12.5 32 4 380
CQB50-200L 50 32 12.5 50 7.5 380
CQB50-250L 50 32 12.5 80 18.5 380
CQB65-125L 65 50 25 20 4 380
CQB65-160L 65 50 25 32 7.5 380
CQB65-200L 65 40 25 50 15 380
CQB65-250L 65 40 25 80 22 380
CQB80-125L 80 65 50 20 7.5 380
CQB80-160L 80 65 50 32 15 380
CQB80-200L 80 50 50 50 22 380
CQB80-250L 80 50 50 80 37 380
CQB100-125L 100 80 100 20 18.5 380
CQB100-160L 100 80 100 32 22 380
CQB100-200L 100 65 100 50 37 380
CQB100-250L 100 65 100 80 55 380

FAQ

Q1: Are you a manufacturer or a trading company?

A: We are a manufacturer, providing OEM & ODM service.

Q2. What standards do your pumps conform to?

A: Our products conform to GB, ISO or API610, etc. to be decided according to your specific requirements.

Q3. What’s the warranty for your pumps?

A:1 Year Warranty(except Wearing Parts)

Q4. What about after-sale service?

A: Our after-sales engineers will provide technical support within 24 hours after receiving claims or consultation requirements.
