Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Horizontal CQB SS316L Magnetic Drive Chemical Pump 40HP 0.5MPa
Specifications
Brand Name :
Gempump
Model Number :
CQ65-50-160
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SET/Month
Delivery Time :
5-8 working days
Packaging Details :
Ply wooden box
Product :
Stainless Steel Magnetic Pump
Place of Orign :
China
Application :
Aicd,Alkali,Wastewater Transport
Warranty :
2 year
Lead time :
10 days
Motor voltage :
AC220V,AC380V,AC415V
Pump material :
SS304.SS316.SS316L
Power :
Electric Motor
Structure :
Single Stage Pump
Seal :
Mechanical seal,no leakage
Description

CQB Stainless Steel SS316L Transfer Leakless Dosing Magnetic Pump

Stainless Steel Magnetic Pump Overview:

1. CQB stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion

2. It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.

3. The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.

4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.

5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.

6. Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.
Product details:

Working Principle: Centrifugal, Magnetic drive
Main applications: Chemical, water, oil
Driver: Electric motor
Power Specs: 220V/380/415 V 3phase; 220/240 V 1phase; 50hz/60hz
Max.permissible fluid temperature: 95°C(203°F)
Type of connection: Flange, Tube.
Installation position: Horizontal
Casing/Inner parts material: Stainless steel 304 / 316
Maximum drive rating: 30KW(40HP)
Maximum caliber: 150mm(6inch)
Maximum discharge-side pressure: 0.5MPa(5bar)
Maximum head: 50m(164ft)
Flow rate range: 30-3350L/min(7.9-884.4 US.GPM)

Our Advantages:

1) High quality with Low Price
2) Delivery in time
3) Vibration resistant Easy to transport and install
4) Body with excellent thermal managing design
5) Different colors for your select

Payment Terms:

1 ) Payment:30% in advance,+70% balance should be paid before delivery.
2 ) Lead time:1x20ft for 15 days;1x40ft for 20 days
3 ) Port of loading:guangzhou,Mainland china.
4 ) Discounts are offered based on order quantities.

FAQ:

1.Q: Are your company is trading company or manufacture?
A: China Gempump is a large professional manufacturer for more than 10 years,We have our own factory.

2. Q: What's your factory workshops?

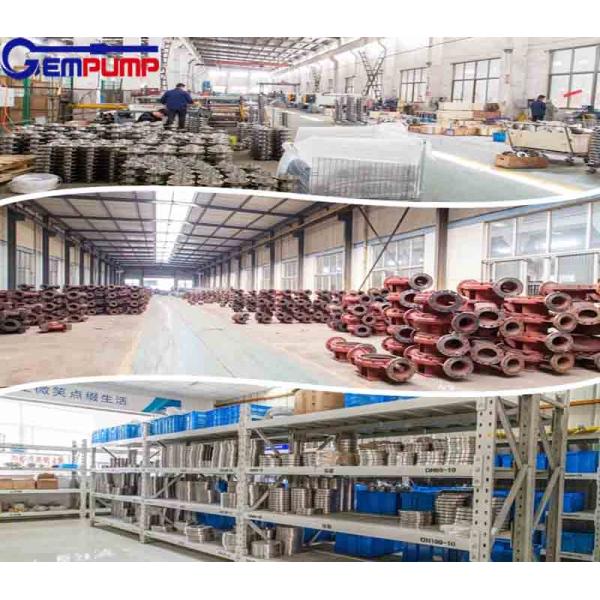

A: Our factory produce include casting,mechanical process,lathe process,heat treatment,assembly,and test,etc.

3. Q: How about your pumps price?
A: Our price is factory price,and insist high quality for long-term cooperation.

4. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely,and show me pictures,we will send you solution at once without any hesitation.

5. Q: We don't know which pump model we need,can u help us?
A: Yes,pls tell me your detail requirement,include liquid,flow rate,head,etc.and our engineers team will calculate & select most suitable pump model for u,offer pump solution for u.
