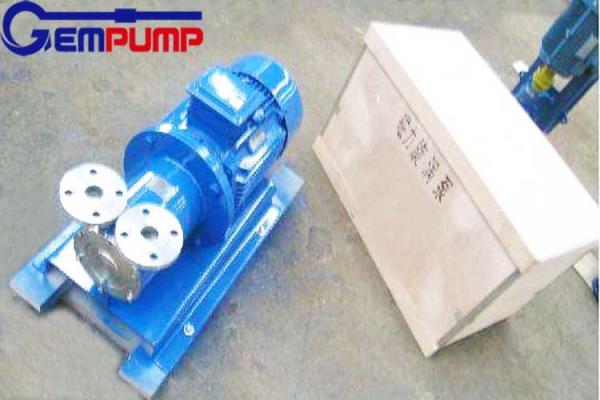

CWB Stainless Steel Horizontal Magnetic Vortex Pump Supplier China Gempump

CWB magnetic drive vortex pump product overview:

CWB magnetic driven vortex pump (hereinafter referred to as magnetic vortex pump) is a new product that applies the working principle of permanent magnet coupling to centrifugal pump. It has the characteristics of reasonable design, advanced technology, full sealing, no leakage, low flow, high head and corrosion resistance. Its performance has reached the advanced level of similar foreign products.

The magnetic pump replaces the dynamic seal with static seal, so that the overflow parts of the pump are in a completely sealed state, which completely solves the unavoidable disadvantages of running, emitting and dripping of mechanical seals of other pumps. The magnetic pump is made of corrosion-resistant and high-strength engineering plastics, corundum ceramics and stainless steel, so it has good corrosion resistance and can prevent the transported medium from pollution.

CWB Stainless Steel Magnetic Vortex Pump Features

1. High lift, small flow and specific speed are generally less than 40

2. Simple structure, small volume and light weight;

3. With self wetting circuit, the service life of sliding bearing is improved;

4. Add a cooling circuit to take away the magnetic eddy heat in time;

5. Cantilever blades are used to reduce the radial force of the impeller;

6. As the viscosity of the conveying medium increases, the efficiency of the pump decreases sharply, so the medium viscosity should not be greater than 5 * 10m / s.

Installation and use of CWB magnetic drive vortex pump:

1. The magnetic pump shall be installed horizontally rather than vertically. The plastic pump body shall not bear the weight of the pipeline. For the occasions where vertical installation is required, the motor must be upward.

2. When the suction liquid level is higher than the pump axis line, open the suction pipeline valve before starting. If the suction liquid level is lower than the pump axis line, the pipeline shall be equipped with a bottom valve.

3. The pump shall be checked before use. The fan blade of the motor shall rotate flexibly without jamming or abnormal sound, and all fasteners shall be fastened.

4. Check whether the rotation direction of the motor is consistent with the rotation mark of the magnetic pump.

5. After the motor is started, slowly open the discharge valve. After the pump enters the normal working state, adjust the discharge valve to the required opening.

CWB Magnetic Drive Vortex Pump Application:

CWB magnetic drive vortex pump is widely used in chemical industry, pharmacy, petroleum, electroplating, food, film photography and printing, and scientific research institutions. National defense industry and other units pump acids, lye, oils, rare and precious liquids, venoms and volatile liquids, as well as supporting circulating water equipment and filters. Especially for the pumping of leaky, flammable and explosive liquids, this pump is more ideal.
