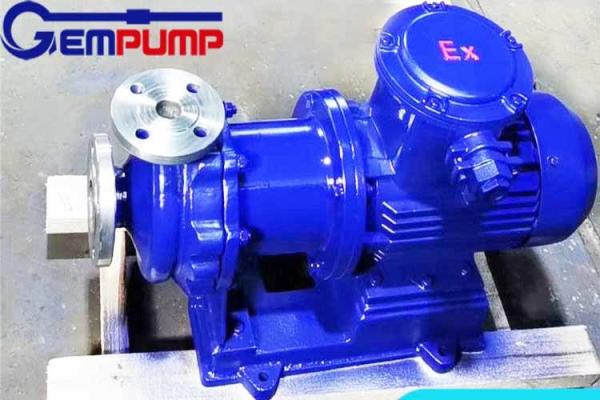

Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Ihf Magnetic Centrifugal Pump Circulation Acid Transfer Seal Less Fluoroplastic Alloy
Specifications
Brand Name :
Gempump
Model Number :
CQB65-50-125F
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000Sets Per Months
Delivery Time :
5 days
Packaging Details :
Wooden box
Type :
IHF Magnetic Pump
Application :
Acid and Alkali Resistance
HS Code :
8424899990
Warranty :
12 months
Flow rate :
6.3-200 m3/h
Pump Head :
20-80 m
Description

IHF Corrosion Resistant Circulation Acid Transfer Seal-Less Fluoroplastic Alloy Magnetic Drive Pumps

IHF Centrifugal Magnetic Pump Product Introduction:

IHF lined chemical pump is developed according to international standard. The pump casing is made of cast steel lined with PTFE (F46); cover, impeller and shaft sleeve are made of metal wrapped by PTFE( F46). We use the bellow type mechanical steel as the shaft seal, with 99% alumina ceramics ( or silicon nitride) statot and PTFE-packing rotator, to achieve good corrosive-resistant and seal. It has several advantages of strong mechanical robustness, hard aging, no toxin broken up, and strong corrosion resistance. It can deliver any concentrate organic acid, inorganic acid, or both mixed.

IHF Magnetic Pump Technical Parameters

Speed n=2900 r/min Speed n=1450 r/min
PUMP MODEL FLOW
(m3/h)		 HEAD
(m)		 MOTOR POWER
(Kw)		 NSHP(m) EFF.(%) FLOW
(m3/h)		 HEAD
(m)		 MOTOR POWER
(Kw)		 NSHP(m) EFF.(%)
IHF40-25-125 6.3 20 1.5 3.0 51 3.2 5 0.55 3.0 32
IHF40-25-160 6.3 32 2.2 3.0 46 3.2 8 0.55 3.0 28
IHF40-25-200 6.3 50 5.5 3.0 39 3.2 12.5 0.55 3.0 23
IHF40-25-250 6.3 80 7.5 3.0 41 3.2 20 1.5 2.0 20
IHF50-32-125 12.5 20 2.2 3.0 51 6.3 5 0.55 3.0 45
IHF50-32-160 12.5 32 4 3.0 46 6.3 8 0.55 3.0 40
IHF50-32-200 12.5 50 7.5 3.0 39 6.3 12.5 1.1 3.0 33
IHF50-32-250 12.5 80 11 5.0 35 6.3 20 1.5 5.0 30
IHF65-50-125 25 20 3 3.5 62 12.5 5 0.55 3.5 55
IHF65-50-160 25 32 5.5 3.5 57 12.5 8 1.1 3.5 51
IHF65-40-200 25 50 11 3.5 52 12.5 12.5 1.5 3.5 46
IHF65-40-250 25 80 18.5 3.5 50 12.5 20 3 3.5 43
IHF80-65-125 50 20 5.5 4.0 69 25 5 1.1 4.0 64
IHF80-65-160 50 32 11 4.0 67 25 8 1.5 4.0 62
IHF80-50-200 50 50 15 4.0 63 25 12.5 2.2 4.0 57
IHF80-50-250 50 80 30 4.0 66 25 20 5.5 4.0 51
IHF100-80-125 100 20 11 4.5 66 50 5 1.5 4.5 64
IHF100-80-160 100 32 15 5.0 71 50 8 2.2 5.0 68
IHF100-65-200 100 50 30 5.0 67 50 12.5 5.5 5.0 64
IHF100-65-250 100 80 55 5.0 65 50 20 7.5 5.0 62
IHF125-80-160 160 32 30 5.0 70 80 8 5.5 5.0 74
IHF125-100-200 200 50 55 5.0 65 100 12.5 11 5.0 71
IHF125-100-250 200 80 75 5.0 73 100 20 15 5.0 73
IHF125-100-315 100 32 18.5 3.0 60
IHF150-125-250 200 20 22 7.0 67
IHF150-125-315 200 32 45 7.0 65
IHF200-150-250 400 20 55 7.5 69
IHF200-150-315 400 32 75 7.5 68
IHF200-150-400 400 50 110 7.5 74

IHF centrifugal pump is a kind of plastic lined pump.

Technical parameters of IHF chemical centrifugal pump

Flow rate: 6.3-400m3 /h;
Head: 5 ~ 132m;
Speed: 2900, 1450r/min;
Power: 0.55 ~ 110KW;
Inlet diameter: 50 ~ 200mm;
Maximum working pressure: 1.6mpa.

IHF Magnetic Pump Application:
They are used for transmission of liquids (oil, sea water ,sulphuric acid, phosphoric acid, H2SiF6acid, alkali liquid) with lowor high temperature,
neutral or corrosive liquids ,or liquids with solid granular and widely used in petroleum chemical industry ,oil refining industry, paper ,pulp industry ,
sugar industry ,mining ,etc.
Lots of material can be chose for different working condition, such as cast steel ,stainless steel 304,316,2205,904L, Hartz alloy C276,C22,
nickel-base alloy GH600, PVDF,PP, UHMWPE-lining .etc
Pump a strong seal system :packing seal ,double face mechnical seal ,cartridge mechnical seal ,API682 flushing syestem.

Company Overview

Gempump is a specialized manufacturer/supplier for the chemical pump,is located in Shijiazhuang city,Hebei Province,China.
With more than 10 years R&D, manufacturing and sales experience, we can supply many kinds of chemical pump with very good quality. and we have
got ISO9001,ISO14001,ISO45001 certificates, and is a High - Tech Enterprise in China .

FAQ


Q1: Are you manufacturer or trading company?
Our company is a professional producer for chemical pumps, and export pumps by ourselves.

Q2: What's your business range?

We manufacture chemical centrifugal pump, slurry pump, vertical/horizontal multistage pump,sewage pump, water pump,oil pump, screw pump, diaphragm pump, fire pump, constant pressure VFD water supply system and so on.

Q3: How to check and verify the products?

We support video inspection and verification .

Q4: What are your payment terms?

Common terms: T/T 30% deposit, balance payment before shipment.

Q5: How about warranty and after-service?

12 months warranty time after receiving days, not include quick-wear parts and default phase.We promise 24 hours action for your problems.
