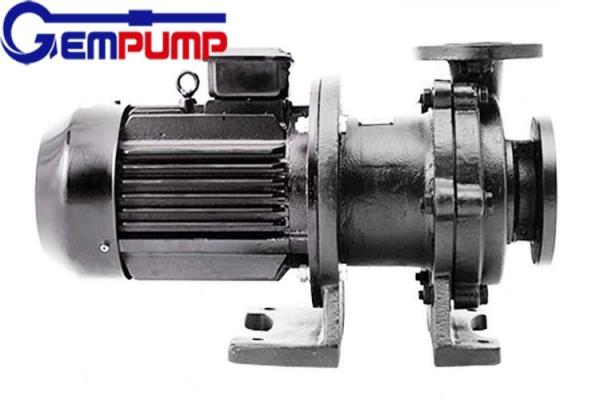

Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension
Specifications
Brand Name :
Gempump
Model Number :
CQB80-65-160F
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Price :
1000 USD/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000Sets Per Months
Delivery Time :
5 days
Packaging Details :
Wooden box
Pump type :
Magnetic Pump
Warranty :
12 months
HS Code :
8413709940
Usage :
Chemical,Acid,Alkali
Description

Fluorine Lined Magnetic Driven Circulation Force Centrifugal Sealess Suspension Pump

Magnetic Pump Summarize:

1. CQB stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion

2. It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.

3. The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.

4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.

5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.

6. Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.

Product details:

Working Principle: Centrifugal, Magnetic drive
Main applications: Chemical, water, oil
Driver: Electric motor
Power Specs: 220V/380/415 V 3phase; 220/240 V 1phase; 50hz/60hz
Max.permissible fluid temperature: 95°C(203°F)
Type of connection: Flange, Tube.
Installation position: Horizontal
Casing/Inner parts material: Stainless steel 304 / 316
Maximum drive rating: 30KW(40HP)
Maximum caliber: 150mm(6inch)
Maximum discharge-side pressure: 0.5MPa(5bar)
Maximum head: 50m(164ft)
Flow rate range: 30-3350L/min(7.9-884.4 US.GPM)

Magnetic Pump Performance Date:

Model Caliber (mm) Flow
(m 3 /h) 		Head (m) Power
(kW) 		Voltage
(V) 		Material
Inlet Outlet
14CQ-5 14 10 1.2 5 0.18 220/380 304
316
316L
S.S
16CQ-8 16 12 1.8 8 0.18 220/380
20CQ-12 20 12 3 12 0.37 220/380
25CQ-15 25 20 5.4 15 1.1 380
32CQ-15 32 25 6.5 15 1.1 380
32CQ-25 32 25 4.8 25 1.1 380
40CQ-20 40 32 1 20 2.2 380
40CQ-32 40 32 11.5 32 4 380
50CQ-25 50 40 14.4 25 4 380
50CQ-32 50 40 13.2 32 4 380
50CQ-50 50 32 7.8 50 5.5 380
65CQ-25 65 50 16.8 25 5.5 380
65CQ-32 65 50 25 32 5.5/7.5 380
80CQ-32 80 65 50 32 11 380
80CQ-50 80 65 50 50 15 380
100CQ-35 100 80 60 35 15 380
100CQ-50 100 80 60 50 18.5 380

Fluorine Lined Sealless Centrifugal Pump Magnetic Drive Circulation Force Suspension

Magnetic Pump Applications:

Industrial machinery and equipment Water treatment Food and cosmetics
Inkjet printing/painting Mask making Food and Beverage filling
Oil transportation Booster pressure Filling of perfume cosmetics
Sand mill/Grinding Circulating cooling Quantitative Transport

Magnetic Pump Technical Parameter :

Flow Up to 100m3/h
Head Up to 80 m
Speed 2900 RPM
Power Up to 55 kW
Inner Caliber Up to 100 mm
Outer Caliber Up to 65 mm
