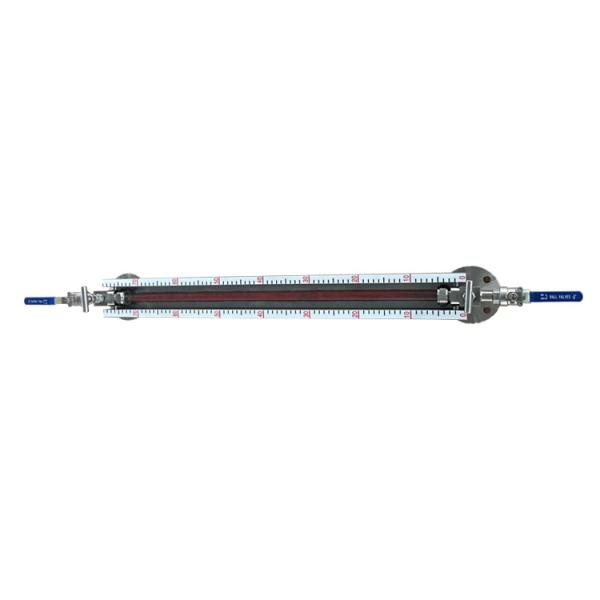

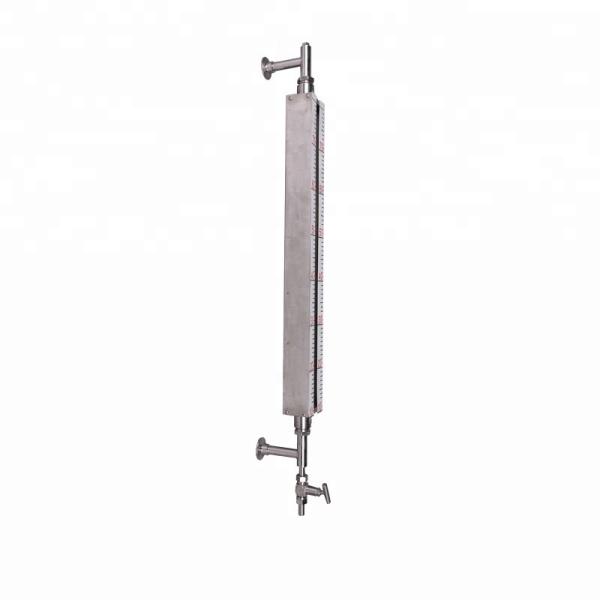

VACORDA High Precision Glass Tube Level Gauge Made In China
VACORDA High Precision Glass Tube Level Gauge Made In China
VACORDA High Precision Glass Tube Level Gauge Made In China
VACORDA High Precision Glass Tube Level Gauge Made In China
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
Vacorda
Model Number :
HG5
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
wooden box or as your request
MOQ :
1 Piece/Pieces
Price :
Negotiable
Product name :
VACORDA High Precision Glass Tube Level Gauge Made In China
Warranty :
18 months
Delivery :
Express, Ship, Air
center-center range :
300~2000mm
Pressure :
PN6~PN100
Display :
single, double color
Material :
304,316 L,1Cr18Ni9Ti, 0Cr18Ni9
Connection :
flange, thread
Lifetime :
5-10 years
Explosion proof grade :
Exia II CT5Ga, Exd II BT5Gb
Port :
Shanghai/Shenzhen
Description

VACORDA High Precision Glass Tube Level Gauge Made In China

Product Description

UGS quartz tube level gauge is consist of high purity quartz glass tube, meter shell and. explosion-proof valve, with red displaying height of liquid and green for height of vapor phases. The advantages are clearing reading, observation direction adjustable, simple structure, reliable work, and night view with light source etc. It is easy cleaning and maintenance. Once quartz tube happened to explosion, steel ball in the valve can automatically block fluid channel to reduce or avoid accidents.

Features

1. Clear indication, good sealing

2. High working temperature: ≤+450°C

3. High working pressure: ≤PN100

4. Long lifetime, simple structure, easy cleaning and maintenance

5.There are two steel ball in the valve at the both sides. When quartz tube happened to explosion, Steel balls can automatically block channel to avoid liquid flow away if the pressure difference between inside and outside is above 0.3Mpa.

Structure

1.Single color quartz tube level gauge

2. bi-color quartz tube level gauge

3. Non-blind area bicolor quartz tube level gauge

4. Anticorrosive bicolor quartz tube level gauge (polypropylene, PTFE lining)

Technical parameters

Recommended center-center distance:

300, 500, 800, 1100, 1400,1700,2000mm(custom made)

Indicate mode:

single color, bicolor(red as vapor phases, green as liquid)

Material:

carbon steel, 304,316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining

Nominal pressure:

PN6-PN100(×0.1MPa)

304 +PTFE≤PN40

PP≤100°C

Working temperature:

carbon steel ≤350°C

Stainless steel ≤450°C

304+PTFE ≤200°C

PP≤100°C

Drain valve:

drain needle valve (or customize)

Vent valve:

vent needle valve (or customize)

Process flange:

DN20/RF HG/T 20592-09

The heat steam interface:

ZG1/2"male screw thread

The heat steam pressure:

≤1.0Mpa

Eclectic heating:

self-limiting temperature heating (unnecessary for anticorrosive type)

Steel ball self-closing pressure:

≥0.3Mpa

Power supply:

24V DC, 36V AC

Environment temperature:

-50~+80°C

Detailed Images

VACORDA High Precision Glass Tube Level Gauge Made In China

VACORDA High Precision Glass Tube Level Gauge Made In China

Workshop and Procesing

Certificate

VACORDA High Precision Glass Tube Level Gauge Made In China

Working principle: It consists of two parts: a magnetic indicator and a float. The magnetic indicator is composed of a red and white magnetic flipping column or a magnetic flipping card and a guard plate equipped with a small magnetic steel. When the floating ball equipped with magnetic steel moves up and down with the liquid, the beam magnetic field of the permanent magnet in the floating ball turns the magnetic turning column 180°. When the liquid level rises, the turning column turns from white to red. It turns from red to white to indicate the height of the liquid level. (The color of the flop and the flop can be different, such as blue and red or black and white, etc.). When it is necessary to transmit output, install a reed switch or magnetic sensor transmitter parallel to the magnetic indicator to realize the remote transmission of 4-20mA or 0-10mA current signal; equipped with a liquid level alarm switch, and The upper and lower limits of the liquid level can be alarmed.


Feature: In addition to on-site instructions, it can also be equipped with remote transmitters, alarm switches, and control switches with complete detection functions. The indication is novel, the reading is intuitive and eye-catching. The indicating mechanism is completely isolated from the measured medium, so it has good sealing, high reliability and safe use. The structure is simple, the installation is convenient, and the maintenance cost is low. Corrosion resistance, no power supply, explosion-proof. According to the different installation positions in the container, there are two types of side mounting and top mounting.
