DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
VACORDA
Model Number :
HKD
Supply Ability :
300 Piece/Pieces per Month
Packaging Details :
Carton
MOQ :
1 Piece/Pieces
Price :
Negotiable
Sensor Material :
ABS/PVC/PTFE
Temperature Compensation :
The Whole Range Is Automatic
Parameter Set Up :
3 Induction Buttons
Mode of Indication :
4 Digit LCD
Beam Angle :
8°, 5° (3db)
Cable Fix :
PG13.5
Product name :
DC20~32V Ultrasonic Level Sensor , Ultrasonic Sensor For Water Level Measurement
Measure Cycle :
1.5s
Pressure range :
±0.1MPa
Power supply :
DC20~32V
Port :
Shanghai/Shenzhen
Description

DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement

DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement

Application

Product Description

DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement

Product features

1. Safety: Do not use valves, pipes or joints when measuring toxic, explosive, corrosive, stress, volatile, and leaking liquids. It has no source of leakage and no containers for liquids and gases. very safe. Even if the instrument is damaged or maintained, it will not leak, poison or explode.

2. Hygiene: Do not touch liquids (making wine, beverages, milk production, storage tanks, pipes) in the inspection and monitoring program, and will not cause pollution.

3. Easy installation and maintenance: no fire, no clear box, no impact on production.

Technical Parameters:

(1)Power supply: DC20~32V
(2)Output: DC4~20mA
(3)Working temperature: -40℃~+75℃
(4)Mode of indication: 4 digit LCD
(5)Parameter set up: 3 induction buttons
(6)Mode installation: Whorl, Flange
(7)Accuracy: 0.2% Span(in air)
(8)Beam angle: 8°, 5° (3db)
(9)Pressure range: ±0.1MPa
(10)Protect grade: IP67

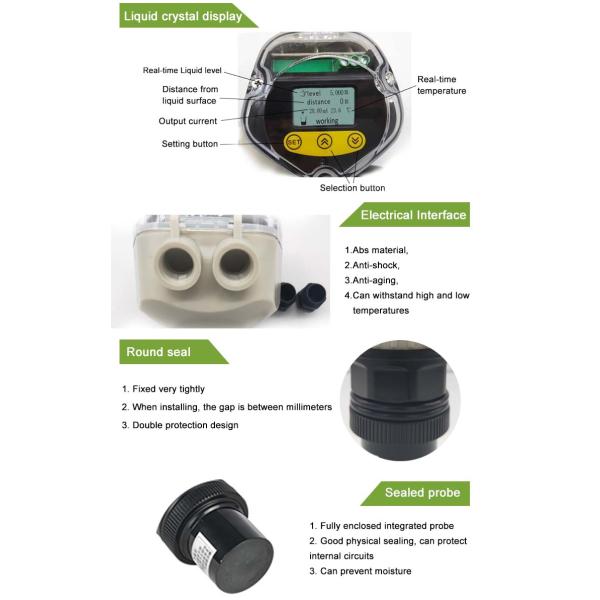

Detailed Images

DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement

DC20~32V Ultrasonic Level Sensor Ultrasonic Sensor For Water Level Measurement

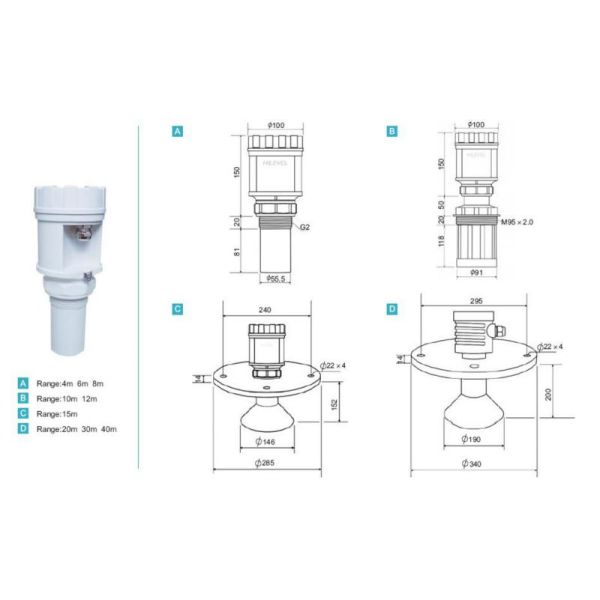

For range of 20m, 30m, 40m, the size of orifice on tank should be more than that of DN200 flange. And the length of the connection pipe under the flange shou

Installation:

For tank:

For range less than 8 m, the size of orifice on tank should be more than of DN65 flange.

For range of 10m an12m, the size of orifice on tank should be more than that of DN100 flange. And the length of the connection pipe under the flange should be less than 20m

For range of 15m, the size of orifice on tank should be more than that of DN150 flange. And the length of the connection pipe under the flange should be less than 20m

For open pond:fixing stand should be needed.

Continuous non-contact level measurement with compact version;

  1. Integrated design, installed conveniently;
  2. Protected in the excessive voltage and current , protected in the thunder and lightning;
  3. The big show window of LCD is easy to debug and observe;
  4. Excellent anti-interference capability;
  5. Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion
  6. All metal outer cover (IP67), airproof and alkali-resisting, meet the abominable environment.

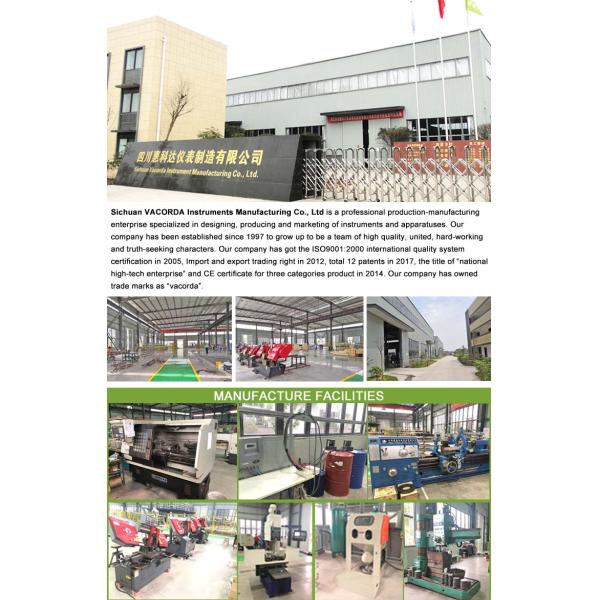

Company Information
