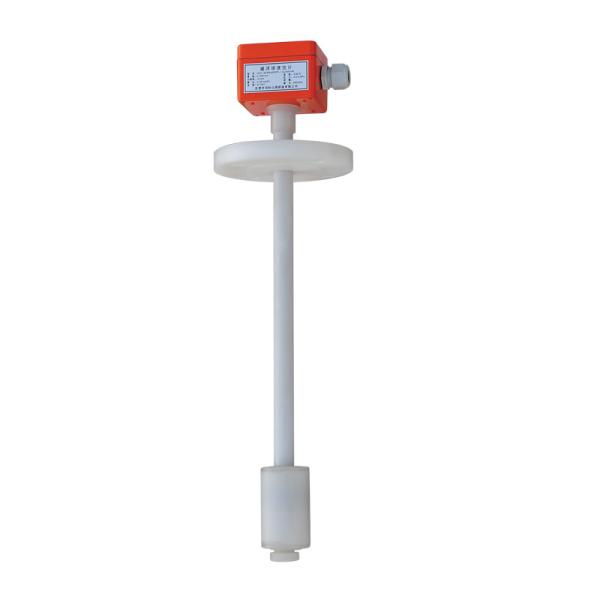

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Specifications
Brand Name :
VACORDA
Model Number :
UHC
Certification :
CE, ISO, SIL
Place of Origin :
Sichuan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union,Secure payment
Matrial :
PP, PVC
Working temperature :
≤150℃
Working pressure :
PN2.5~PN160
Output :
4-20mA
Description
Product Description

Vacorda magnetic float ball level gauge consists of reed, precise resistance and amplification transformation circuit and adopt imported advanced sensor components and signal transmitters. When the magnetic line of the magnetic float ball reaches a certain place of the level sensor, the reed closes, and the float ball changes with the height of level interface. The amplification transformation circuit converts the change of the interface height into linear 4~20mADCsignal to realize the measurement and transmission of the level location signal.

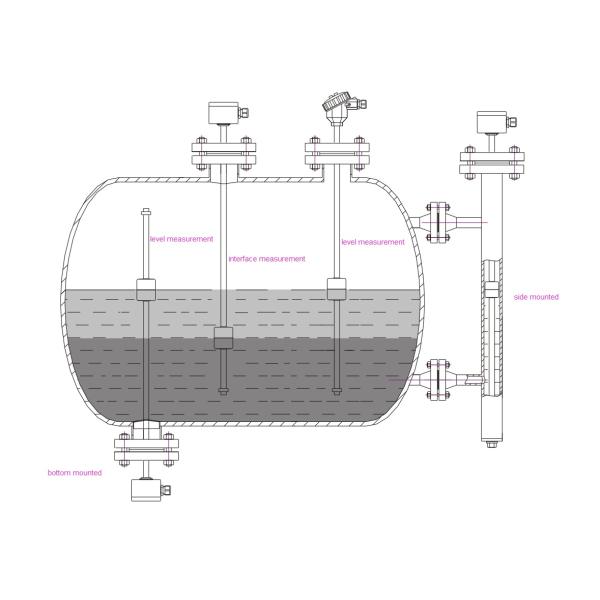

Product installation

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion

Product features

1. Simple structure, good stability and reliability.

2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.

3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.

4. Interface measurement or level measurement of 2 kinds of medium with different density.

5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.

6.Explosion-proof structure design for exploding environment

Product Parameters

Measuring range 200~6000mm(>6M customize)
Resolution factor 10mm,5mm,20mm
singal output

4~20mA(two-line)

2000/m(1/2",3/8")
Loading resistance 500Ω
Transmitting >1000m
Working power supply 16~30VDC
Density ≥0.5g/cm3
Pressure PN2.5~PN160(×0.1MPa)(Max pressure PN320)
Operating temperature -40 ~ 80 °C, ≤120 °C, ≤150 °C
Float ball diameter Φ30~Φ120(depending on pressure and density)
Flange installation DN40~DN150/RF/PL(HG/T20592~2009) customize

2'' thread(downward install)

1/2'' thread (upward install, resistance signaloutput)

3/8'' thread(upward install, resistance signal output)
Installation angle ≤±25°
Electrical connection

M20×1.5 female thread

Three-lines screening cable
IP grade IP65
Explosion-proof grade Exia II CT6Ga,EXd IICT6Gb

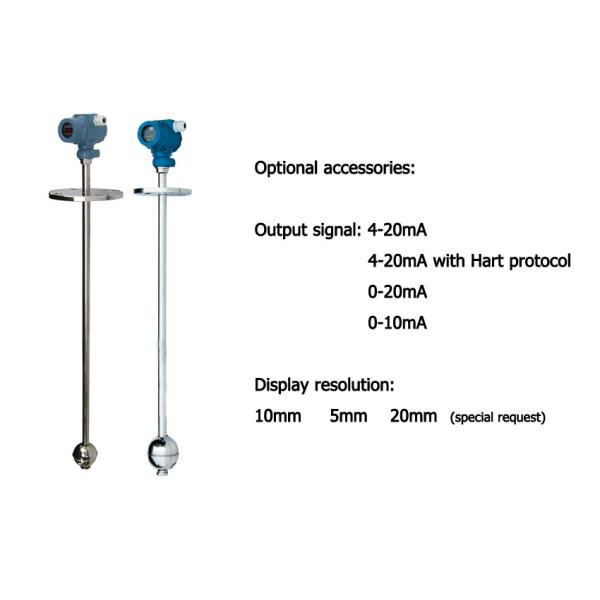

Product details

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
