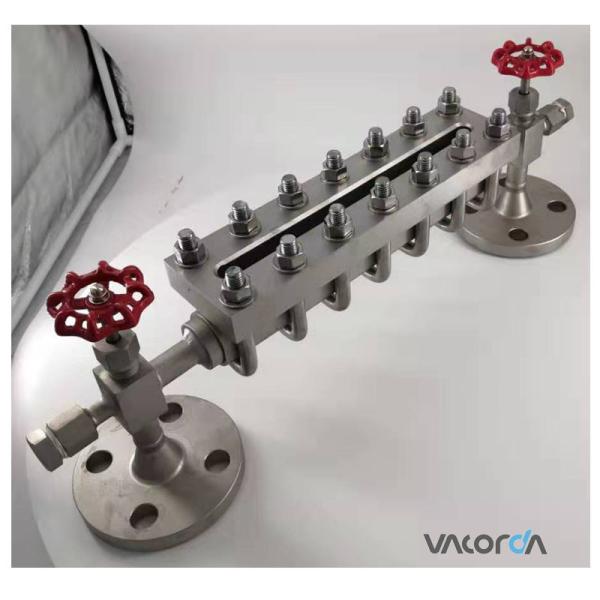

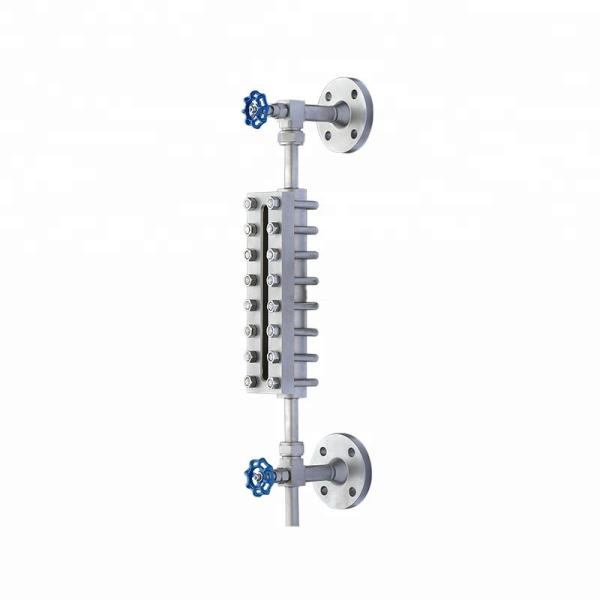

Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
Vacorda
Model Number :
HG 21588
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
Wooden box
MOQ :
1 Piece/Pieces
Price :
Negotiable
Certification :
ISO9001/CE/TUV/From-E
Name :
Glass pane transparent level gauge
Material :
SS304, 316L, carbon steel
Warranty :
18 months
Lifetime :
3~5 years
Delivery :
Express, ocean shipping
Connection :
Flange DN203/4"
Work temperature :
0-250 degree
Pressure :
2.5,6.3,4.0,0.1,0.6
Measuring range :
0~300-0~2000mm
Recommed length :
550,850,1150,1450,1750mm
Port :
Shanghai/Shenzhen
Description

Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator

Product Description

Glass plate level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.

Structure

Durable Transparent Type Level Gauge , Glass Tube Water Level IndicatorDurable Transparent Type Level Gauge , Glass Tube Water Level Indicator

Technical parameters

Nominal length (center to center ):

0~300-0~2000mm

Recommended length:

550, 850, 1150, 1450, 1750mm

Material:

Carbon steel, 304, 316L

Nominal pressure (MPa):

Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6

Working temperature:

0~250℃

Connection flange:

DN20 (3/4”); A,B type---HG20592; C type---HG20615-09

Heating steam cube connector:

RC1/4 internal thread

Heating steam pressure:

≤1.0MPa

Steel ball closing pressure:

≥0.3MPa

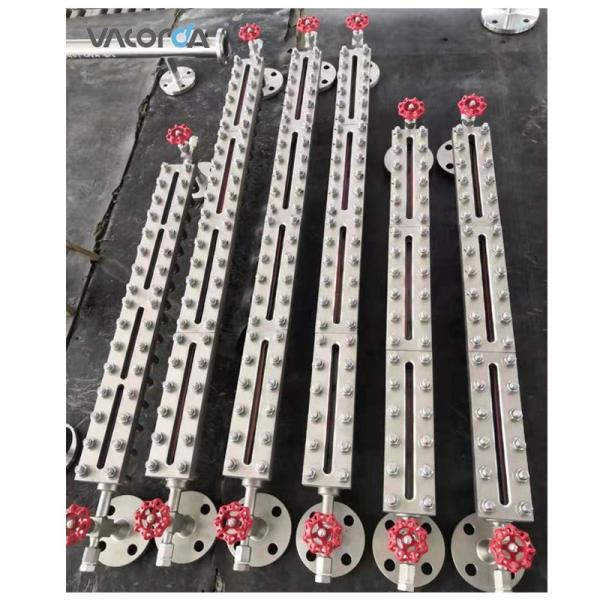

Detailed Images

Durable Transparent Type Level Gauge , Glass Tube Water Level IndicatorDurable Transparent Type Level Gauge , Glass Tube Water Level Indicator

Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator

Durable Transparent Type Level Gauge , Glass Tube Water Level Indicator

Durable Transparent Type Level Gauge , Glass Tube Water Level IndicatorDurable Transparent Type Level Gauge , Glass Tube Water Level IndicatorDurable Transparent Type Level Gauge , Glass Tube Water Level Indicator
